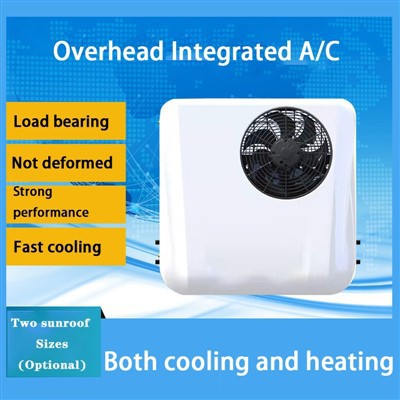

12V 24V EV Air Conditioner

If you're looking for the 12v 24v ev air conditioner, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.



12V 24V EV Air Conditioner



Product Features:

1 ) 12V, 24V products are suitable for light trucks, trucks, saloon cars, construction machinery and other vehicles with small skylight openings.
2)48-72V products, suitable for saloons, new energy electric vehicles, elderly scooters, electric sightseeing vehicles, enclosed electric tricycles, electri forklifts, electric sweeper and other battery powered small vehicles.
3)Vehicles with sunroof can be installed without damage, without drilling, without damage to the interior, can be restored to the original car at any time.
4)Air conditioning internal standardized vehicle grade design, modular layout, stable performance.
5)The whole aircraft high strength material, bearing load without deformation, environmental protection and light, high temperature resistance and anti-aging.





12V Product Parameters

Power	300-800w	Rated voltage	12v
Cooling capacity	600-2000w	Battery requirements	≥150A
Rated current	50A	Refrigerant	R-134a
Maximum current	80A	Electronic fan air volume	2000M3/h



24V Product Parameters

Power	500-1000w	Rated voltage	24v
Cooling capacity	2600w	Battery requirements	≥100A
Rated current	35A	Refrigerant	R-134a
Maximum current	50A	Electronic fan air volume	2000M3/h



48-72V Product Parameters

Input voltage	DC43V-DC86V	Minimum installation size	400mm*200mm
Power	800W	Heating power	1200W
Refrigerating capacity	2200W	Electronic fan	120W
Blower	400m3/h	Number of air outlets	3 pieces
Weight	20kg	External machine dimensions	700*700*149mm









1. Please confirm whether the battery and generator match before installation:

12V air conditioner requires battery ≥200A and generator ≥100A;

24V air conditioner requires battery ≥150A and generator ≥80A;

48-72V air conditioner recommends battery ≥80A.
2. It is recommended to clean the condenser regularly to prevent serious dust accumulation and affect the cooling effect.
3. The refrigerant has been added to this product before leaving the factory, and there is no need to add it repeatedly.
4. If it is not used for a long time, be sure to cut off the power supply and disconnect the power cord from the battery.



(1) The lowest temperature that can be set for refrigeration is 3-30℃ (this is the temperature of the outlet); The maximum heating temperature can be set at 70℃ (this is the air outlet temperature).
(2) When the temperature of the air outlet is lower than the set temperature, the refrigeration mode will not start. Heating is not restricted.
(3) Air volume 5 gears can be adjusted.
(4) Mode key can switch between refrigeration (snowflake sign) and heating mode (small sun sign). In heating mode, if the setting temperature is higher than the temperature displayed on the panel, heating will be started; otherwise, it will not be started.
(5) Press the temperature up and down key to adjust the temperature, and the wind speed up and down key to adjust the wind speed.
(6) The default shutdown state is when the machine is powered on by default. The default cooling mode is when the machine is powered on for the first time. The default medium speed is when the machine is powered on again.
(7) In the cooling mode, only when the temperature of the detected air outlet is two degrees higher than the set temperature, the external fan and compressor will start to work successively;
(8) Under pressure and overpressure protection, internal and external
machine and compressor will stop working, troubleshooting, need to shut down and restart can be restored to normal.
