PTC Air Heater











Origin	Hebei, China
Certifications	IATF16949, CE, ISO14001, etc.
Price	Negotiable
Material	Metal + Plastic
Voltage	150-650V, customization according to local needs
Payment	T/T, L/C
Delivery Date	Negotiable
Packaging	Export standard
Market	Asia/South America/Europe/North America
Warranty	1 year
Minimum Order Quantity	1 set





The typical structure of a PTC air heater includes the following:

PTC ceramic element: serves as the core heat source.

Aluminum alloy heat sink: increases heat dissipation area and improves heat exchange efficiency.

Insulation layer: ensures electrical safety and prevents leakage.

Casing and mounting hardware: protects the PTC element and facilitates installation.

Electrical control interface: supports hardwired control, PWM regulation, CAN bus control, and other methods to meet the intelligent needs of different application scenarios.





⚫ PTC protection rating IP67, equipped with a breather valve to effectively prevent internal chip breakdown;

⚫ Power degradation less than 5% after long-term aging;

⚫ Built-in two-stage thermostat to prevent PTC dry burning;

⚫ PTC cold-state surge current no more than 2.5 times the rated current; · Product corrosion resistance meets the 720-hour neutral salt spray test;

⚫ Plastic components meet the requirements of GB/T 2408 "Determination of Burning Properties of Plastics - Horizontal and Vertical Methods" for vertical burning (V-0) and horizontal burning (HB).





PTC air heaters are mainly used for winter cab heating and electric vehicle windshield defogging. However, the popularity of PTC air heaters in electric vehicles is not very high.

PTC convection air heaters are very suitable for use in electric buses. The PTC air heaters used in electric buses use convection heating, can use DC 450V-700V voltage, and the maximum heating power of the heater is 5000-8000W.





The working principle of electric air heaters is based on resistance heating technology. Here is its basic working process:

Conversion of electrical energy to heat energy: When the current passes through the resistance element (for example, PTC element or thermal film element) in the electric air heater, the electrical energy is converted into heat energy.

Air heating: The fan blows air through the heating element, and the air enters the car cabin after being heated, raising the temperature inside the car.

Temperature control system: The heater has a built-in temperature control system to ensure that the output air temperature is within a safe and comfortable range. It can be automatically adjusted according to the temperature inside the car and the set temperature.





PTC air heaters are categorized by control method.

Hardwire Control (Relay/Switch Control)

• Heater start and stop are controlled via a relay or mechanical switch.

Low cost, suitable for low-end vehicles or auxiliary defrost systems.

• PWM Control

Power output is adjusted using a pulse-width modulation signal, enabling multiple levels or continuous regulation.

Power consumption is more precise, resulting in improved thermal comfort.

• CAN Bus Control

Connects to the vehicle control unit (VCU) to adjust heating power in real time based on battery status, ambient temperature, and energy consumption strategies.

Commonly used in mid- to high-end new energy passenger vehicles and commercial vehicles, this type of control represents a trend toward intelligent operation.





• Cabin heating applications:

Installed in the vehicle's heating ducts or air conditioning system, it quickly heats the air entering the cabin.
Its primary function is to provide cabin heating in winter and enhance passenger comfort.

• For front windshield defrosting and demisting:

Installed in the air conditioning vent or duct system, it blows hot air toward the windshield, rapidly defrosting and defrosting the windshield.
Ensuring driving safety, it is a standard winter feature for new energy vehicles.

• For battery compartment/component compartment air heating:

It is used for thermal management of battery packs, electronic control units (ECUs), and power motor control systems.
Maintaining the operating efficiency of key components in low-temperature environments





1. We have over 30 years of experience in export services.

2. We offer OEM customization services, producing and processing products according to your drawings and requirements.

3. As part of the NF Group, we have five factories and an international trade company, capable of meeting 90% of your EV product category needs.

4. We have a professional R&D and quality control team to strictly ensure product quality meets your requirements.

5. We provide the best services tailored to your needs, from production, processing to packaging, etc.

6. Our products are competitively priced, of high quality, and delivered on time.

7. We offer a one-stop service, providing comprehensive solutions for your electric vehicle heating and cooling systems.





In 1993, Hebei Nanfeng company was established.

In 2000, independently developed the first heater.

In 2005, Hebei Nanfeng Group was established, and Beijing Golden nanfeng International Trade Co., Ltd. Was established in Beijing.

In 2006, an automobile electrical company and a metal products factory were established.

In 2009, a modified vehicle company and a painting surface treatment company were established.

In 2015, a joint venture with German webasto was established.

In 2019, the Chinese side acquired all the foreign shares and set up an additional R&D center in Beijing.

In 2020, carry out research and development of air-conditioning system solutions.



Various development confirmation tests and type tests can be carried out in our company, which can ensure product quality at all stages. We have our own EMC laboratory and can conduct EMC tests by ourselves, only a few factories in China have their own EMC laboratories.





Our PTC heaters are CE certified and comply with relevant EU regulations and standards. They offer safety, environmental protection, and performance guarantees, allowing them to be freely sold and used in the EU market.

Our products are compliant with IATF16949 and ISO14001 certifications.

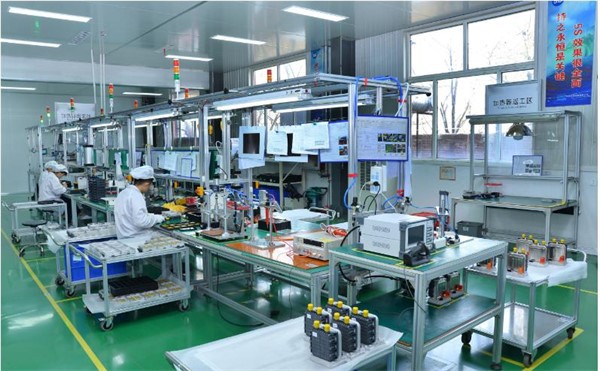

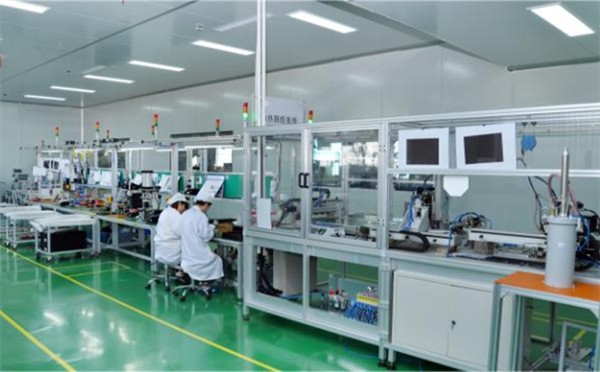

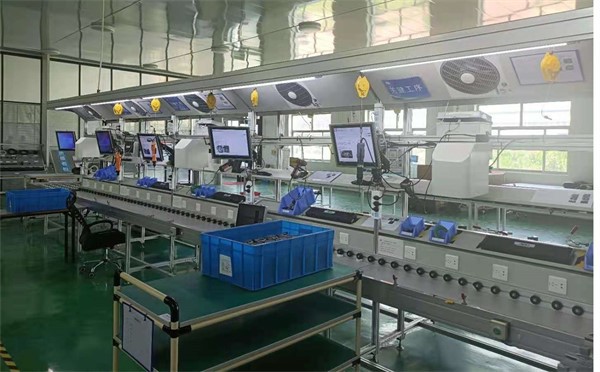

Our PTC heater products have an operation line, each step has an operation instruction book, and the product production follows IATF16949



NF Group regularly participates in domestic and international professional exhibitions annually. Through these exhibitions, we showcase our products, expand our market reach, and connect with customers and partners, creating favorable conditions for the company's international expansion and sustainable development.

Please look forward to our upcoming exhibitions in Malaysia and India in the second half of 2025.











As one of the professional ptc air heater manufacturers and suppliers in China, we brings you the best quality ptc air heater from our professional factory. Welcome to wholesale the ptc air heater with our seller, and also welcome to check the quotation with us.
