PTC Air Heater For New Energy Cars video

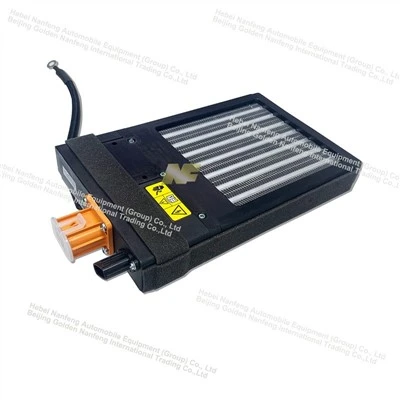

PTC Air Heater For New Energy Cars

High voltage PTC Air Heater is the core thermal management component for new energy vehicles, adopting Positive Temperature Coefficient ceramic heating technology. It delivers rapid cabin heating, windshield defrost & defog, and supports battery preconditioning. Built-in self-temperature-limiting function prevents overheating, with compact modular structure, CAN communication and multi-layer safety protection, widely applied in passenger EV, electric bus & commercial new energy vehicles.

Description



PTC Air Heater For New Energy Cars

Products Description

product-800-800

High voltage PTC Air Heater is the core thermal management component for new energy vehicles, adopting Positive Temperature Coefficient ceramic heating technology. It delivers rapid cabin heating, windshield defrost & defog, and supports battery preconditioning. Built-in self-temperature-limiting function prevents overheating, with compact modular structure, CAN communication and multi-layer safety protection, widely applied in passenger EV, electric bus & commercial new energy vehicles.

Unlike internal combustion vehicles that use engine waste heat, electric vehicles require independent heating sources. Our PTC Air Heater directly heats air flow inside HVAC duct, converting electric energy into thermal energy efficiently.



The PTC ceramic element features unique self-regulating property: its resistance rises sharply once temperature exceeds Curie point, automatically reducing power output and avoiding overheating. Integrated controller + heating core all-in-one design simplifies installation and vehicle integration, stable working under harsh low-temperature environments.



Working Principle



PTC air conditioner



When high voltage is applied, PTC ceramic sheets generate heat, heat transfers to aluminum heat dissipation fins. Air blown by HVAC blower flows through the fins and absorbs heat, forming warm air to cabin / battery compartment. The PTC element automatically adjusts power according to surface temperature, realizing passive constant temperature without extra complex thermostat.



Products Parameters



Rated voltage 333V
Power 3.5KW
Wind speed Through 4.5m/s
Withstand voltage 1800V/1min/5mA
Insulation resistance ≥500MΩ
Cooling Medium Air
Housing Material Aluminum alloy + plastic
Communication method CAN



Products Advantages



product-2048-2048



✅ Self-temperature regulation & High Safety PTC ceramic auto limits temperature inherently. Even under no-airflow condition, it won't overheat. Equipped with overvoltage, undervoltage, overcurrent, short-circuit and high-temperature cut-off protection, meets automotive high-voltage safety standards.

✅ Fast Heating Response Quick warm-up after power on, rapidly supply hot air for passenger cabin, clear windshield frost and fog, guarantee driving visibility in cold winter.

✅ Compact & Lightweight Modular Design Aluminum heat sink with optimized fin structure for high heat exchange efficiency. Small footprint, standard high-voltage & low-voltage connectors, easy to mount into HVAC air channel, saving vehicle layout space.

✅ Reliable Wide Temperature Operation Stable performance from -30℃ to +85℃ ambient environment, supports cold start in frigid regions, helps preheat battery pack to maintain battery working temperature, protect battery life and improve low-temperature driving range.

✅ Precise CAN Communication Control Supports CAN bus communication, heating power adjustable in multiple stages, closed-loop temperature control to match vehicle thermal management strategy.

✅ Customization Available Customizable rated voltage, heating power, dimension, connector and communication protocol for passenger cars, electric buses, light commercial EVs.



These features make PTC heaters ideal for enhancing comfort and efficiency in electric vehicles.

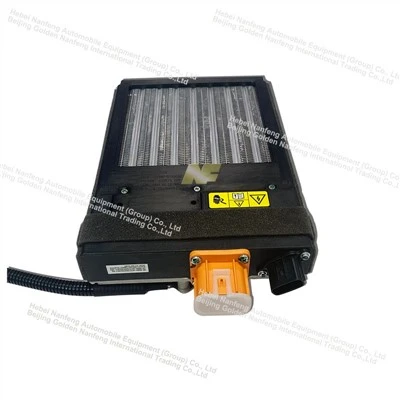

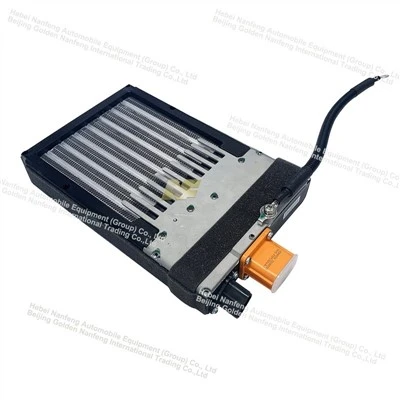

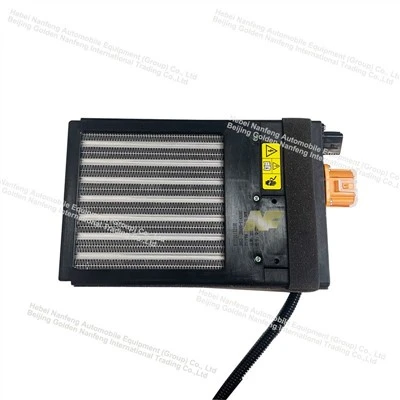

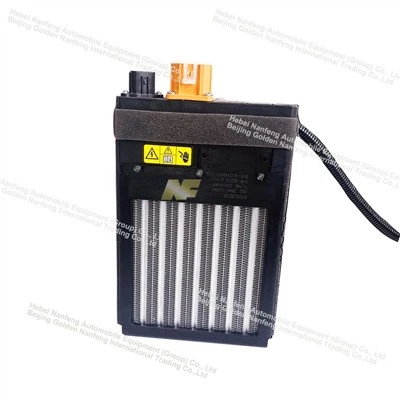

Products pictures

ptc heater

PTC air conditioner

ptc air heater

PTC ceramic air heater

PTC heating element

HEV Ptc heater

Products applications



product-800-800

This high-performance PTC air heater is a universal thermal management component for new energy vehicles, covering multiple core usage scenarios. It provides stable and comfortable cabin heating for electric vehicles and plug-in hybrid vehicles in cold seasons, effectively removes windshield frost and fog to ensure driving safety, and performs precise preheating and constant temperature maintenance for power battery packs to avoid low-temperature battery attenuation and extend battery service life. It is widely applied in new energy passenger cars, electric buses, new energy logistics vehicles, electric trucks and various light and medium commercial new energy vehicles, becoming an essential core component of vehicle thermal management systems.
Our Company



Nanfeng Company



NF Group (Hebei Nanfeng Automobile Equipment Group Co., Ltd.) ranks among China's leading manufacturers of automotive heating and cooling equipment and is an appointed supplier for Chinese military vehicles. We specialize in new energy vehicle thermal management components including PTC air heaters, high voltage coolant heaters, electronic water pumps and BTMS solutions.



Full-process quality control is implemented throughout manufacturing, and comprehensive final inspection will be conducted before packaging. Back in 2006, we obtained IATF 16949 quality management system certification.



Once your order is confirmed, we will track the entire production progress and keep you updated regularly, arranging goods collection, container loading and providing cargo transportation tracking information for you. Should you be interested in any of our new energy auto parts, have customized project requirements or purchase intentions, please share your specifications with us. Our professional team will spare no effort to support you.



nf exhibition.png



Products Certification



You can view the CE certification and product model information of our PTC air heater in the picture below.

ptc air heater CE

ptc air heater certification

FAQ



Q1: What is the difference between PTC air heater and PTC water heater?

A: PTC air heater directly heats air for HVAC duct, fast response and simple structure. PTC water heater heats coolant for liquid circulation thermal management.



Q2: Can it work in extremely cold area?

A: Yes, it supports cold start at -30℃, works steadily for cabin heating and battery preheating.



Q3: Is customization acceptable?

A: Yes, we can adjust power, voltage, size, connector and control logic according to your vehicle project requirements.



Q4: MOQ & Lead time?

A: Sample available for testing; mass production lead time depends on quantity.
