Diesel Caravan Air And Water Combi Heater



Diesel caravan air and water combi heater



1、Product Introduction





The NF Campervan Motorhome Truma Combi 4E boiler and heater is a popular choice for heating water and living space in your motorhome, motorhome or caravan. Combination heaters are energy efficient and quiet, and provide high performance in an extremely compact and lightweight package.



2、Product Parameter

Rated Voltage	DC12V
Operating Voltage Range	DC10.5V～16V
Short-term Maximum Power Consumption	8-10A
Average Power Consumption	1.8-4A
Fuel type	diesel/petrol
Gas Heat Power (W)	2000 4000
Fuel Consumption (g/h)	240/270
Gas Pressure	30mbar
Warm Air Delivery Volume m3/h	287max
Water Tank Capacity	10L
Maximum Pressure of Water Pump	2.8bar
Maximum Pressure of System	4.5bar
Rated Electric Supply Voltage	220V/110V
Electrical Heating Power	900W 1800W
Electrical Power Dissipation	3.9A/7.8A 7.8A/15.6A
Working (Environment) Temperature	-25℃～+80℃
Weight (kg)	15.6kg

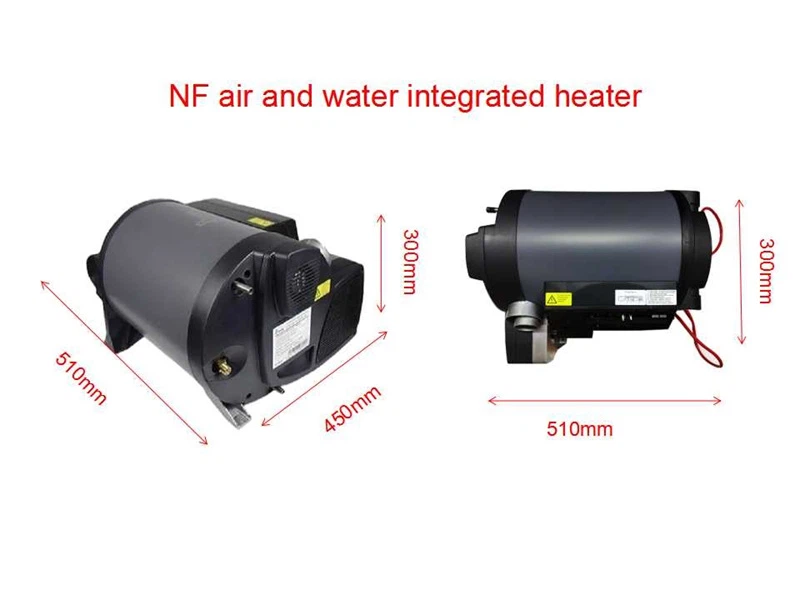

Dimensions (mm)	510×450×300
Working Altitude	≤1500m

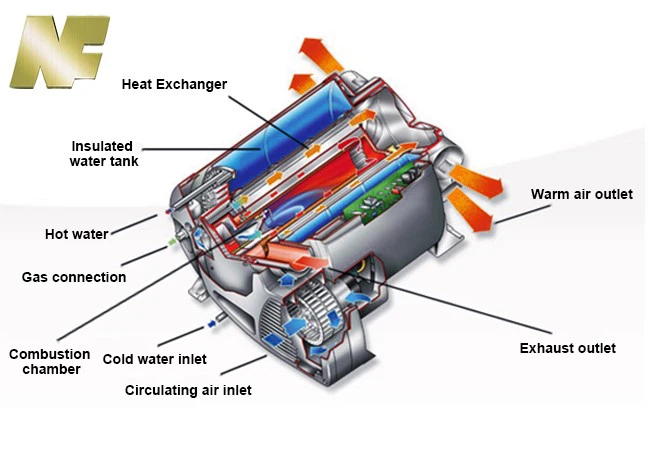

3、Product Structure





4、Operating Precautions
Heaters are not allowed to operate during refueling or in enclosed spaces (enclosed parking lots, repair shops or ferry compartments). Check regularly whether the intake and exhaust pipes are in good condition and the fixing is reliable, especially after a trip. Also check the fixing of intake and exhaust pipes and smoke caps.



When black smoke is found, the company's authorized professionals are requested to carry out the inspection. Ensure that the exhaust pipe and intake pipe at the smoke exhaust cap are free from blockages such as snow, ice and leaves. Warm air outlet and circulating air inlet are unobstructed to avoid overheating of heater. In the case of overheating, the overheating switch will immediately cut off the fuel supply.



5、Product Certification



6、Product Application





7、Our Service
1、Provide the technical design and solutions;
2、Tele-technical consulting and services;
3、Other special technical service according to client’s requirements.
4、Competitive Price (Factory direct price) with our good service.
5、Different designs are available according to customer requests.
6、Excellent quality testing equipment, 100% inspection on critical .
