Air-cooled Oil-free Scroll Air Compressor

If you're looking for the air-cooled oil-free scroll air compressor, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.

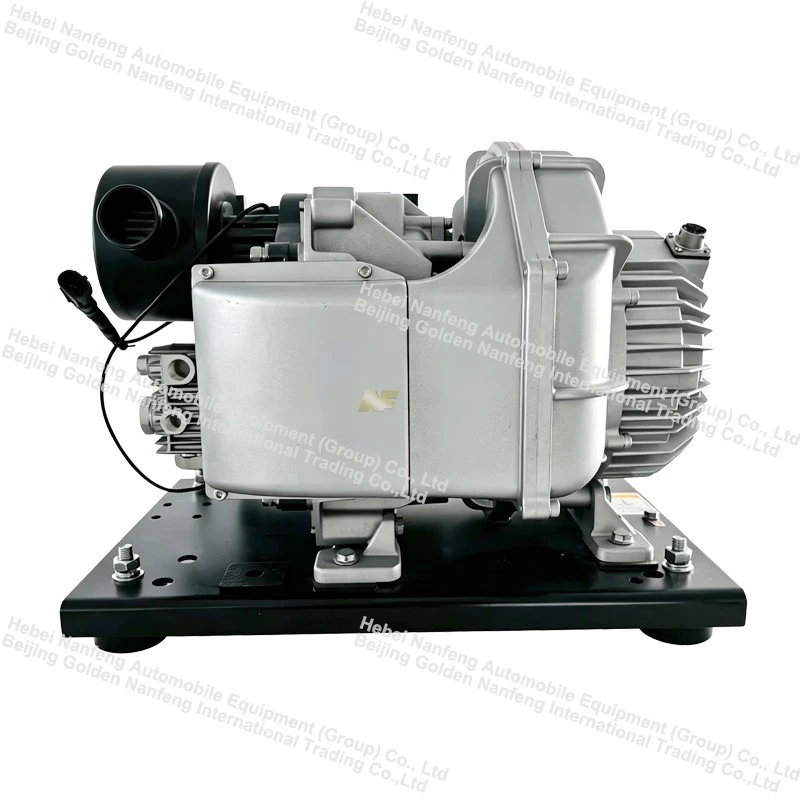

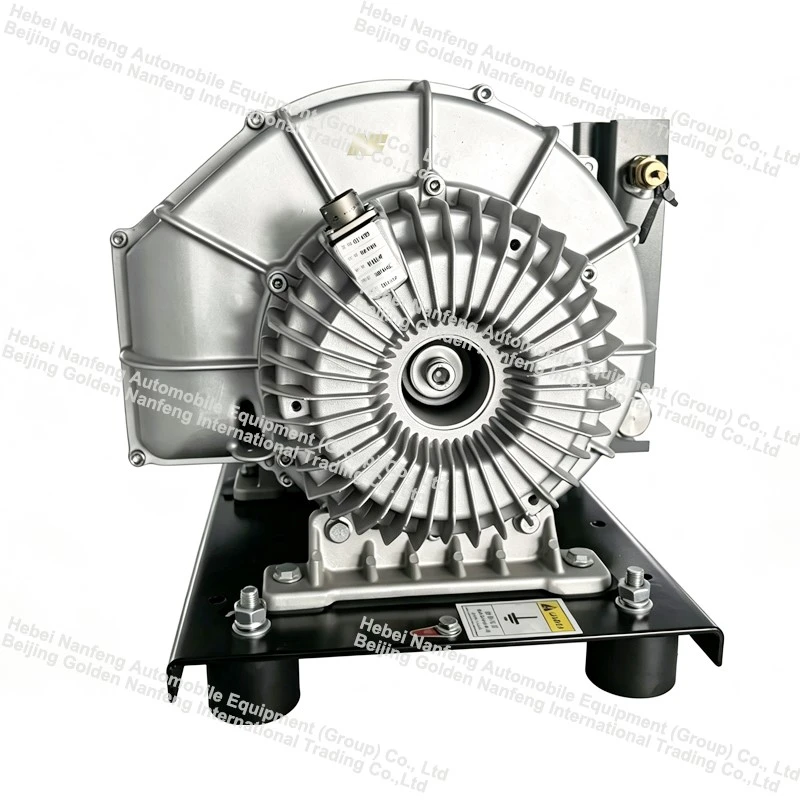

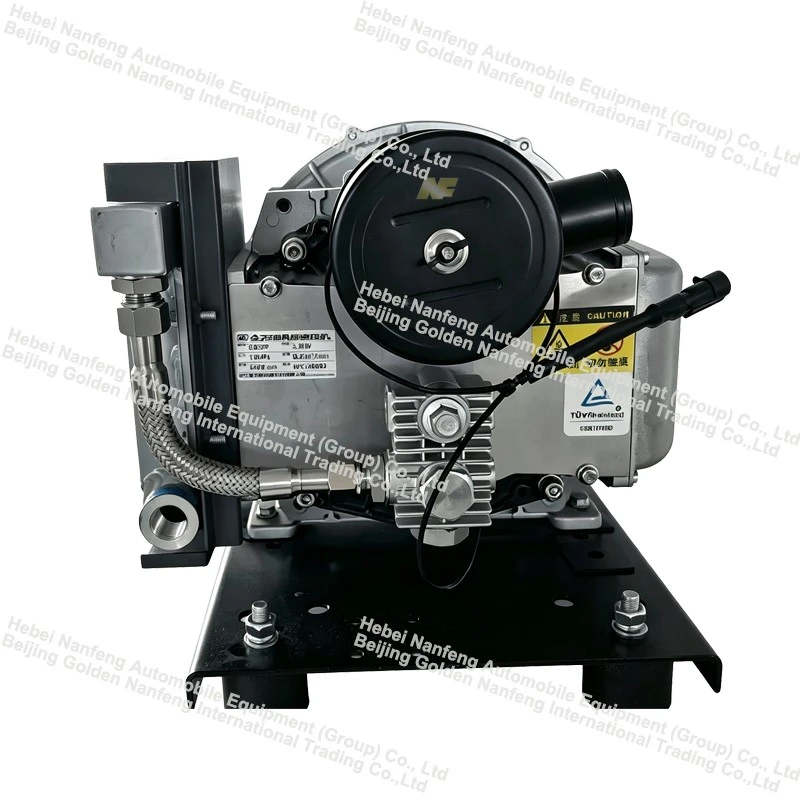

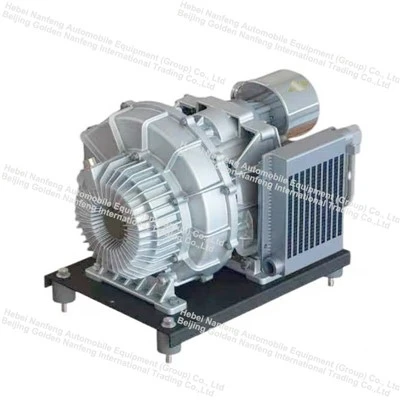

Air-cooled oil-free scroll air compressor



NF Air-cooled oil-free scroll air compressor adopts advanced scroll compression technology with air cooling design. The fixed scroll and orbiting scroll mesh closely without metal contact, using special self-lubricating coating to realize 100% oil-free compression.



Equipped with independent air cooling system, it requires no cooling water and features flexible installation. With fewer moving parts, the unit runs smoothly with low noise and vibration. Low maintenance cost, long service life and modular expandable design make it ideal air source equipment for new energy vehicle,medical, pharmaceutical, electronic, food and laboratory industries with strict air purity requirements.







Model	NFG03ZP
Motor type	IPMSM
Rated motor power (kW)	3
Rated voltage (V)	AC380
Rated current (A)	6.5
Frequency (Hz)	225
Rated speed (rpm)	2700
Maximum discharge pressure (MPa)	1.05
Nominal discharge capacity (L/min)	240(1.0MPa)
Discharge temperature (°C)	≤80
Motor poles	10
Back-EMF constant (V/(rad/s))	358.7
Stator winding resistance (Ω)	0.4
Ld (mH)	4.97
Lq (mH)	5.96
Sound pressure level (dB(A))	≤72
Motor phases	3
Motor overload factor	1.5 (≤10S)
Motor insulation resistance	≥20M Ω
Motor insulation class	F
Motor protection class	Ip67
Cooling method	风冷
Ambient operating temperature	-40~55 ℃
Discharge outlet thread	M22*1.5

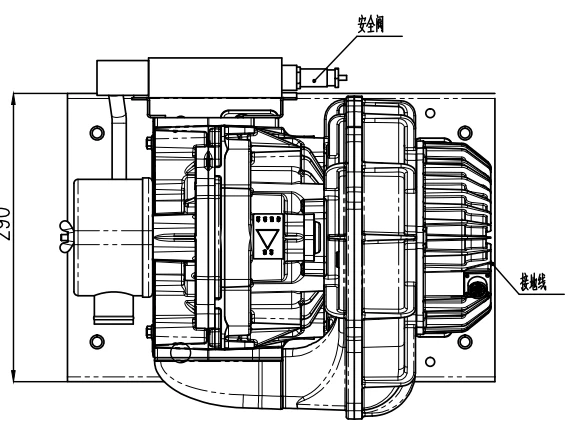

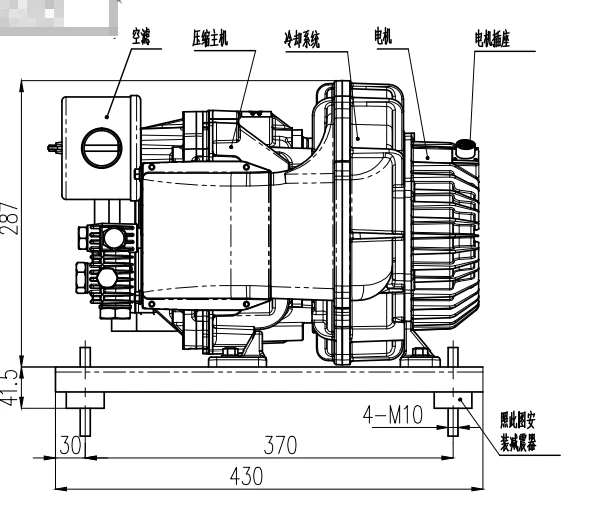

Overall dimensions (L × W × H) (mm)	430*363*328
Mounting footprint (L × W) (mm)	370*210 (M10)
Weight (kg)	29









• 100% oil-free compressed air, zero oil contamination
• Air-cooled design, independent of external cooling water
• Low vibration & ultra-low noise, stable operation
• High efficiency scroll structure, low energy consumption
• Compact layout, small footprint, easy installation & maintenance
• Long service life, fewer wearing parts, low failure rate
• Clean gas output, compliant with food, pharmaceutical & electronic industry standards





Beijing Golden Nanfeng International Trading Co., Ltd., an affiliate of Nanfeng Group, is a professional automotive thermal management supplier with over 21 years of industry experience. We are committed to delivering one-stop, high-quality climate control solutions for both internal combustion engine (ICE) vehicles and new energy electric vehicles (EVs).



We stand out for our diversified product lineup and strong comprehensive service capability. Our product range covers gasoline & diesel parking heaters, high-voltage coolant PTC heaters, electronic water pumps, battery thermal management systems (BTMS), Electric Power Steering Pump For Electric Bus, defrosters, radiators, oil-free electric air compressors, Electric Air Conditioning Compressors, parking air conditioners and tent heaters, which work together to deliver superior riding comfort under all driving conditions.



Equipped with more than 100 sets of advanced testing equipment and a dedicated EMC laboratory, we maintain stringent internal quality control systems and employ a professional engineering team to guarantee outstanding product reliability throughout the whole production process. All our products comply with European safety and environmental standards, and our large-scale production capacity enables us to steadily fulfill global market orders.



We have obtained authoritative certifications including IATF 16949, CE and E-mark. Our products are exported to more than 40 countries across Asia, Europe, the Americas and Oceania, and we have built long-term trustworthy partnerships with worldwide auto OEMs and distributors.

Customer-centricity lies at the heart of our corporate philosophy. We always prioritize clients' customized standards and practical demands. We sincerely invite global automotive OEMs and distributors to establish long-term win-win cooperation with us.





Q1: What does "100% oil-free" mean?
A1: The compression cavity uses water-lubricated or dry scroll structure without lubricating oil. The exhaust air contains no oil mist or oil residues, which meets ISO 8573-1 Class 0 oil-free air standard.



Q2:Will strong vibration affect surrounding precision equipment?
A2: Equipped with high-density shock absorbers at the base. Vibration amplitude is tiny, and it will not interfere with precision instruments and automated production lines.



Q3:What are daily routine maintenance items?
A3: Regular replacement of air filter and water filter (water-lubricated type); no piston ring, valve plate and other frequent consumables replacement required. Maintenance cycle is long and operation cost is low.



Q4: How long is the warranty period?
A4: One-year whole-machine warranty, extended warranty for the scroll host is optional; global spare parts supply and remote technical guidance are provided.



Q5: Which industries are this compressor suitable for?
A5: New energy vehicle, Food & beverage, pharmaceutical, precision electronics, laboratory, medical equipment, textile, lithium battery, cosmetic production and other industries with strict air purity requirements.



Q6: Why does the unit overheat and alarm?
A6: ① Blocked air filter or cooling air duct; ② Excessively high ambient temperature; ③ Fan failure. Clean filter & duct, improve ventilation or replace cooling fan to solve the problem.
