Oil-Free(Piston) Technology-Air Compressor video

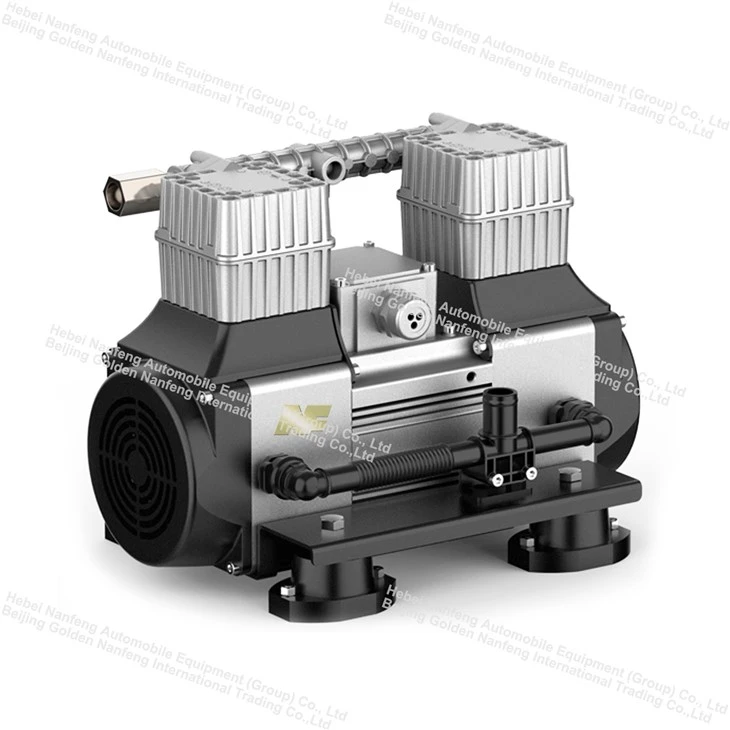

Oil-Free(Piston) Technology-Air Compressor

This compressor is designed to facilitate maintenance and be environmentally friendly;
HV series have two stable 24VDC fans with high speed to release the heat from of Oilfree Piston compressor - now they are widely used in Electrical bus, Electric trucks, Mini van, Dental care and Construction machinery and so on;
The cutting edges of Oilfree piston has more Long lasting working life than other similar compressor in the market;
Constantly working more than 18,000H;
100% Imported from Germany for Piston Head and O-ring seal, And even bearings;
IP67 protection level can make it working under the water;
Lower Maintenance needs,8000H SERIVCE FREE

Description



Oil-Free(Piston) Technology-Air compressor



Products Description



TV 1​

product-15-15
Model TV2-1.5 TV2-2.2 TV2-3.0 TV2-4.0
F.A.D(m³/min) 0.16 0.20 0.28 0.38
Working Pressure(bar) 10 10 10 10
Max.Pressure(bar) 12 12 12 12
Motor Type Sync. Async. Sync. Async. Sync. Async. Sync. Async.
Rated Speed(RPM) 1500 1435 1500 1435 1500 1435 1500 1445
Rated Power(kw) 1.5 1.5 2.2 2.2 3.0 3.0 4.0 4.0
Peak Power(kw) 3.0 - 4.4 - 6.0 - 8.0 -
Rated Voltage(V) 380V/220V 380V 380V/220V 380V 380V/220V 380V 380V/220V 380V
Rated Current(Amp) 03.10/06.00 3.80 04.60/08.00 5.10 06.00/10.40 6.70 08.40/14.5 8.50
Max. Current(Amp) 06.20/12.00 - 09.20/16.00 - 12.00/20.80 - 16.80/29.00 -
Resistance(20℃) 7.800Ω - 3.217Ω - 1.746Ω - 1.210Ω -
Rated Frequency(Hz) 100 50 75 50 75 50 75 50
Rated Torque(Nm) 09.55 - 14.00 - 19.10 - 25.50 -
Connection Y/△ Y Y/△ Y Y/△ Y Y/△ Y
Protection Level IP67 IP67 IP67 IP67
Air Outlet Connector M22x1.5 M22x1.5 M22x1.5 M22x1.5
Ambient Temp.(℃) 65 65 65 65
Vibration(mm/s) ≤28 ≤28 ≤28 ≤28



An electric air compressor, also known as an electric air compressor, is a device that uses an electric motor to compress air into a high-pressure state, storing it in an air tank to provide a power source. Simply put, it's a "power source" that produces compressed air.





Its core working principle is: the electric motor drives the compression mechanism (such as a piston or screw) to draw in air from the environment, compressing its volume in a sealed space, thereby increasing the air's pressure and density. Finally, the high-pressure air is delivered to an air tank for storage and later use.



Products parameters

2025-12-31 163348



Products Technology Principles



TV 2



The oil-free piston compressor's cutting-edge design boasts a longer service life than other comparable compressors on the market;

Continuous operating time exceeds 18,000 hours.

Piston heads, O-ring seals, and bearings are 100% imported from Germany.

IP67 protection rating enables underwater operation.

Lower maintenance requirements with 8,000 hours of maintenance-free operation.



Products advantage

Advantages:



Clean and Environmentally Friendly: Compressed air itself is non-toxic and odorless, and emissions do not pollute the environment (compared to hydraulic oil leaks).



Easy to Transmit: Power can be easily transmitted over long distances via pipelines.

Safe and Reliable: No risk of electric sparks; safe to operate in harsh environments such as flammable, explosive, dusty, and humid conditions.



Simple Operation: Starting, stopping, and control are relatively simple.

Overload Protection: Actuators (such as pneumatic tools) can be jammed without damaging the motor.

TV 3





Company advantage





5kw-btms06



We offer the best price to meet your budget.



Our professional team offers you a one-stop service.



We have first-class production lines and strict quality control.



Our company specializes in automotive thermal management solutions.







Company certificate



5kw-btms12





Products application

1. Air supply for pneumatic braking systems in new energy commercial vehicles (widely used in battery-electric buses, heavy-duty trucks, sanitation vehicles, and heavy-duty logistics trucks).


2. Air supply for hydrogen fuel cell stacks (the "lungs" of the fuel cell; involves the highest technical barriers).


3. Air supply for air suspension systems (high-end new energy passenger and commercial vehicles).

Oil-free-compressors06
