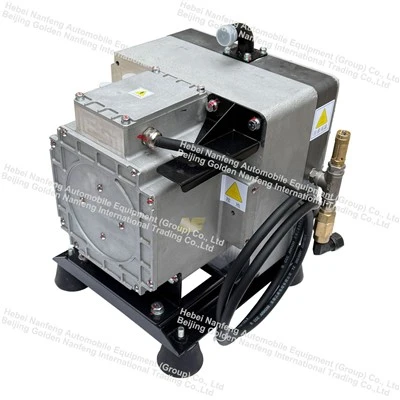

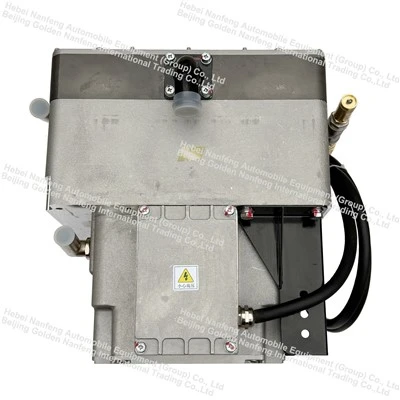

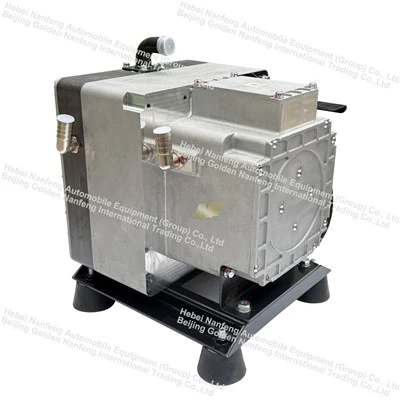

Scroll-type Oil-free Air Compressor

If you're looking for the scroll-type oil-free air compressor, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.



Scroll-type oil-free air compressor





Adopting an advanced oil-free scroll structure, our scroll-type oil-free air compressor provides Class 0 certified oil-free air to meet strict international standards. It offers outstanding energy efficiency, ultra-low noise, and stable performance, ensuring continuous and reliable air supply. The maintenance-free design and durable construction lower total operating costs. Compact and easy to install, it is the optimal choice for precision industries such as medical, food, electronics and laboratories.







The compression medium	Air medium
Working pressure	Suction pressure	Atmospheric pressure
	Discharge pressure	0~12.5Mpa
	Power to flow ratio	≤12(including motor and controller)
Temperature	Temperature	-40℃~+65℃
	Suction temperature	-40℃~+65℃
	Discharge temperature	≤90℃+Ambient temperature(Water cooling)



Technical information on scroll-type oil-free air compressor



Compressor style	Oil-free scroll air compressor
The compression medium	Air
Normal speed	1800-3200rpm
Power supply voltage	380VAC Three-phase
Compressor cocoling method	Forced water cooling
Weight	44kg(including motor and controller)
Shell	Electroplating on aluminum parts
Installation method	Bolt connection
Installation size	Drawing 4 - M10 mounting position and motor metal waterproof connector
Outline dimension	334*300*354
Suction pipe inner size	Outer diameter Φ25
Exhaust pipe inner size	Φ25 M22*1.5 Compression fitting
Hydraulic pressure of coolant	＜1bar
External coolant flow rate	≥10L/min
Coolant inlet temperature	≤65℃



Compression performance



Speed(rpm)	3200
Rated flow (L/min)	≥480
Applied power(KW)	≤5.8(including motor and controller)
Power to flow ratio	≤12(including motor and controller)



Noise level



Speed(rpm)	3200
Noise level,dB(A)	≤65



Vibration severity



Speed(rpm)	3200
Vibration severity(mm/s)	≤7.1



Scroll-type oil-free Air Compressor Performance Curve





The Scroll-type oil-free air compressor operates using two interlocking spiral components: a fixed scroll and an orbiting scroll. As the orbiting scroll performs eccentric rotation, air is drawn into the outer compression chambers. The volume of these chambers gradually decreases, compressing the air inward toward the center.

No lubricating oil is used throughout the compression process, ensuring 100% oil-free clean air. With stable rotation, minimal vibration and continuous compression, it delivers an efficient, reliable and pollution-free air supply.





The air compressor should be stored in a dry, well-ventilated indoor environment, strictly avoiding contact with corrosive, perishable, flammable, or chemical substances.



Collision is strictly prohibited. When in use, it should be placed upright to prevent tilting or inversion, which could lead to malfunctions and accidents.



To ensure safety and extend the machine's lifespan, the machine should be placed in a well-ventilated, clean, and cool location. The ambient temperature should be within the range of -40℃ to 60℃. Avoid using it in environments with polluted air, dust, or oily fuel fumes.



Before connecting to power, ensure the machine is switched off. Operate the machine according to the indicated direction. Voltage fluctuations are allowed within ±10%. For safety, never touch any components of the air compressor while it is operating.







Technical requirements for air intake and water inlet/outlet



1. The air intake is located on the back of the compressor body; see the product outline drawing for a detailed location diagram.
2. The external air filter must be placed in a cool, ventilated, and dry place.
3. The air filter's filtration accuracy is <2.5μm.
4. The air intake must draw in ambient temperature air; otherwise, it will affect the product's lifespan.







Hebei Nanfeng Automobile Equipment (Group) Co., Ltd. is a vertically integrated industrial group dedicated to the R&D, manufacturing and sales of electric vehicle thermal management systems. With 1 international trading subsidiary (Beijing Golden Nanfeng) and 5 advanced production bases, we maintain full-chain control over quality, cost efficiency and technological innovation.

Our 80,000 ㎡ headquarters and manufacturing campus is located in Wumaying Industrial Area, Nanpi County, Hebei. Our products are widely exported to Asia, Europe, North America and South America, serving global customers with reliable thermal solutions for electric buses and commercial vehicles.

We provide a complete portfolio: High Voltage Coolant Heaters, PTC Air Heaters, Water Pumps, HVAC Compressors, Battery Thermal Management Systems (BTMS), and Parking Heaters.

Committed to quality, innovation and customer success, Nanfeng strives to be a trusted global partner for electric vehicle thermal systems.




MOQ: 1 unit
Warranty: 12 months
Certifications: CE, ISO available
Customization: Voltage, frequency, logo and packaging accepted
Delivery: 7–15 working days for standard models
