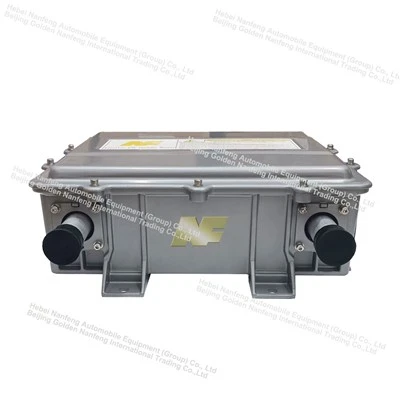

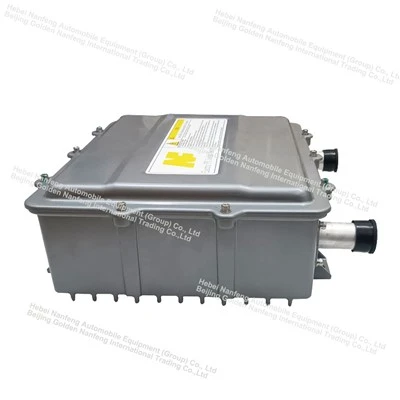

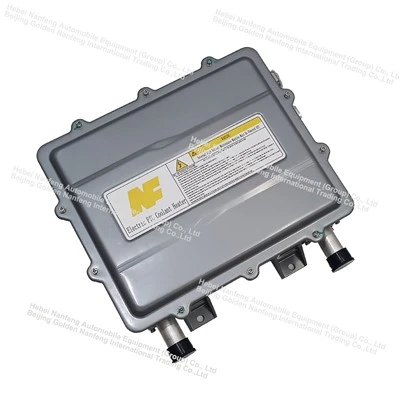

PTC Coolant Heater For New Energy Specialty Vehicles

If you're looking for the ptc coolant heater for new energy specialty vehicles, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.



PTC Coolant Heater for New Energy Specialty Vehicles

Heating a vehicle during the cold winter months is often a challenge. However, with technological advancements, high-power PTC electric heaters for new energy specialty vehicles have emerged, offering a new solution.



A PTC (Positive Temperature Coefficient) electric heater is a device made from ceramic materials. Its operating principle is simple yet efficient: when an electric current passes through the PTC material, its electrical resistance increases as the temperature rises, allowing it to self-regulate and prevent overheating. This characteristic has led to the widespread adoption of PTC electric heaters in new energy specialty vehicles.

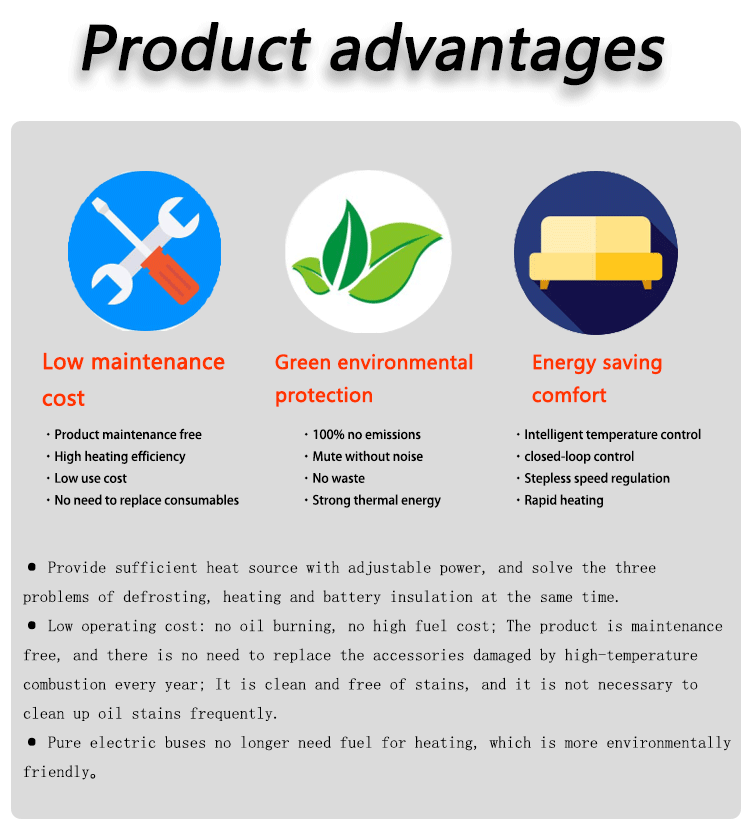

High Efficiency and Energy Savings

Compared to traditional heating systems, high-power PTC coolant heaters for new energy specialty vehicles offer superior energy efficiency. They provide rapid heating, reducing warm-up times and ensuring vehicles are ready for operation quickly in cold weather. This yields significant benefits in terms of improved operational efficiency, reduced energy waste, and lower operating costs.



Safety and Reliability

Another major advantage of PTC coolant heater is their safety. Thanks to the self-regulating nature of PTC materials, the risk of overheating is minimal even during prolonged operation, thereby significantly reducing fire hazards. Safety is paramount for specialty vehicles operating in demanding environments.



Application Areas

High-power PTC coolant heaters for new energy specialty vehicles have a wide range of applications. They deliver excellent performance in electric buses, sanitation vehicles, and specialized engineering vehicles alike. Particularly in cold regions, these heating systems ensure reliable vehicle operation under extreme weather conditions, providing a comfortable experience for both drivers and passengers.

In summary, high-power PTC coolant heaters for new energy specialty vehicles not only boost operational efficiency and enhance safety but also align with modern trends toward environmental protection and energy conservation. As technology continues to advance, there is every reason to believe that this product will play an increasingly important role in the future of transportation.



Parameter Category	Detailed Specification
Product Name	HVH Series High-Voltage Electric Coolant Heater
Size (L × W × H)	327 × 312.5 × 118.2 mm
Rated Power	15/20/25/30 kW (0-30 kW adjustable)
Rated Voltage	600 VDC
Coolant Ratio	50% Water + 50% Ethylene Glycol
Impulse Current	≤ 65 A
High Voltage Operating Range	400-800 VDC
Low Voltage Control Range	8-32 VDC
Control Type	CAN / Gear Control
Insulation Resistance	≥ 500MΩ/60S @ 1000VDC
Electrical Performance	≤ 15mA/60s @ 2850VAC
IP Rating	IP67 / IP6K9K
Weight	9.2 kg









We provide diversified international logistics solutions. Available transportation modes cover sea freight, air freight and railway freight. We can also arrange shipments via mainstream international couriers: DHL, TNT, UPS, FedEx and EMS to satisfy different lead time and budget demands.
