Automotive High Voltage Coolant Heater
NF automotive high voltage coolant heater has the following properties:Compliance with international vehicle standards; Almost 100% heat output;seamlessly, Quickly and precisely controllable; No inrush current or peaks; Rapid performance direct; Fast heat transfer.
Description
Automotive High Voltage Coolant Heater
Product Description
Product characteristic
Life cycle of 8 years or 200,000 kilometers;
The accumulated heating time in the life cycle can reach up to 8000 hours;
In the power-on state, the working time of the heater can reach up to 10,000 hours (Communication is the working state);
Up to 50,000 power cycles;
The heater can be connected to constant electricity at low voltage during the whole life cycle. (Usually ,when the battery is not depleted; the heater will go into sleep mode after the car is turned off);
Provide high-voltage power to the heater when starting the vehicle heating mode;
The heater can be arranged in the engine room, but it cannot be placed within 75mm of the parts that continuously generate heat and the temperature exceeds 120℃.
Product Parameter
| Use coolant temperature | -40℃-110℃ |
| Rated voltage | 350VDC(voltage range 250-450VDC) |
| Rated Power | 7000(1±10%）W&10L/min &inlet water temperature 40℃±2℃ |
| Heater control voltage | 12VDC(voltage range 9-16VDC) |
| High voltage woking voltage/V (DC) | 450-750V |
| Control signal | CAN |
| Operating environment humidity | 0%-95%RH |
Electrical interface : Holder connector
High voltage connector : Amphenol HVC2P28MV104,
Wire harness connector: Amphenol HVC2P28FS104
Low voltage connector : 320Q60A1-LVC-4 (Haichen A02-ECC),
Wire harness connector: Sumitomo 6189-1083.
Product details
Certification
Packing

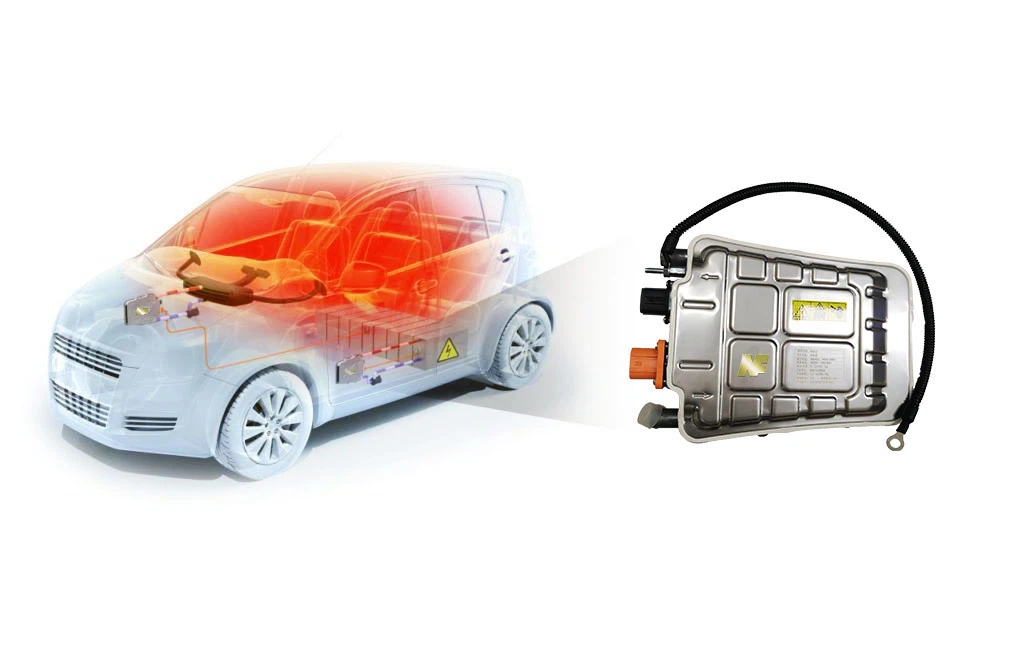

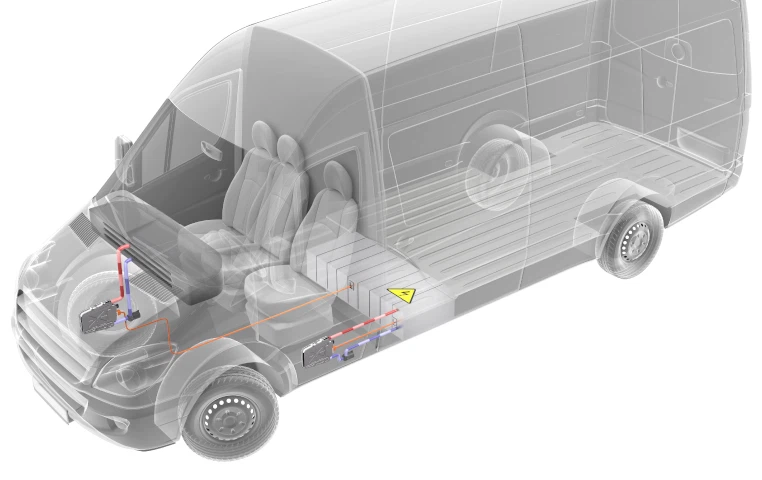

Application
The heater is mainly used for heating the passenger compartment ,defrosting and removing fog on the window,or preheating battery thermal management system battery ,to meet the corresponding regulations, functional requirements.
FAQ
Q: What’s your tem of the delivery?
A: Our ordinary delivery term is FOB Beijing. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q: What is your term of payment?
A: 100% T/T payment before shipping.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q.How your quality guarantee?
A.We have 100% quality guarantee to customers. We will be responsible for any quality problem. The redundant sealing design can improve system reliability.
