PTC Heater For Electric Vehicle

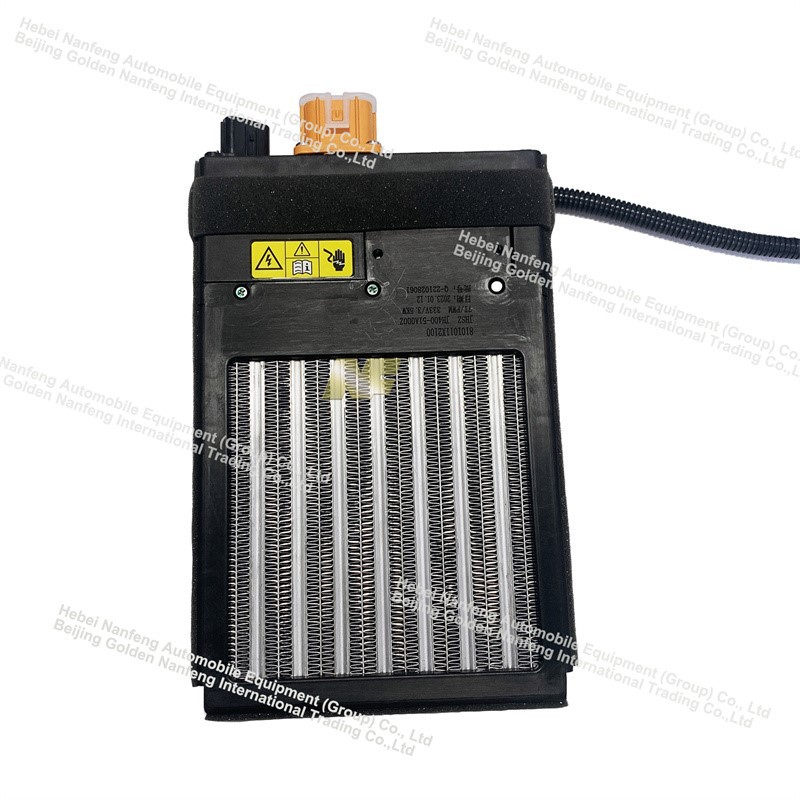

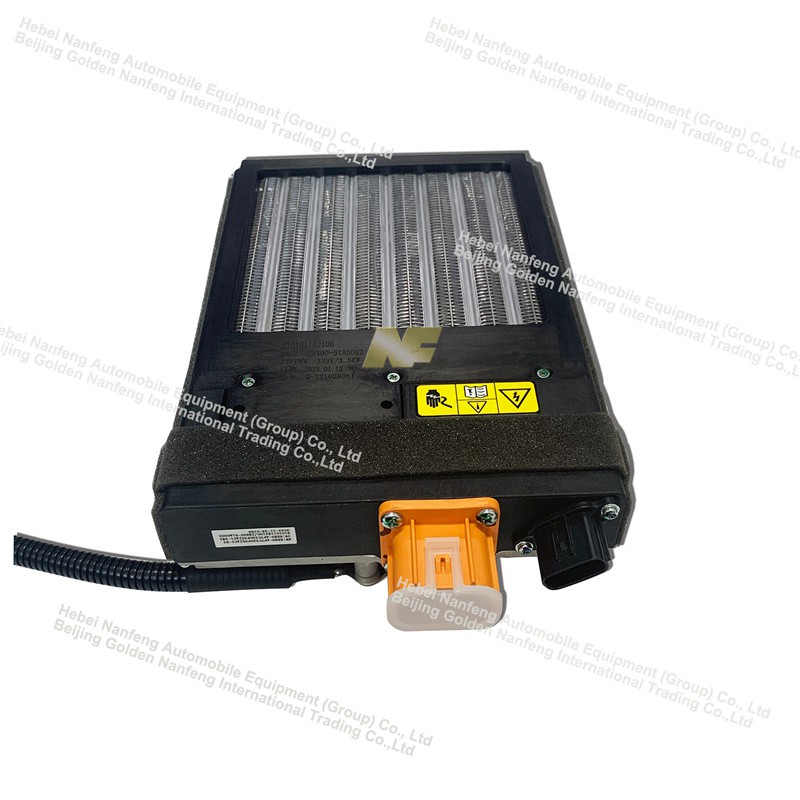

PTC Heater for an electric vehicle







PTC air heaters for new energy vehicles are core heating components specifically designed for electric vehicle air conditioning systems. Unlike traditional gasoline vehicles that utilize engine waste heat, pure electric vehicles have no heat source. PTC heaters directly heat the air by energizing a positive temperature coefficient ceramic element, providing warm air to the passenger compartment.





Rated voltage	333V
Power	3.5KW
Wind speed	through 4.5m/s
Withstand voltage	1500V/1min/5mA
Insulation resistance	≥50MΩ
Communication protocol	CAN



Their core advantages lie in their high efficiency and safety: PTC materials have automatic temperature control characteristics; as the temperature rises, the resistance increases sharply, and the power automatically decreases, eliminating the risk of overheating and eliminating the need for additional temperature control circuitry. Common "air-cooled" heaters have a compact structure that can be integrated into the air conditioning unit, offering rapid thermal response and quickly raising the interior temperature in low-temperature environments. However, PTC heaters have relatively high energy consumption (typically 3-7kW), significantly impacting winter driving range. Therefore, some high-end models are gradually adopting heat pump systems as an alternative, but PTC remains a standard or auxiliary heating solution for mainstream models due to its low cost and rapid heating.



System main functions

Vehicle interface

-It is completed by the low-voltage area MCU and related functional circuits, which can realize CAN basic communication functions, bus-based diagnostic functions, EOL functions, command issuing functions, and PTC status reading functions.
-The power interface is composed of a low-voltage area power processing circuit and an isolated power supply, and both high- and low-voltage areas are equipped with EMC-related circuits;



Control function

-Can realize the PTC switch function;
-Can realize PTC duty cycle control.











1. Q: Are you a manufacturer, trading company, or a third party?
A: We are a manufacturer, and our company has been established for over 30 years.

2. Q: Where is your factory located?
A: It lies in the industrial area of Wumaying of Nanpi county of the province of Hebei, covering an area of 80,000㎡.

3. Q: How can I get to your company?
A: Our company is in Beijing, and we can pick you up at the airport.

4. Q: If i will need to stay in your place for a few days, is it possible to book the hotel for me?
A: It's always my pleasure. Hotel booking service is available.

5. Q: What is your minimum order quantity? Can you send me samples?
A: Our MOQ is one set; samples are available.

6. Q: At what level of quality are your products?

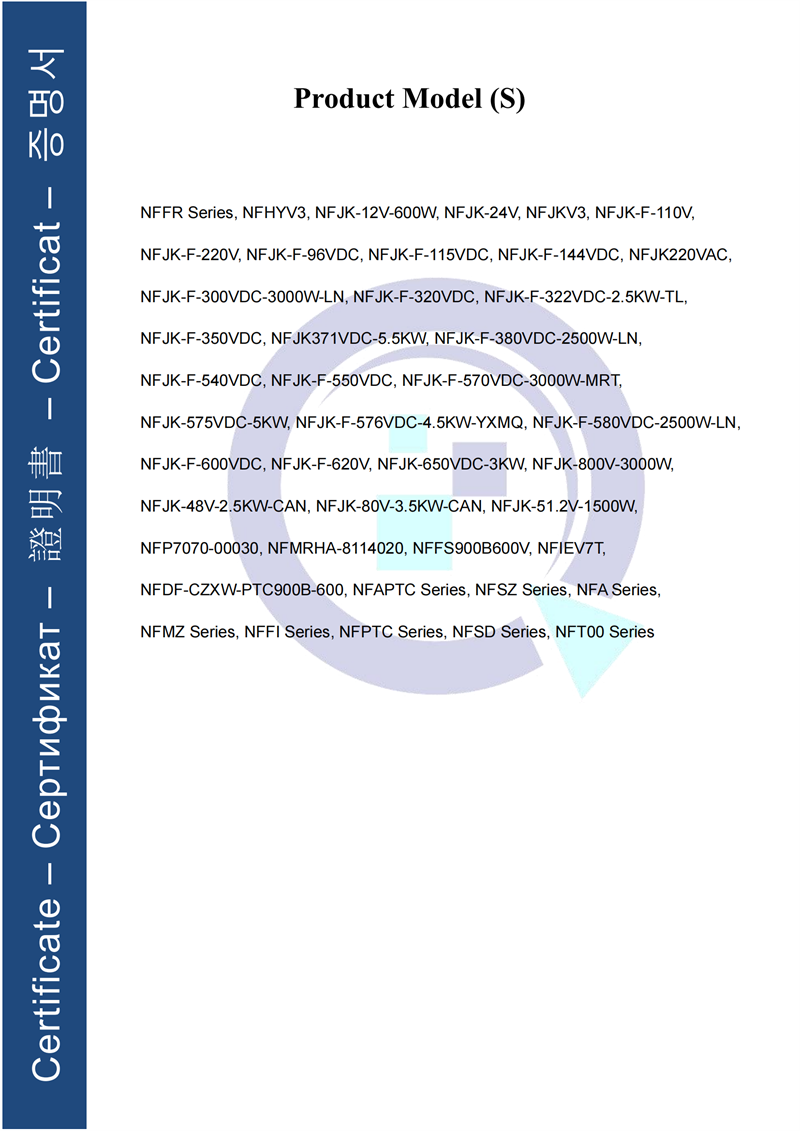

A: We have got CE and ISO certificates so far.

7. Q: What is the delivery time of your product?
A: Generally, the product delivery time is within 30 days after payment, but special circumstances are not excluded.

8. Q: May I know which payment will be accepted by your company?
A:100% T/T in advance is available.
