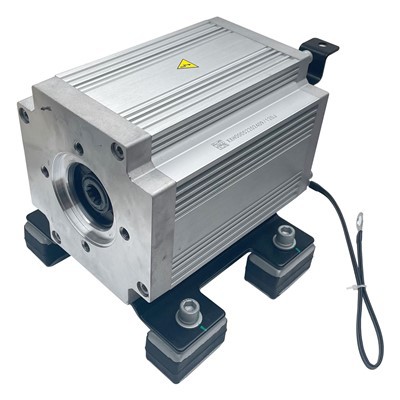

EHPS Steering Pump
Hebei Nanfeng Group has a history of producing electric vehicle parts for over 30 years. Our company is the largest auto parts manufacturer in China. The steering motor is specially designed for electric vehicles and electric trucks and supports OEM customization.
Description
EHPS Steering Pump
Products Description
Product Feature
1. Compact structure, small size, and lightweight;
2. Simple structure, high-cost performance, and long service life;
3. High power factor and good natural air cooling;
4. Simple control method and strong overload capacity;
5. Protection level: IP67 and above, insulation level: H;
6. Low noise, energy saving, and environmental protection;
7. The dual-source integrated product has strong emergency response capability and no delay in switching
|
Steering motor assembly performance parameters |
|||
|
Motor model |
EHPS-1018R3/19XB-010 |
||
|
Rated power (KW) |
3 |
Peak power (KW) |
7.5 |
|
Guangdong fixed voltage (VAC) |
237 |
Temperature control resistor type |
None |
|
Rated current (A.) |
12 |
Number of motor poles: |
8 poles (4 pairs of boards) |
|
Peak current (A) |
33 |
Stator wire resistance (0) |
0.8 (at 20℃) |
|
Rated frequency (HZ) |
66.67 |
Rated speed (r/min) |
1000 |
|
Peak torque (N.m) |
72 |
Rated torque (N.m) |
30 |
|
D-axis inductance|mH) |
6.88 |
Q-axis inductance|mH) |
10.87 |
|
Rated efficiency (%) |
≥92% |
Working day |
S2~3min |
|
Insulation level |
H level |
Cooling method: |
natural cooling |
|
Protection grade |
IP67 |
Working environment temperature: |
-40℃~+85℃ |
|
Motor type: |
SVC position sensorless permanent magnet synchronous motor |
||
Products Details
12V intelligent integrated pump advantages
We changed the design method of traditional oil pots, creating a unique appearance design.
Unique steering oil pump design, more reliable and safer.
It transmits power and plays a buffering and insulating effect.
Both insulation and shock absorption, have a dual effect.
Lightweight motor, small power, strong power.
The core component of steering is precise control of the motor, thus achieving a good steering feel.
Products Application
