Hydrogen Energy Car Electronic Water Pump
NF new energy electric water pump is mainly used for the cooling, and dissipation of heat of electric motors, controllers, batteries and other electrical appliances in new energy (hybrid and pure electric vehicles).
Description
Hydrogen energy car electronic water pump
Products parameters
| Model Number | 02.03.256H.0003 |
| Ambient Temperature | -40ºC~+85ºC |
| Medium Temp | -40ºC~+95ºC |
| Rated Voltage | 24V |
| Voltage Range | DC9V~DC32V |
| Waterproofing Grade | IP67 |
| Service life | ≥30000h |
| Noise | ≤70dB |
| Rated Voltage | 600v |
| Flowing | Q=385L/min( when the head is 18m) |
Product Explosion Diagram
1. The water pump structure is shielded.
2. The front bearing seat is in contact with the medium, and the front insulating pad is used to insulate the front bearing seat and the casing;
3. To meet the insulation requirements of the rear bearing seat, a new structure is designed to isolate the rubber package of the rear bearing seat from the casing to meet the insulation requirements of the medium and the casing. The rear bearing seat is a separate component, distinct from the casing. The rear end face fixes the controller to dissipate heat for the controller, reduce temperature rise, and increase the service life of the controller. The front end is in contact with the circulating medium to take away the heat from the controller.
4. The motor shaft is a hollow structure. The medium enters the shielding sleeve through the front bearing seat in the high-pressure area of the volute, and enters the bottom of the motor shaft through the cross groove of the rear bearing seat after reaching the rear bearing seat, and returns to the water inlet of the water pump through the center hole of the motor shaft, forming a small heat dissipation circulation system. Specific structural water pump parts explosion diagram.
Products Description
product key Feature
1. High efficiency and energy saving: It has high hydraulic efficiency and mechanical efficiency, which makes its energy consumption low during operation and meets the national requirements for energy conservation and emission reduction.
2. Smooth operation: The impeller and the motor rotor are coaxial, which makes the whole equipment run smoothly, with small vibration and low noise.
3. Easy maintenance: The special design makes its maintenance simple and convenient, reducing the maintenance cost and downtime of the equipment
4. Safe use: The motor is in direct contact with the liquid, and no additional mechanical seal is required, which effectively avoids the risk of leakage and is safe and reliable to use
Products Q-H curve
Q-H curve (test medium: antifreeze)
Products Installation
It is recommended to use M8 screws for fixing (the casing thread depth is ≥16), the recommended torque is 20N.m, and the size of the fixing hole refers to the drawing;
It is recommended to install the electronic water pump horizontally along the motor shaft (at an angle of ±5°), with the water outlet facing upward.
It is recommended to use vacuum filling for filling coolant, and it is strictly forbidden to run the electronic water pump without water.
Products application

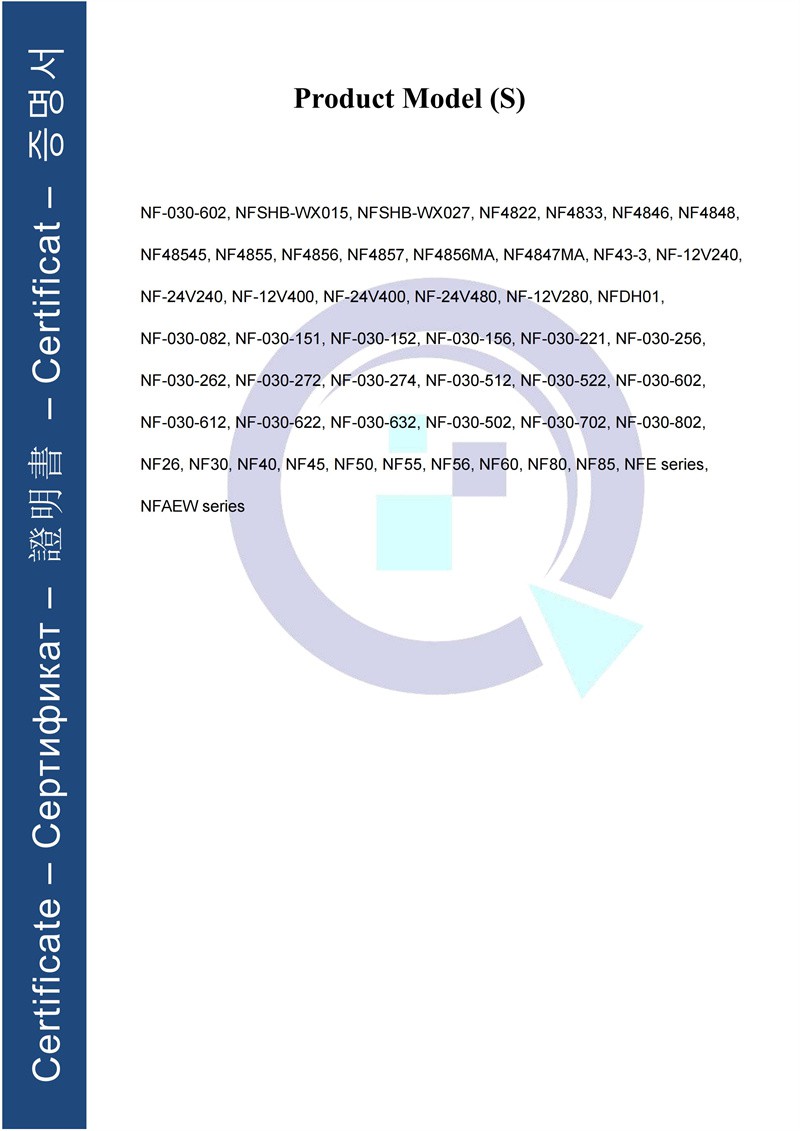

Products certification
FAQ
Q: Is the operating voltage range compatible with the 800V high-voltage platform?
A: Supports 400V/800V architecture, and the insulation withstand voltage is >3kV (in compliance with LV 124 automotive electrical safety regulations).
Q: Can the protection level (IP) cope with harsh environments?
A: All series are IP67/IP6K9K (dustproof/waterproof), and resistant to vibration of 20G (ISO 16750-3 standard).
Q: What is the design life? Is there any accelerated aging test data?
A:
Life: >15,000 hours (equivalent to the life of the entire vehicle)
Test standards: High temperature aging (135℃/500h)
Hot and cold shock (-40℃↔125℃, 1,000 times)
Salt spray test (480h)
