8KW Automotive High Voltage Coolant Heater

Name: 8KW Automotive High Voltage Coolant Heater Suppliers and Manufacturers China - Factory Quotation - NANFENG
Brand: Nanfeng
SKU: 217348422

Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.8KW automotive electric heater for EV is specially designed for electric vehicles and has the advantages of fast heating and environmental protection.

Send Inquiry

Description

If you're looking for the 8kw automotive high voltage coolant heater, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.

Products Description

hvc high voltage coolant heater

high voltage coolant heater

A. Application
This heater is mainly used to heat the passenger compartment, defrost and defog the windows, or preheat the power battery thermal management battery to meet corresponding regulations and functional requirements.

B. Product features
1. Self-control temperature PTC heating element, water and electricity separation, safe and reliable
2. Simple structure, high thermal efficiency, IP67 waterproof rating
3. Small power aging and long service life
4. It has high temperature resistance, cold resistance, corrosion resistance, vibration resistance and electromagnetic interference resistance. Technical parameters:

Products Parameters

Power	8KW±10%(600VDC, T_In=60℃±5℃, flow=10L/min±0.5L/min
Flow resistance	4.6 ( Refrigerant T = 25 ℃, flow rate = 10L/min) KPa
Burst pressure	0.6 MPa
Storage temperature	-40~105 ℃
Use ambient temperature	-40~105 ℃
Voltage range (high voltage)	600V (450~750V) / 350V (250~450V) optional
Voltage range (low voltage)	12V(9~16V) / 24V (16~32V) optional
Relative humidity	5~95%
Supply current	0~14.5 A
Inrush current	≤25 A
Dark current	≤0.1 mA
Insulation withstand voltage	3500VDC/5mA/60s, no breakdown, flashover and other phenomena
Insulation resistance	1000VDC/200MΩ/5s
Weight	≤3.3 Kg
Discharge time	5s (60V)
IP protection (PTC assembly)	IP67
Heater air tightness Applied voltage	0.4MPa, test 3min, leakage less than 500Par
Communication	CAN2.0 / Lin2.1

W13

Products Details

electric parking heater

battery coolant heater

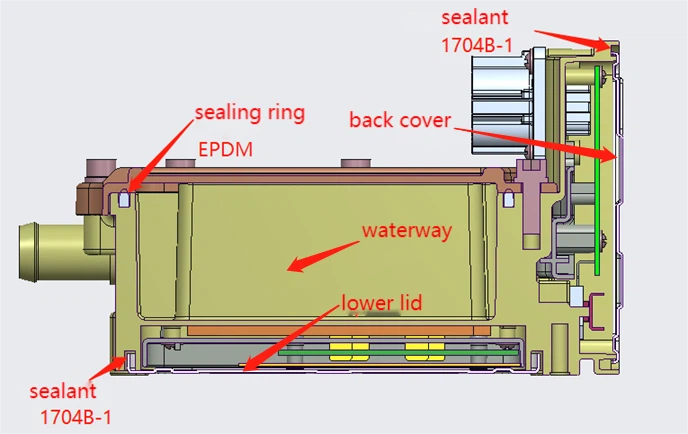

Waterproof structure

W13 PTC heater

The water channel and lower cover, water channel and back cover are coated on the sealing surface with sealant. GO-1704B-1 is a one-component room temperature curing liquid silicone rubber that relies on moisture to cure. When used, it is self-vulcanized by contact with moisture in the air. Elastic solid. After curing, the product can be used for a long time in the temperature range of -60~200℃. It has excellent electrical insulation properties and chemical stability; it is resistant to water, ozone, and weather aging; it has good adhesion to a variety of metal and non-metal materials.
