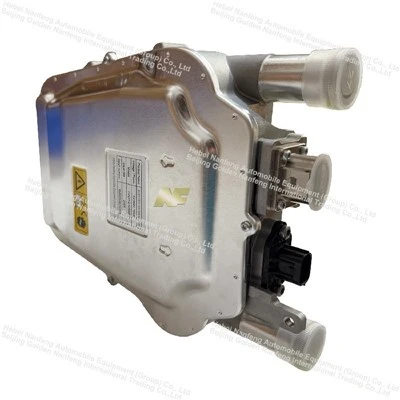

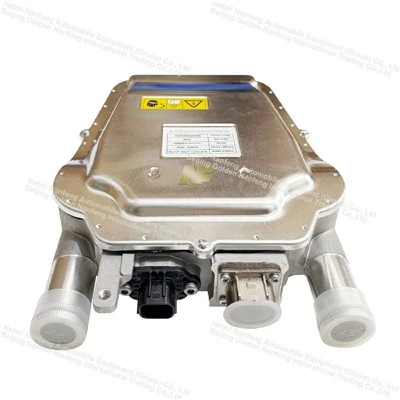

15KW Thick Film Heater
NF Group is the largest electric heater manufacturer in China. Now we have launched a new product: a 7-15 kW thick film electric heater, which has been supplied in batches. This product has the advantages of ultra-high thermal efficiency, strong pressure resistance, ultra-long life, ultra-safety, and simple structure.
Description
15KW Thick Film Heater
Products Description
The 7-15kW thick film heater is a highly efficient and energy-saving electric heating device. It utilizes thick film heating technology, utilizing rare earth thick film electrothermal materials screen-printed onto substrates such as stainless steel.
This thick film heater offers several advantages:
1. High thermal efficiency: 14% improved COP
2. High integration: 20% fewer components, resulting in a 28% weight reduction
3. High compactness: 22% smaller footprint
4. Fast response: 100x higher full power output
5. More precise control: High accuracy and no surges
6. High voltage resistance: Capable of withstanding 1500V high voltages
Products Parameter
| OE NO. | HVCH-Q15 |
| Rated power | 15KW(OEM 7KW~15KW) |
| Rated Voltage | DC600V(OEM 350V~890V) |
| Voltage Range | DC400V~DC800V |
| Control Low Voltage | 9V~32V |
| Control Signal | CAN (Compatible with J1939) |
| Over dimension (L* W* H) | 277.5mmx198mmx54mm |
| Inlet and Outlet Water Joint Dimension | Ø25mm |

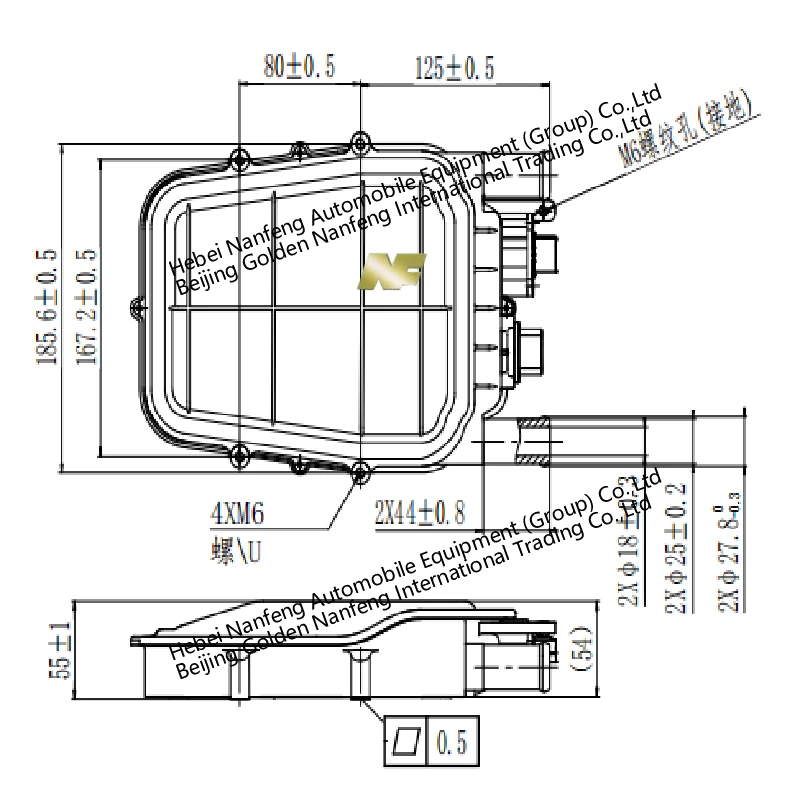

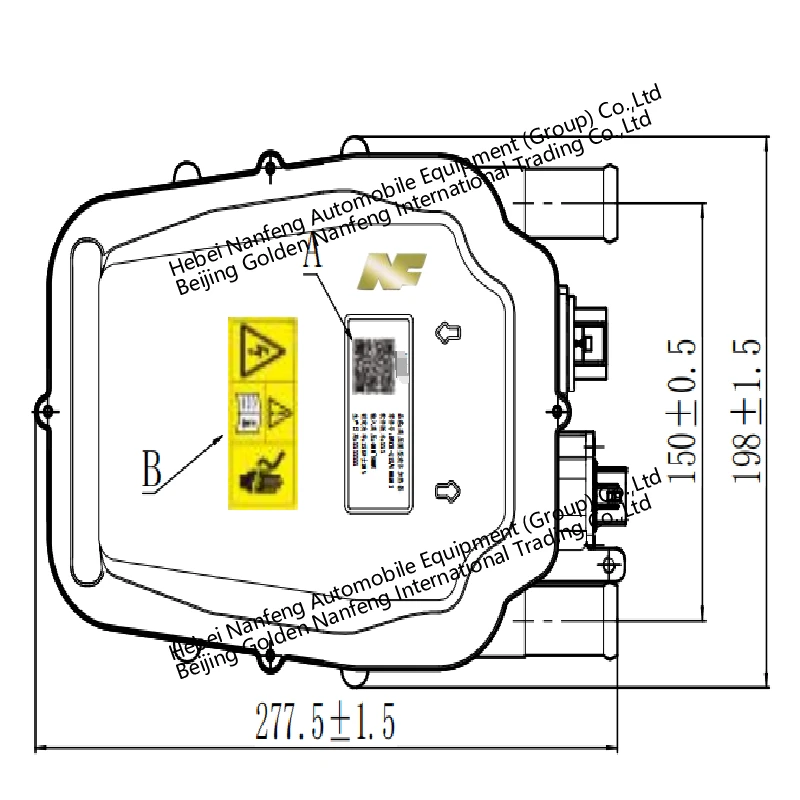

Thick Film Heater Size:

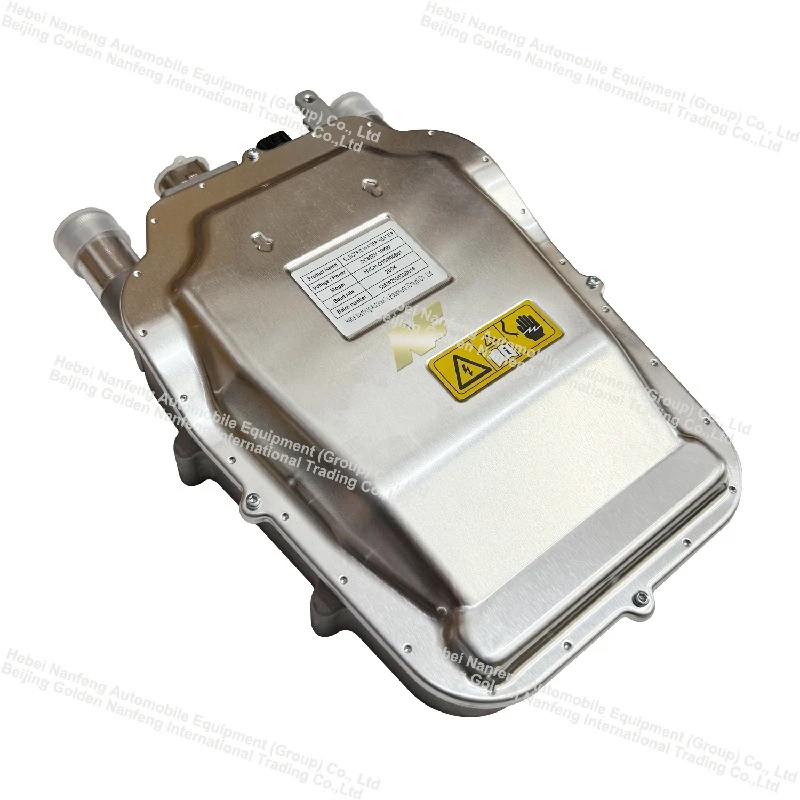

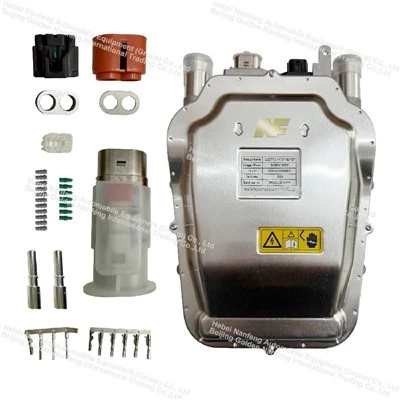

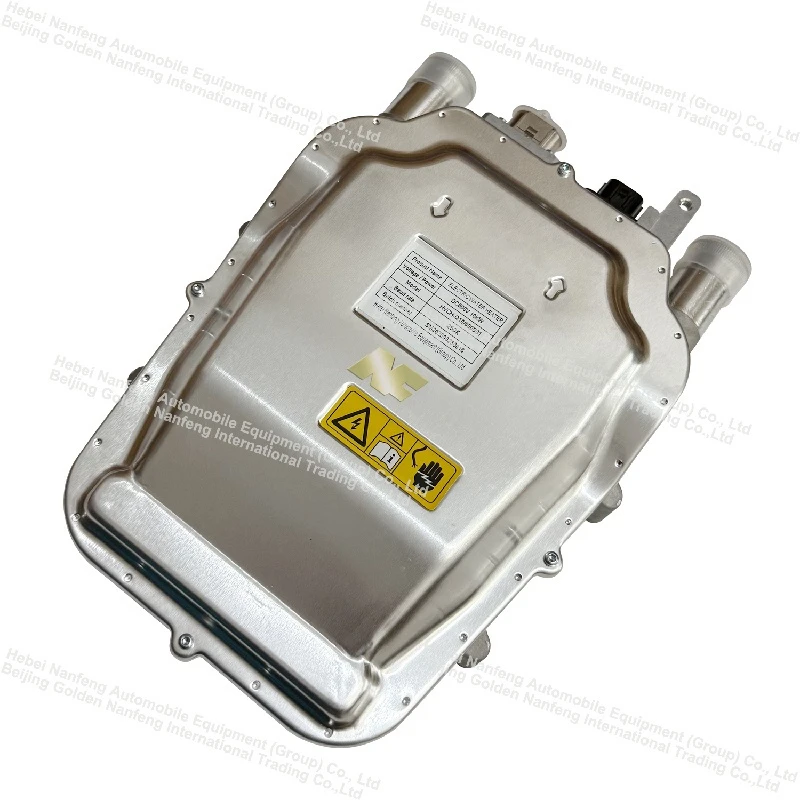

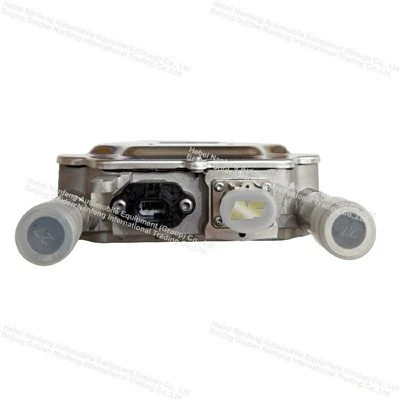

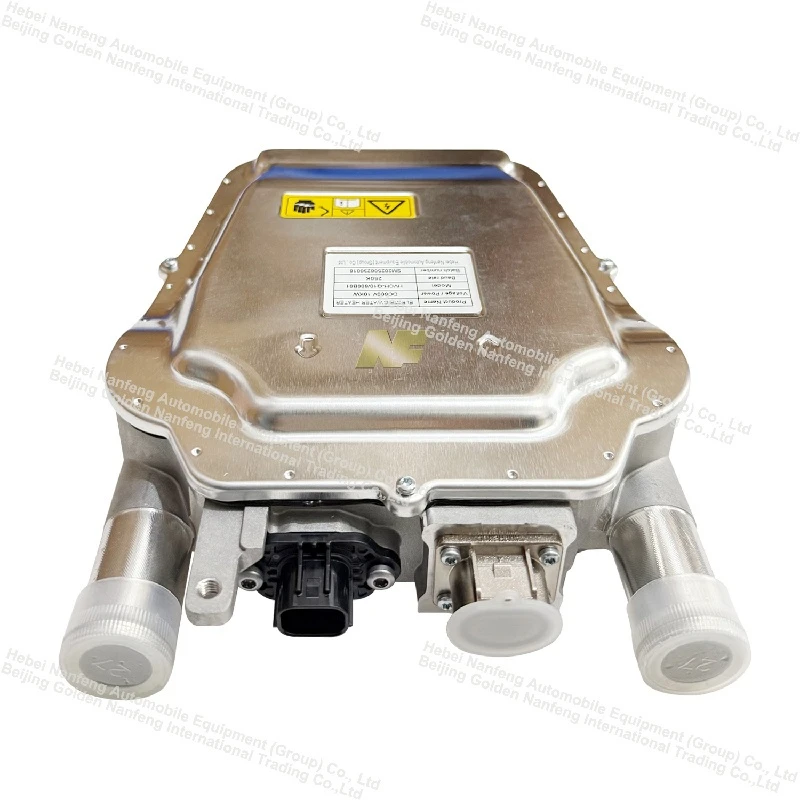

Products Details
Products Advantages
1. Simple membrane structure, light weight, low heating unit temperature, and high heat exchange efficiency;
2. Constant electrical resistance, low thermal resistance, and reliable insulation;
3. Precise power control with no inrush current;
4. High power per unit weight and unit volume;
Thick Film Heater Features:
1. TFE coating
2. Constant resistance
3. Precise power control
4. High thermal conductivity
5. Uniform heat dissipation
6. Independent intellectual property rights
Products Application
Products Certification
Our Company
Products Description
1. Q: What are the advantages of thick film electric heaters compared with traditional PTC heaters?
A: Thick film heaters have higher energy efficiency (up to 95% or more), faster heating speed (second response), smaller size, and high power density, which are suitable for the strict requirements of new energy vehicles on space and energy consumption.
2. Q: How is the safety of thick film heaters guaranteed?
A: It uses insulating ceramic substrates and high-temperature resistant thick film materials, has overcurrent, overtemperature, and short-circuit protection functions, and has no open flames, meeting the automotive grade IP67 protection and flame retardant standards.
3. Q: How to solve the problem of start-up delay in a low temperature environment?
A: Thick film heater directly heats the coolant/air, and can output heat in 3-5 seconds. It cooperates with the preheating strategy of the battery management system (BMS) to eliminate the bottleneck of low-temperature cold start.
4. Q: Does the life meet the use requirements of the whole vehicle?
A: The design life is usually more than 10 years/300,000 kilometers. Because there are no mechanical moving parts and it is corrosion-resistant, the actual life can reach 2-3 times that of traditional heaters.
5. Q: What is the future direction of technology development?
A: Focus on higher power density (＞20kW/L), wide temperature range compatibility (-40℃~150℃), and coordinated optimization with heat pump systems to further reduce energy consumption.
