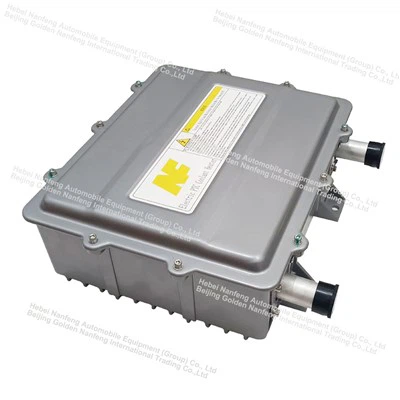

High Voltage Heaters For Electric Vehicles video

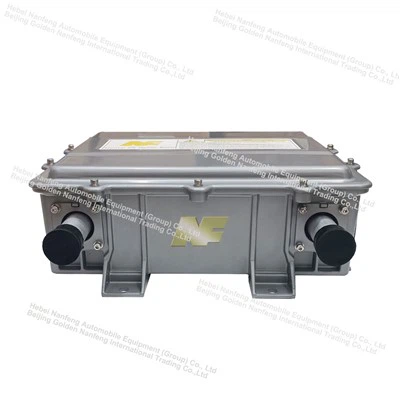

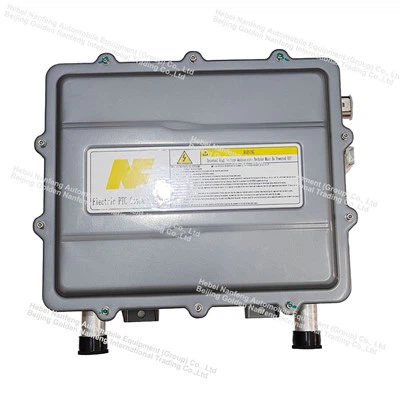

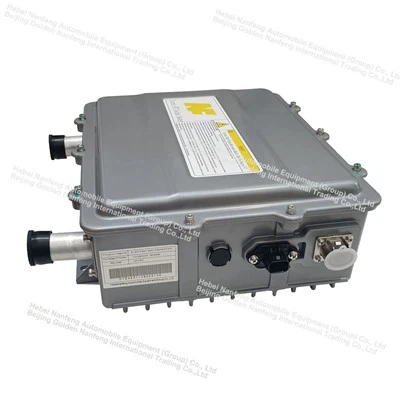

High Voltage Heaters For Electric Vehicles

The High Voltage Heaters For Electric Vehicle utilizes high voltage PTC elements as its heating source. Employing a dual-control strategy via high voltage contactors and IGBTs—the system enables both stepped power adjustment and PWM regulation. It serves as an independent heat source for the entire vehicle by circulating a heating medium.

Description



High Voltage Heaters for Electric Vehicles



Products Descriptions

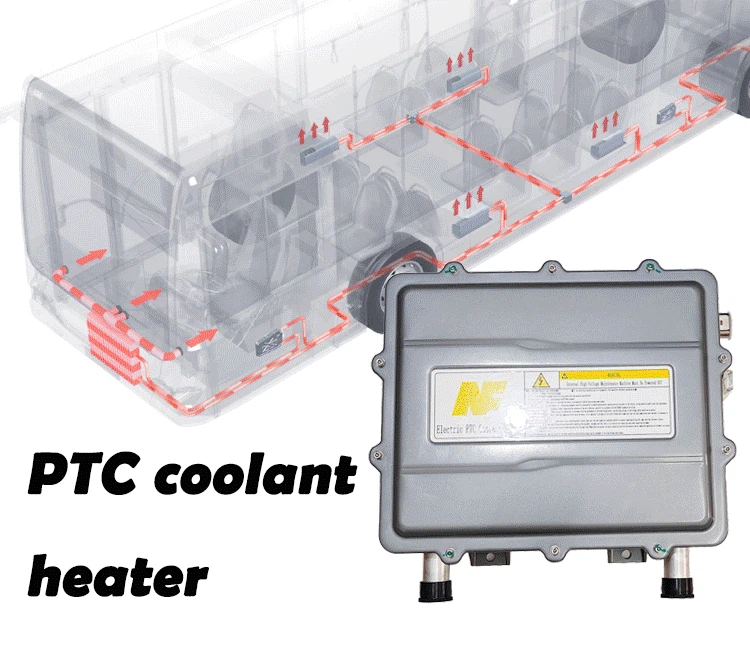

product-750-667

The 30kW high-voltage liquid-heating PTC heater serves as a high-power heat source for fuel cell Battery Thermal Management Systems (BTMS), distinguishing it from the standard 3–10kW liquid-heating PTC units found in passenger vehicles. Classified as a heavy-duty, high-power, high-voltage liquid heater, it is primarily used in high-power fuel cell commercial vehicles; it uses deionized ethylene glycol coolant as the heating medium and operates with an electronic water pump to form the fuel cell stack's cold-start circuit.

Products Parameters

20KW HVH Electric Bus Heater

Model

NFHVH-Q10/15/20/25

NFHVH-Q30

Rated voltage (V)

600

600

Voltage range (V)

450-750

450-750

Rated power (W)

10-20KW±10%),T_in=20℃

30KW±10%),T_in=20℃

Controller low voltage (V)

9-16 or 16-32

9-16 or 16-32

Control signal

Rocker switch hardwire control or CAN

CAN



Products Core Features

20KW HVH Electric Bus Heater

Ultra-high heat output capability


Standard passenger vehicle PTC heaters typically range from 3 to 8 kW, while those for light-duty truck fuel cells range from 10 to 15 kW. The 30 kW unit falls into the heavy-duty, high-power category, delivering massive heat output; it is designed for high-power stacks (120 kW–240 kW fuel cell engines) characterized by large coolant volumes, long piping runs, and extremely high thermal loads during cold starts.



Multi-channel independent power circuit design


Instead of a single heating circuit, the 30 kW unit utilizes multiple independent PTC branches. If one branch fails, the system can isolate it and continue operating at reduced power rather than shutting down completely, thereby meeting the high reliability requirements of commercial vehicles. In contrast, most low- to medium-power PTC heaters use a single heating core that fails if damaged.



High-voltage, high-current design with reinforced insulation


Compatible with 600V/800V fuel cell high-voltage architectures; features enhanced thermal management for high-voltage circuits, bus capacitors, and power components. Strict isolation between coolant and high-voltage circuits, combined with low ion-leaching characteristics in wetted parts, ensures compliance with the specific requirements of fuel cell deionized coolant loops (standard PTC heaters for construction machinery cannot be directly used in fuel cell stack circuits).


High EMC performance and automotive-grade durability


Designed for the high-vibration environments of commercial vehicles and rated IP67. High-power IGBT switching generates significant noise, so specialized EMC suppression is needed to prevent interference with hydrogen injectors, the Fuel Cell Control Unit (FCU), and sensors.

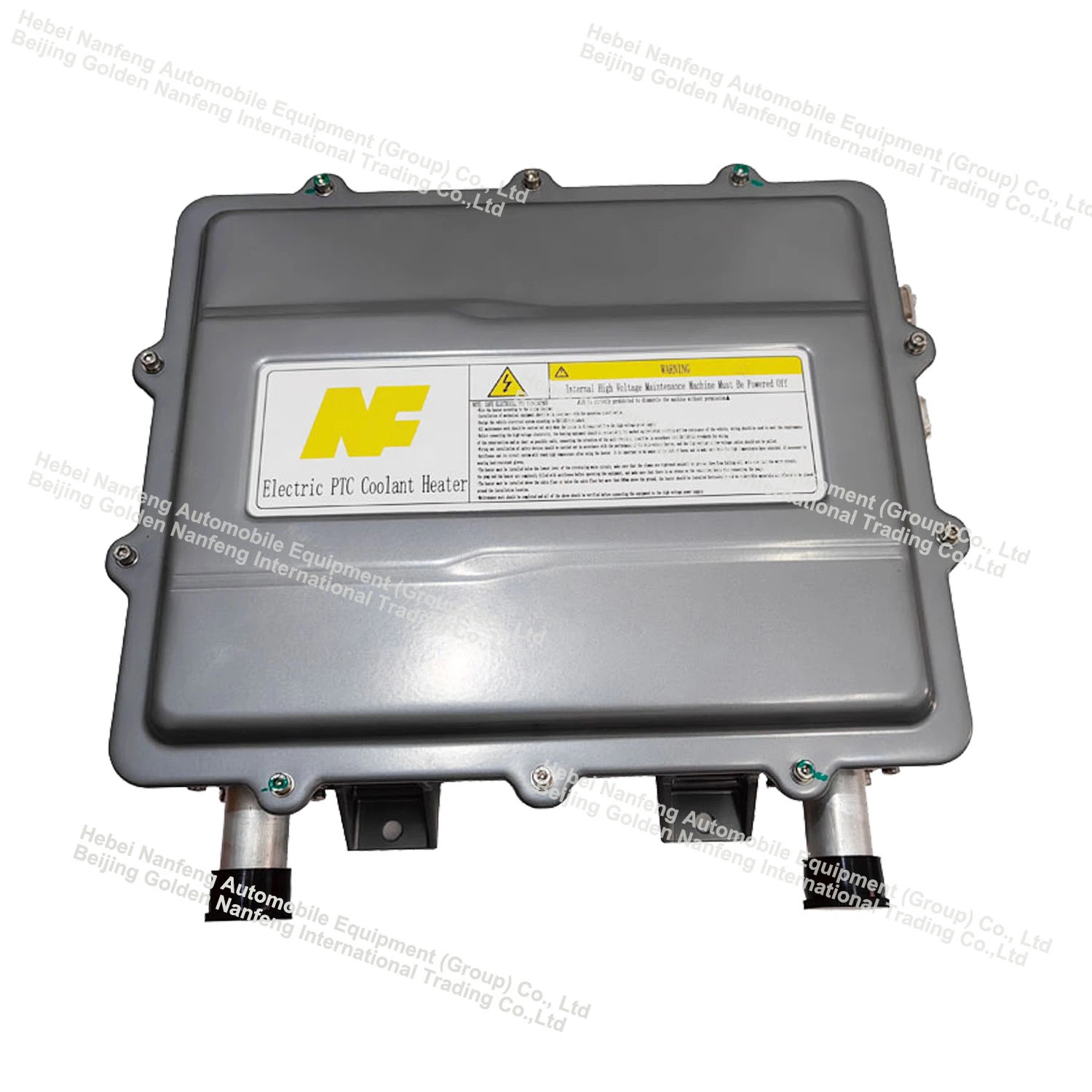

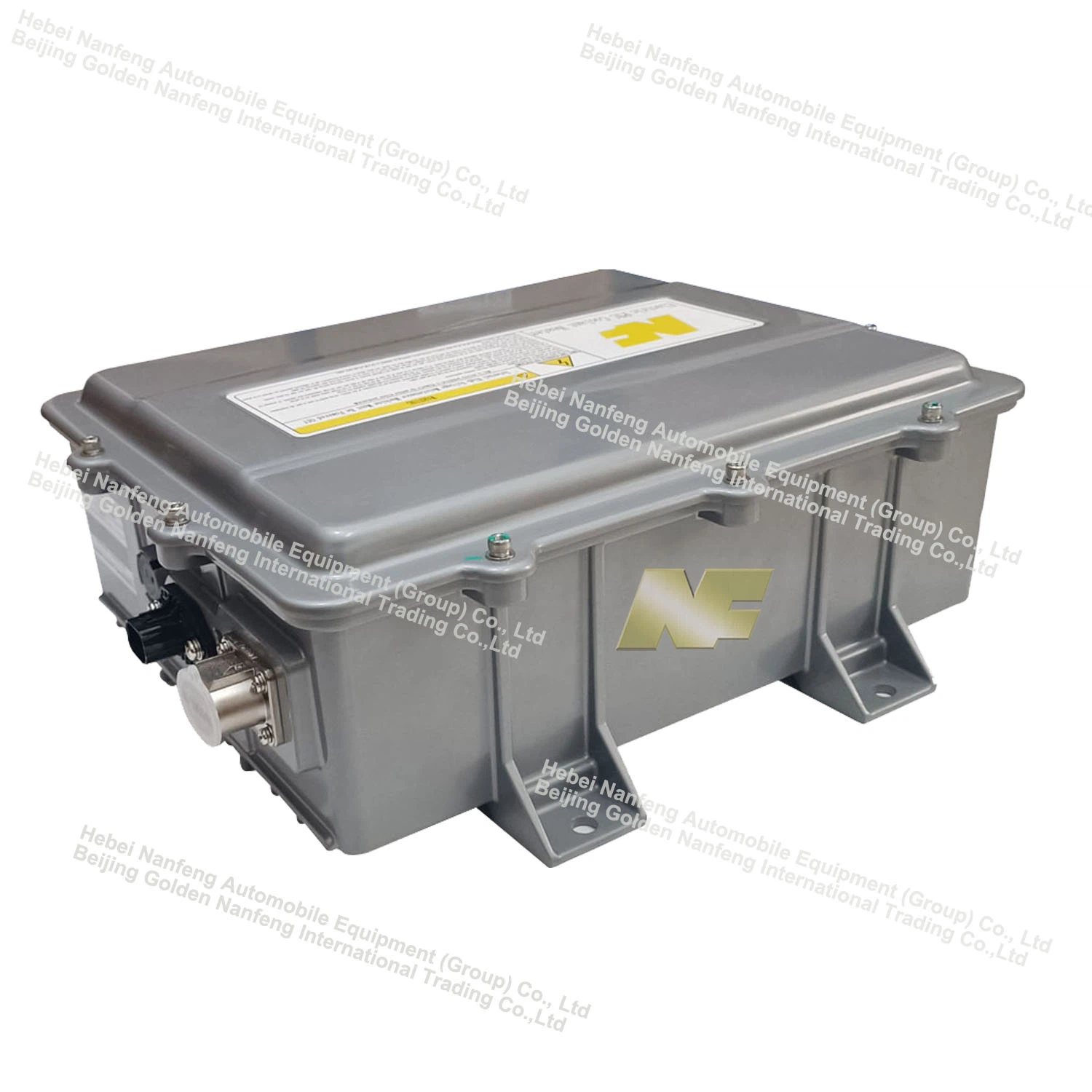

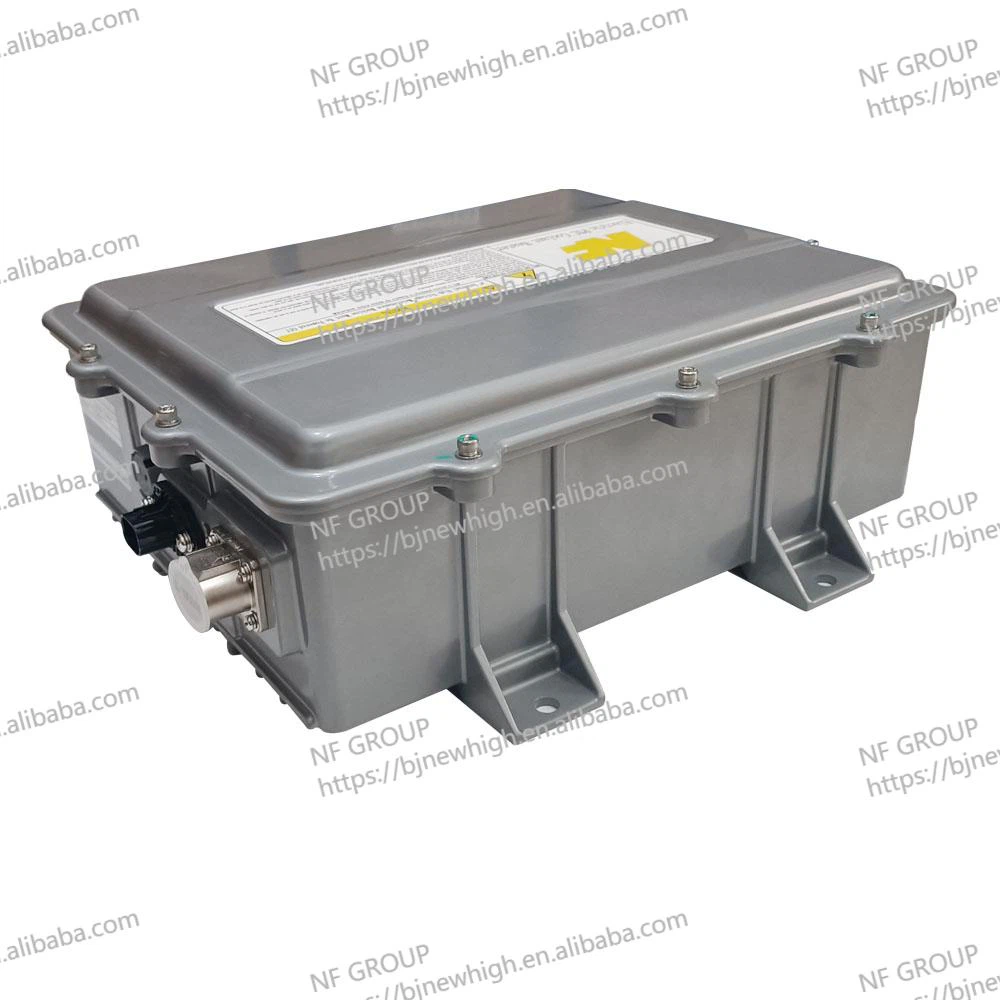

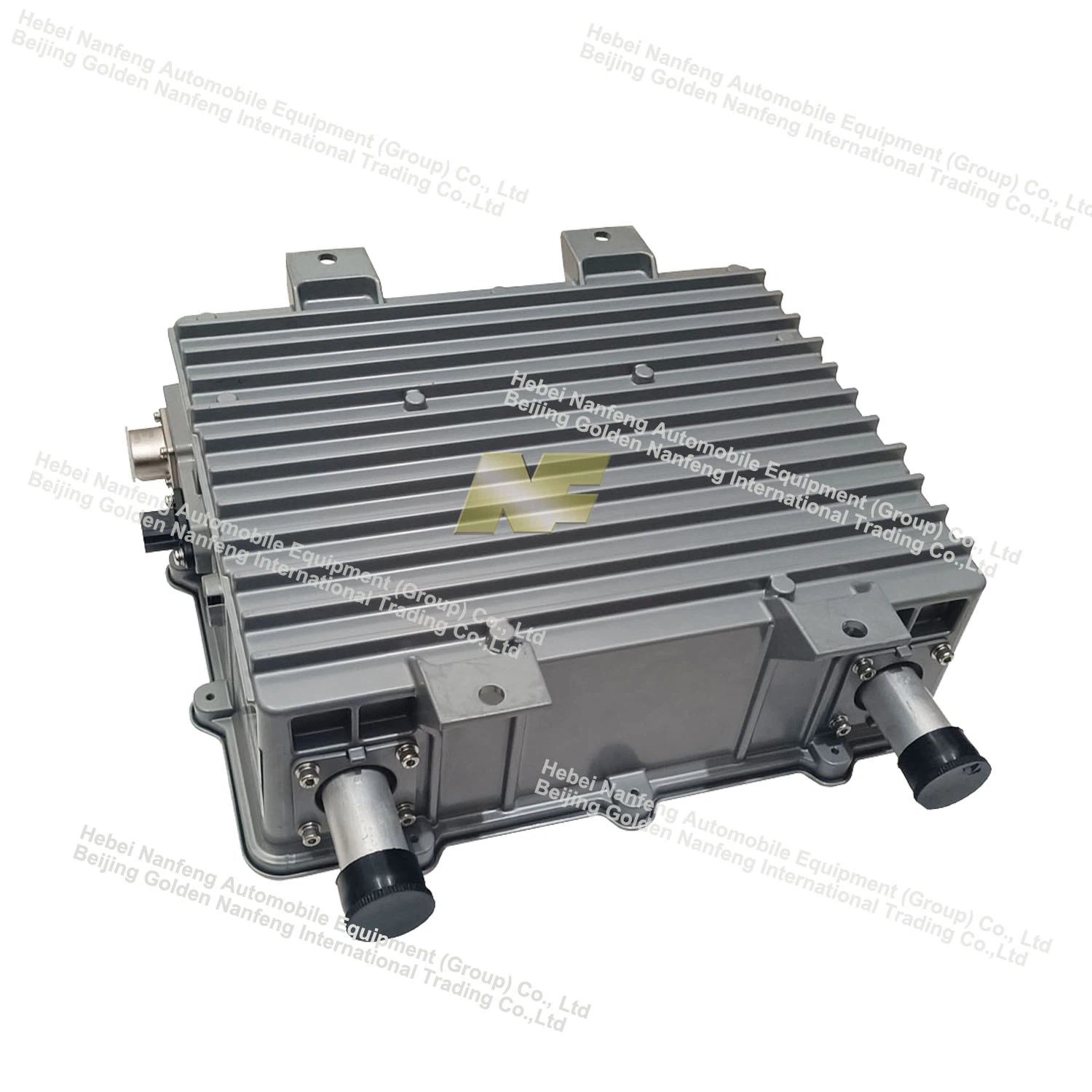

Products details

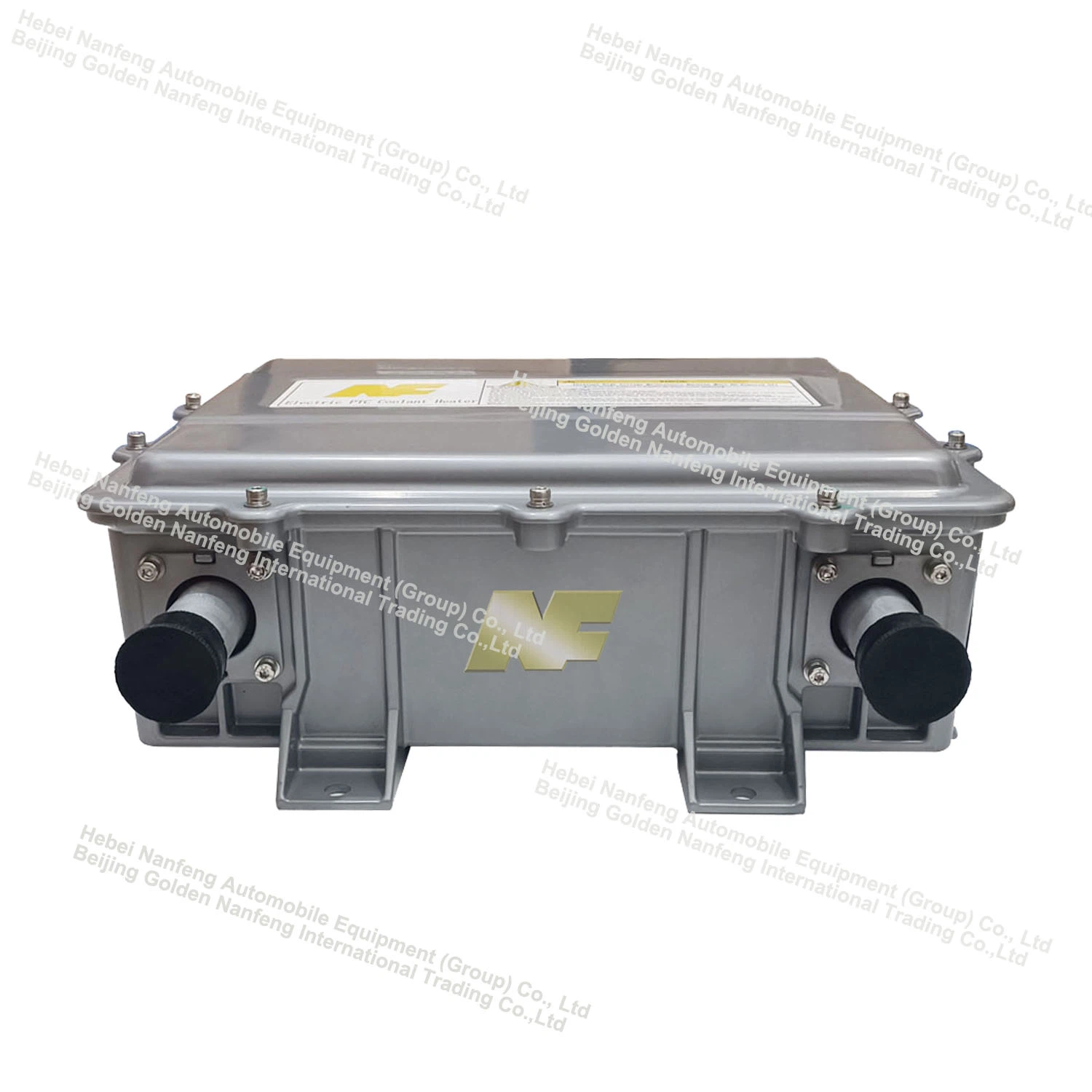

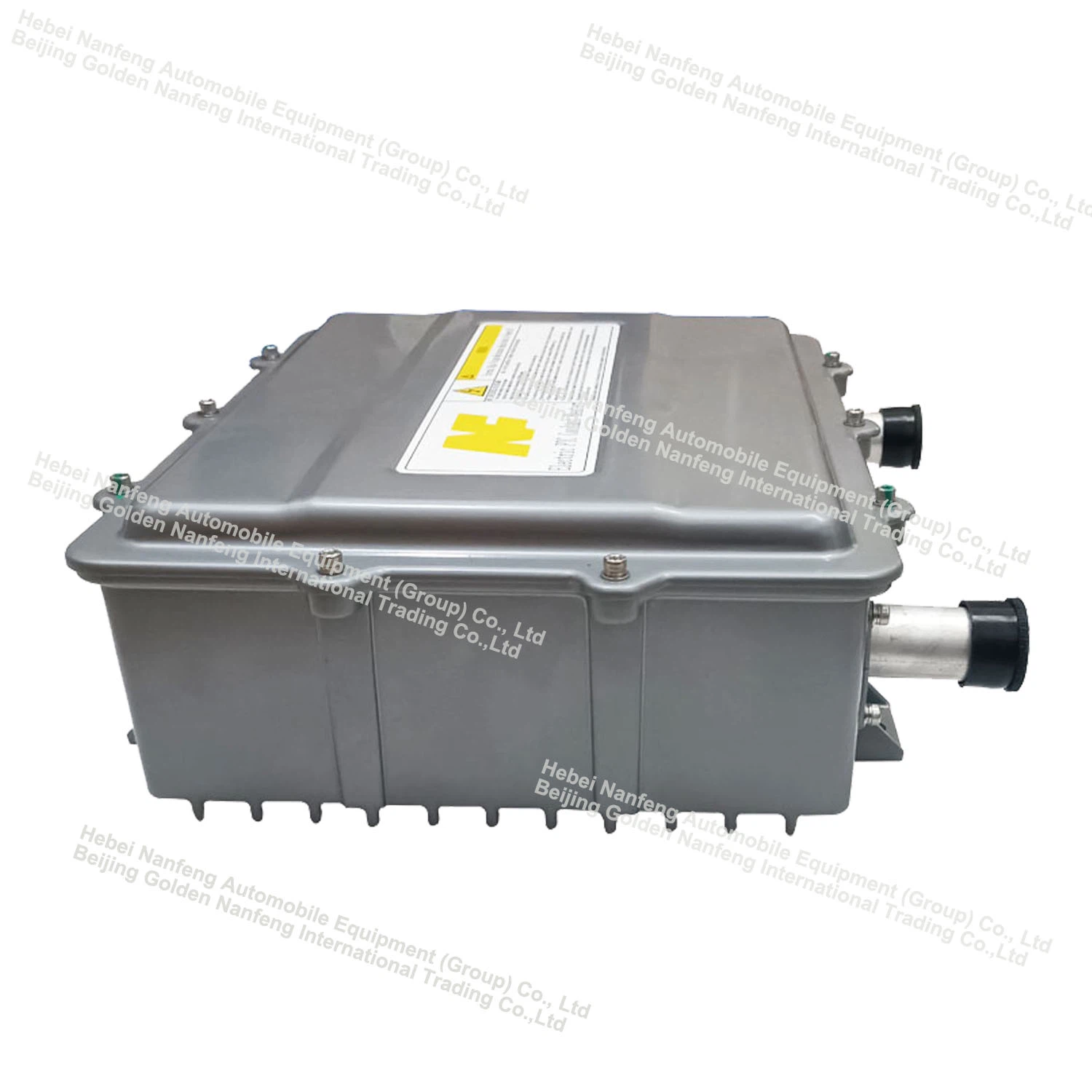

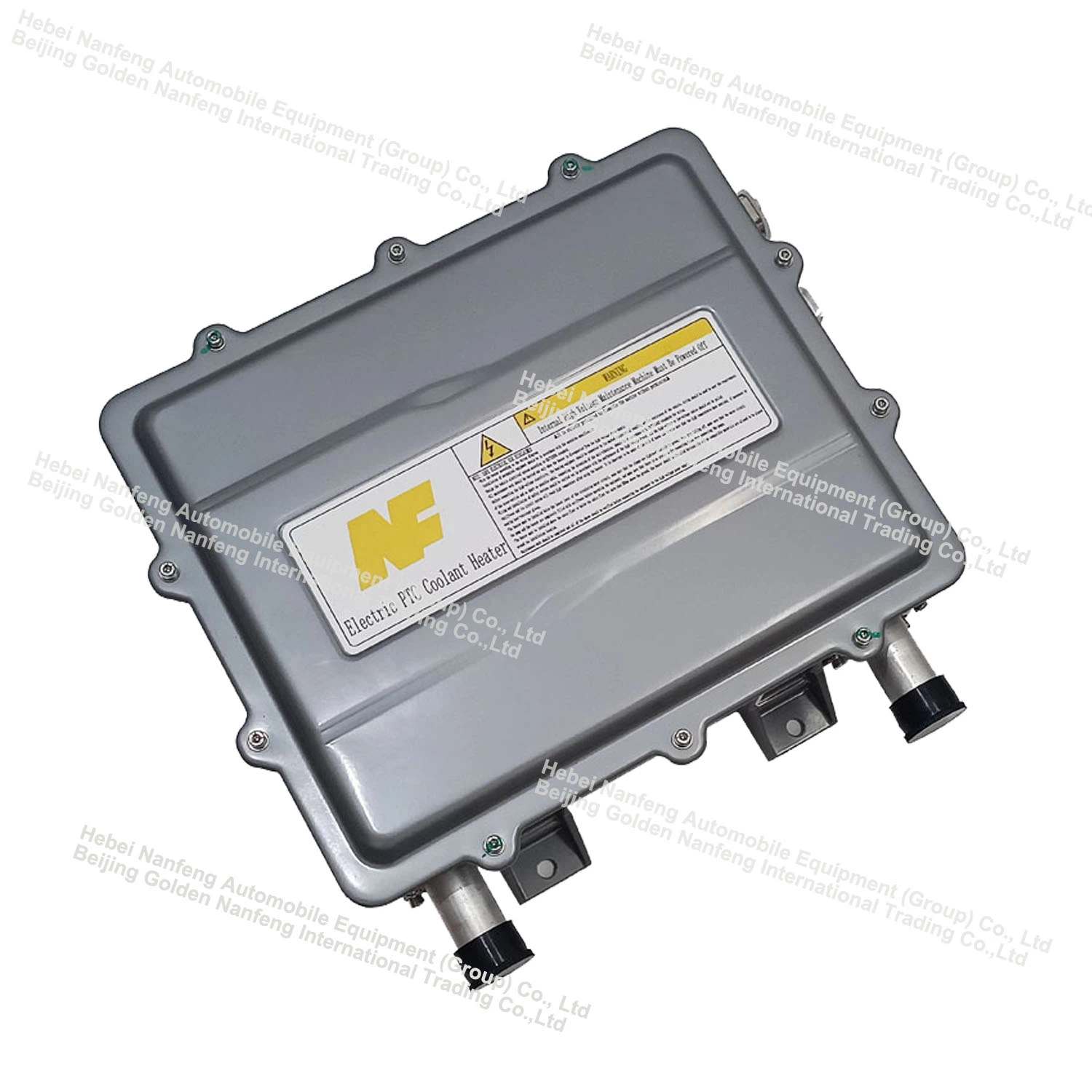

product-1500-1500 product-1500-1500 product-1500-1500 product-1500-1500

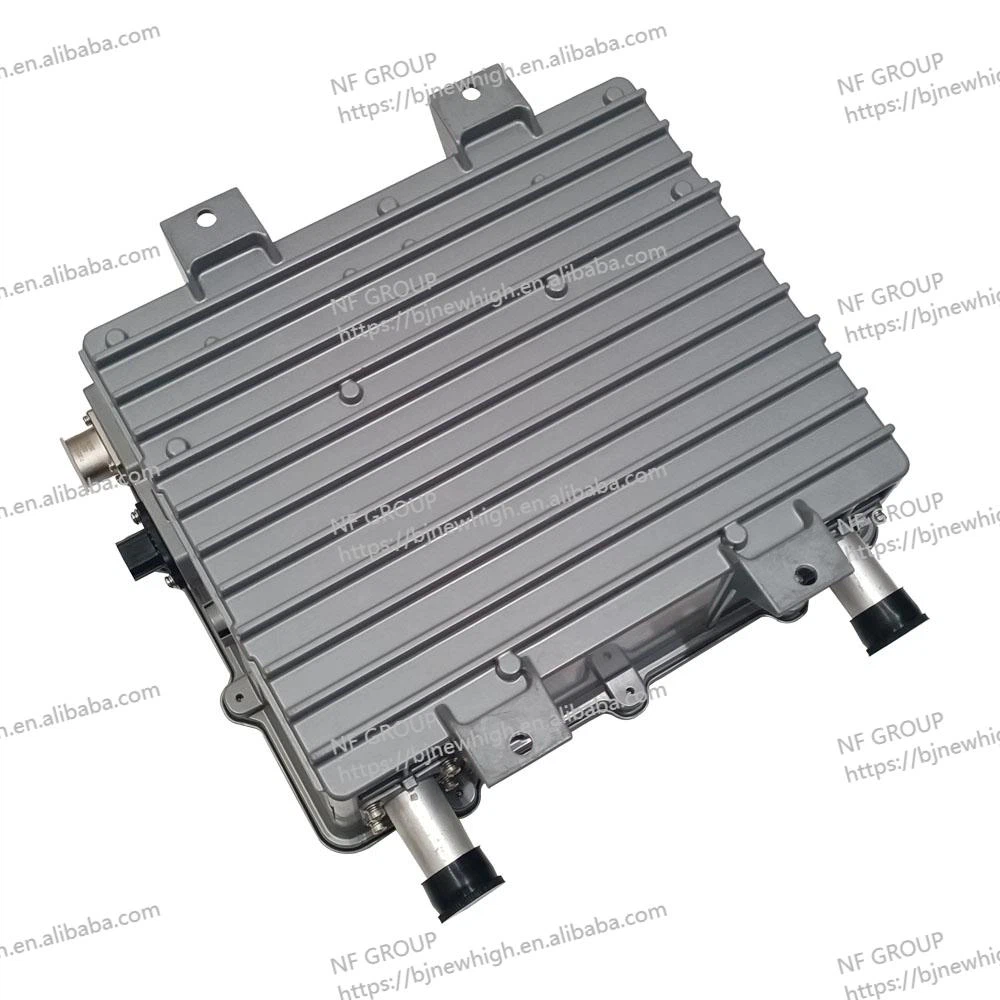

product-1500-1500 product-1000-1000 product-1500-1500 product-1000-1000



Products Applications

This product is a liquid heater specially designed for pure electric buses. PTC coolant heaters use onboard energy to heat all-electric buses. The rated voltage of the product is 600V, and the power is 10-30KW, which can fit various models of pure electric buses. The heating power is strong, providing sufficient heat and a comfortable driving environment for the driver and front passenger, and it can also be used to heat the battery.




Products advantages



product-890-494



  1. Provides a sufficient heat source with adjustable power, and solves the three problems of defrosting, heating, and battery insulation at the same time.
  2. Low operating cost: no oil burning, no high fuel cost;
  3. The product is maintenance-free, and there is no need to replace the accessories damaged by high-temperature combustion every year;
  4. It is clean and free of stains, and it is not necessary to clean up oil stains frequently.
  5. Pure electric buses no longer need fuel for heating, which is more environmentally friendly.



Products Packing



high voltage heater packing





Products Qualification



NF group.jpg

FAQ



(1)Q: Are you a manufacturer or trade company?

    A: We are a manufacturer, and there are 5 factories in Cangzhou.



(2)Q: How your quality guarantee?

    A: We have a 100% quality guarantee for customers. We will be responsible for any quality problems.



(3)Q: Would you have a discount if I have a large order?

    A: Yes, we could offer different discounts according to your order quantity.



(4)Q: Can we visit your factory before placing the order?

     A: Yes, very welcome. It must be nice to set up a good relationship for business.



(5)Q: If I don't know what kind of product I need, what should I do?

    A: Just take it easy; you just need to provide us with "working voltage," power, " flow rate, " "temperature," and "media." Then,  we can suggest the most suitable product to you, or we can provide you with our e-catalogue for your reference. You choose the suitable model; you only need to tell us the model number.



(6)Q: What is your MOQ? Can I mix different styles for a start order?

    A: Our MOQ is 1pc; you can order different styles as a first order.
