Oil Free Air Compressor For Truck

If you're looking for the oil free air compressor for truck, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.

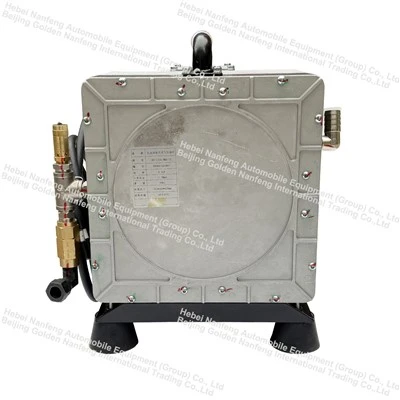

Oil-Free Air Compressor for Truck



The air compressor should be stored in a dry, well-ventilated indoor environment, strictly avoiding contact with corrosive, perishable, flammable, or chemical substances.

Actual impacts are strictly prohibited. When in use, it should be placed upright to prevent tilting or inversion, which could lead to malfunctions and accidents.

To ensure safety and extend the machine's lifespan, the machine should be placed in a well-ventilated, clean, and cool location. The ambient temperature should be within the range of -40℃ to 60℃. Avoid using it in environments with polluted air, dust, or oily fuel fumes.

Before connecting to power, ensure the machine is switched off. Operate the machine according to the indicated direction. Voltage fluctuations are allowed to be ±10%. For safety, never touch any components of the air compressor while it is operating.

The compression medium	Air medium
Working pressure	Suction pressure	Atmospheric pressure
	Discharge pressure	0~12.5Mpa
	Power to flow ratio	≤12(including motor and controller)
Temperature	Temperature	-40℃~+65℃
	Suction temperature	-40℃~+65℃
	Discharge temperature	≤90℃+Ambient temperature(Water cooling)

Technical information on scroll-type oil-free air compressor

Compressor style	Oil-free scroll air compressor
The compression medium	Air
Normal speed	1800-3200rpm
Power supply voltage	380VAC Three-phase
Compressor cooling method	Forced water cooling
Weight	44kg(including motor and controller)
Shell	Electroplating on aluminum parts
Installation method	Bolt connection
Installation size	Drawing 4 - M10 mounting position and motor metal waterproof connector
Outline dimension	334*300*354
Suction pipe inner size	Outer diameter Φ25
Exhaust pipe inner size	Φ25 M22*1.5 Compression fitting
Hydraulic pressure of coolant	＜1bar
External coolant flow rate	≥10L/min
Coolant inlet temperature	≤65℃











Speed(rpm)	3200
Rated flow (L/min)	≥480
Applied power(KW)	≤5.8(including motor and controller)
Power to flow ratio	≤12(including motor and controller)









Speed(rpm)	3200
Noise level,dB(A)	≤65





















Before troubleshooting, the power supply must be disconnected. Always disconnect the main power supply and release the pressure inside the air compressor before any repairs or maintenance.





The air compressor can only be inspected after it has cooled to a temperature where it can be touched by hand. Do not use cold water to cool it directly.
