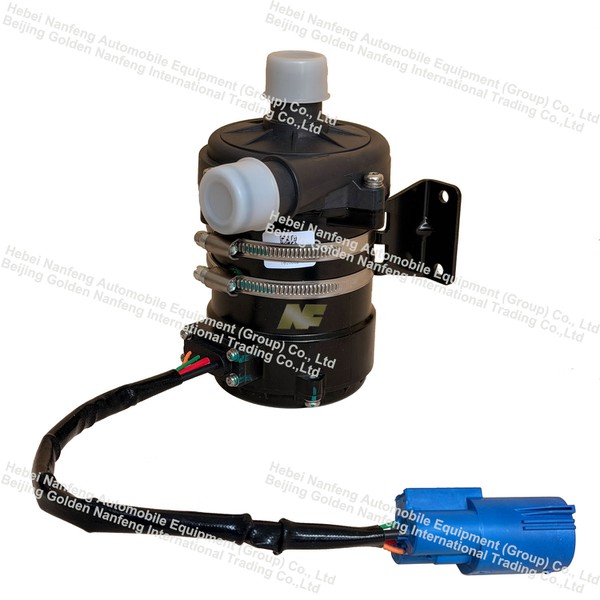

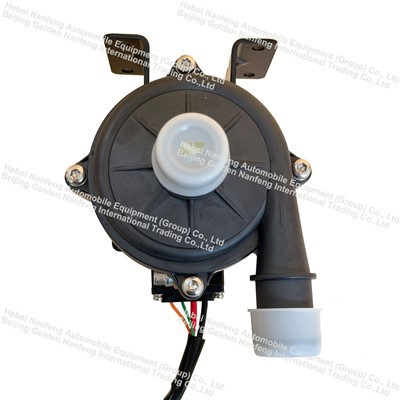

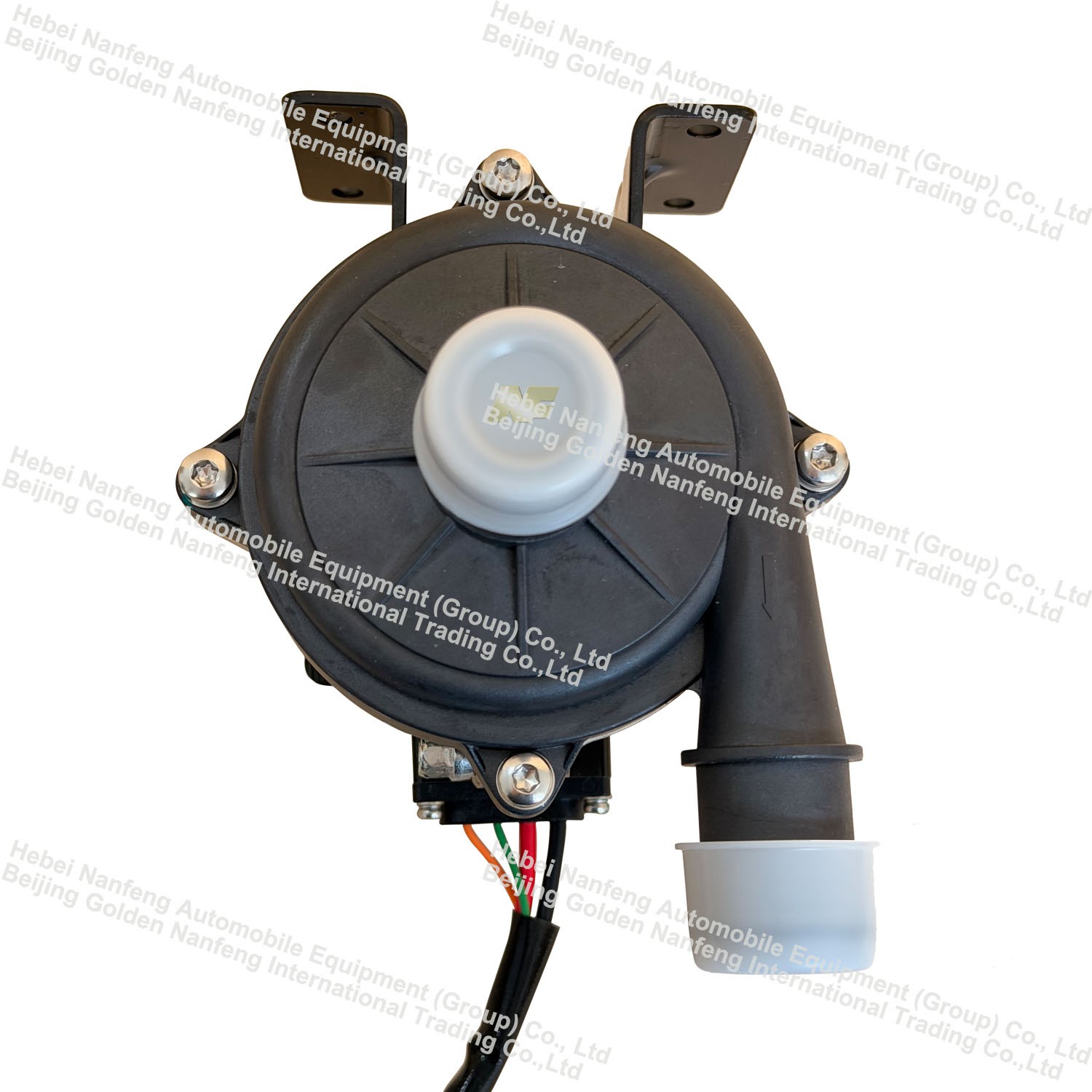

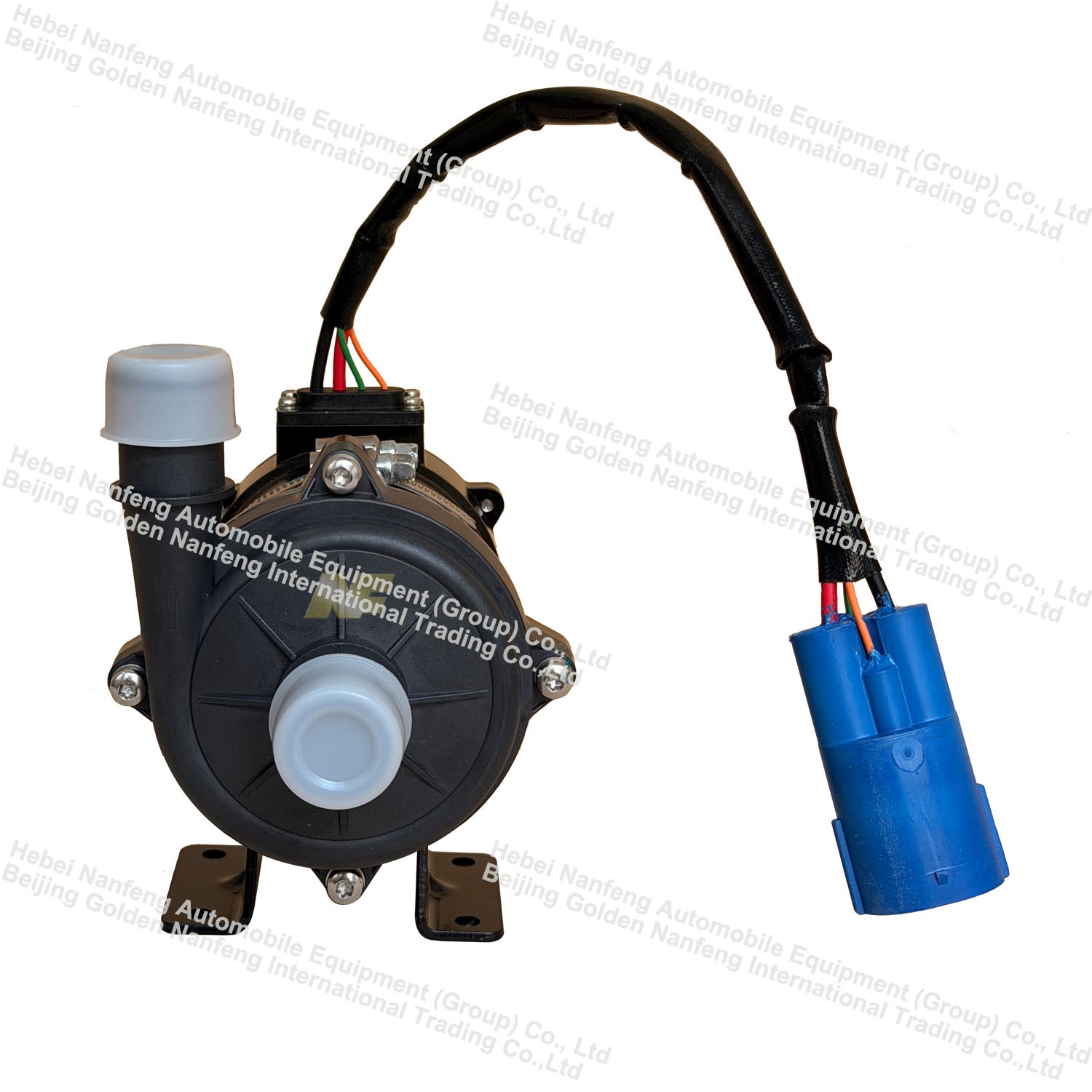

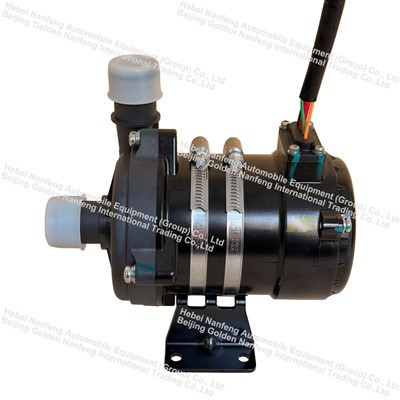

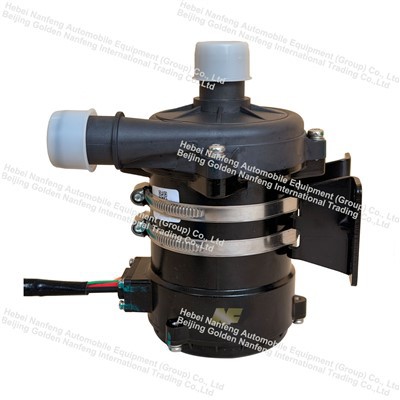

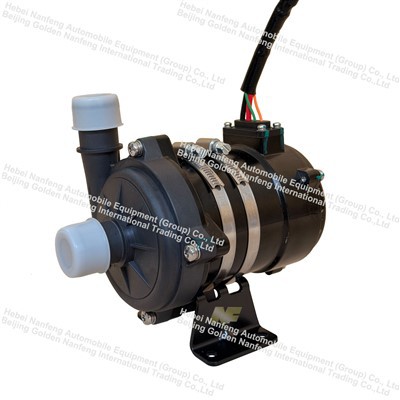

600W Electric Vehicle Liquid Cooling Pump

If you're looking for the 600w electric vehicle liquid cooling pump, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.

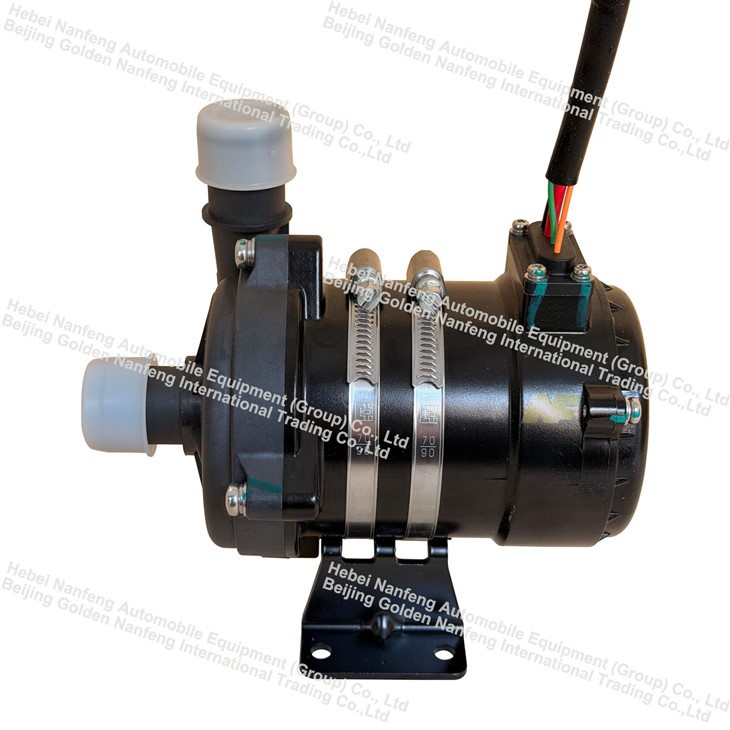

600W Electric Vehicle Liquid Cooling Pump









This electronic water pump is a speed-adjustable pump with a brushless DC motor driving the impeller. The brushless motor is driven by a controller.

This electronic water pump can be used in automotive engine main cooling systems, auxiliary cooling systems, battery pack cooling systems, and energy storage devices. It provides energy for coolant flow to various heat dissipation points, enabling various thermal control systems to function optimally and ensuring stable operation.

The electronic water pump can be speed-controlled via CAN bus, thereby adjusting the pump's operating status. In addition to its basic functions, the pump also has corresponding protection functions.













Basic Parameters



Model Number	02.03.732.3405
Ambient Temperature	-40ºC~+125ºC
Storage temperature	-50ºC~+125ºC
Rated Voltage	24V
Voltage Range	DC18V~DC32V
Waterproofing Grade	IP67
Service life	≥20000h
Noise	≤60dB at a distance of 1 meter
Input power	600W

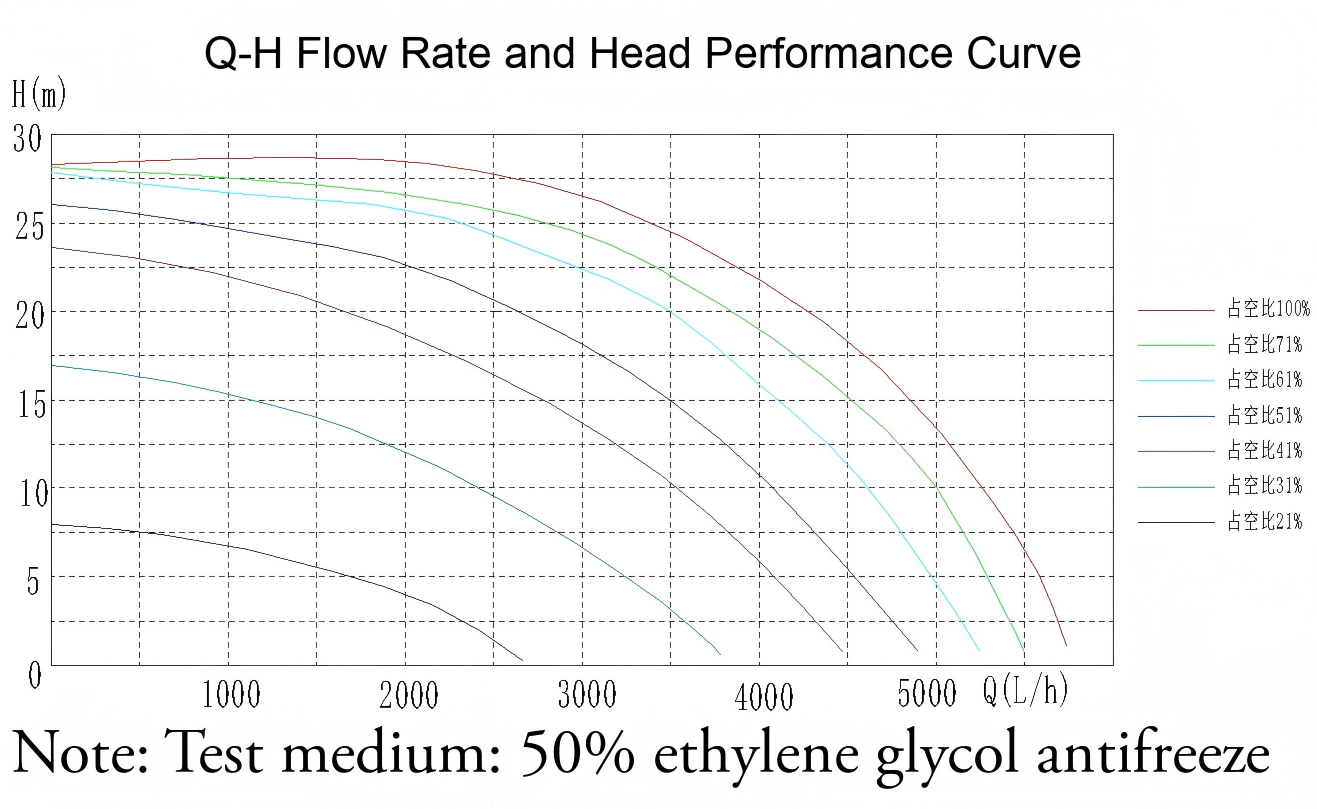

Flowing	≥3500L/h@24m

Performance parameters



Color	Black
Environmental Rating	Complies with RoHS environmental requirements
Frame Material	ADC12, PPS+GF30
Sealing Performance	Test pressure 350KPa, test time 5s, leakage ≤80Pa
Working Principle	Centrifugal pump
Application	Vehicle-mounted water circulation cooling system

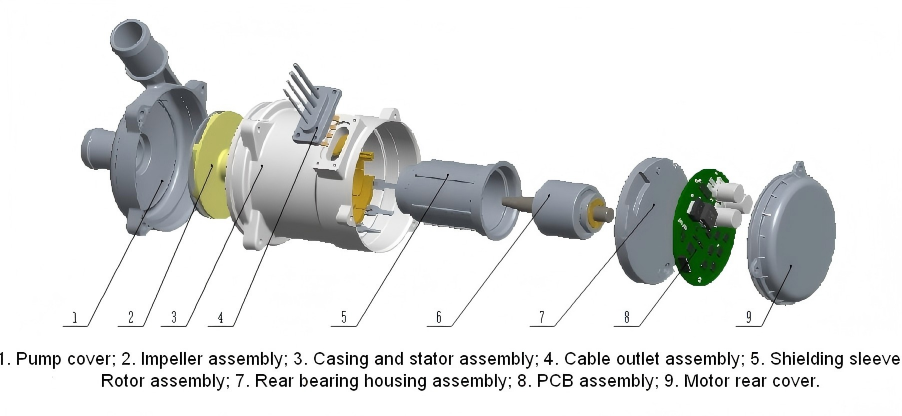

Product Explosion Diagram





This series of electronic water pumps is a brushless motor-driven canned pump. The main components are as follows:

A DC brushless motor including a rotor assembly (including an impeller assembly) and a stator housing (including a shielding sleeve and rear bearing housing assembly);

A controller (PCB assembly) for communicating with the main control unit and controlling the DC brushless motor;

A pump cover for connection to the vehicle, engine, and cooling system;

A brushless motor rear cover including a wiring assembly for connecting to the vehicle.





Installation Precautions



1. Install the pump away from high-temperature areas.

2. Antifreeze should meet national standards.

3. Minimize the use of bends in the piping layout.

4. Do not operate the pump for extended periods without a circulating medium.

5. Metal filings are not allowed in the piping.

6. Avoid fixing the water pump directly to the engine.

7. The distance between the water inlet and the water pump should not exceed 500mm.

8. Ensure the water pump bracket is securely fixed.







The controller and the electric water pump can communicate via CAN. Under normal operating conditions, the controller outputs different message signals to control the water pump's operating status and speed. Simultaneously, the water pump has self-diagnostic and protection functions. When the water pump is under abnormal operating conditions, such as overvoltage, undervoltage, stall, dry running, overcurrent, or overtemperature, the pump will execute its own protection strategy and provide feedback via the CAN signal line.
