Electric Coolant Pump For Cooling Systems

Name: Electric Coolant Pump For Cooling Systems Suppliers and Manufacturers China - Factory Quotation - NANFENG
Brand: Nanfeng
SKU: 309221423

This product is an intelligent electronic cooling water pump for vehicles developed by Hebei Nanfeng Automotive Equipment Group. It adopts 24V DC brushless drive + CAN bus communication control, with a rated power of 280W. It is specially designed for the thermal management system of the three electric components/engine of new energy commercial vehicles, construction machinery, and hybrid vehicles. It is used to circulate and transport 50% ethylene glycol antifreeze to achieve precise temperature control and heat dissipation of the battery, motor, electronic control, and heating system.

Send Inquiry

Description

If you're looking for the electric coolant pump for cooling systems, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.

Electric Coolant Pump For Cooling Systems

Products Description

ev water pumps1

OE NO.	NF02.03.622
Rated voltage	DC 24V
voltage range	18V~32V
Rated power	280W
Rated working condition	When the head is 20m, flow rate ≥2000L/h, current ≤12.5A
Maximum head	≥22.5m
Protection level	IP67
Ambient temperature	-40~125℃

Products Design

ev water pumps6

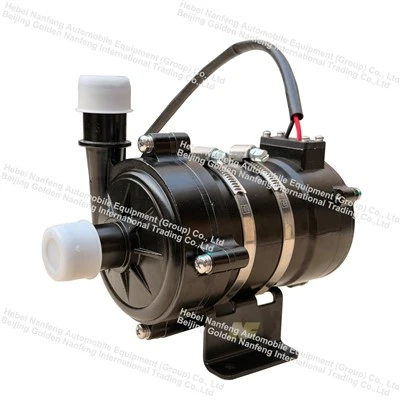

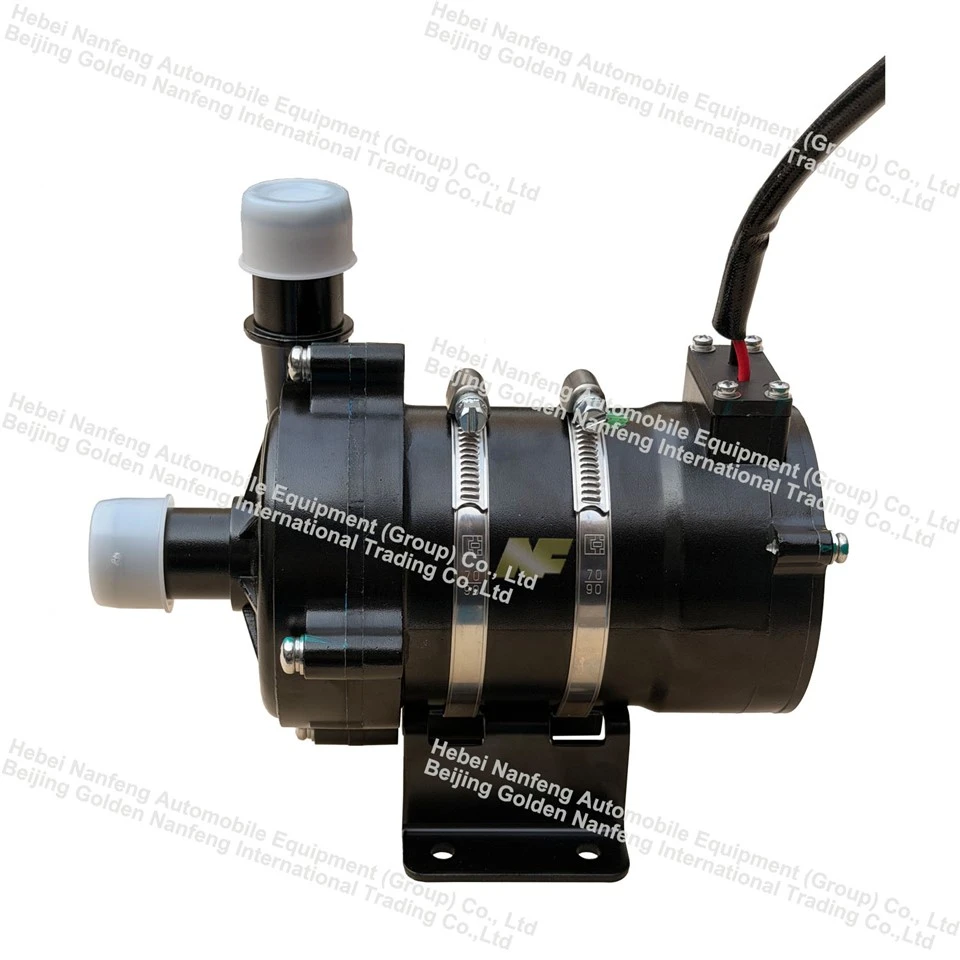

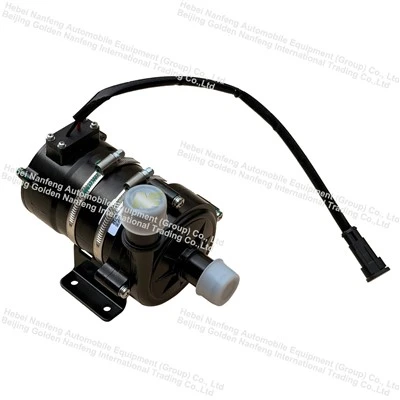

1. Structure: Integrated aluminum alloy housing for pump body and motor, stainless steel clamps for fixation, built-in mounting bracket, offset standard water pipe interface, sealed CAN junction box at the rear, easy to install and remove, leak-proof.

2. Motor and Electronic Control: 24V brushless motor, 280W power, built-in multiple protection circuits, intelligent speed control via CAN bus, can be linked with the vehicle control system.

3. Fluid Seal: Dedicated antifreeze resistant seals, impeller hydraulic structure ensures a flow rate of over 2000L/h at a 20m head.

4. Environmental Adaptability: IP67 dustproof and waterproof, wide operating temperature range of -40℃ to 125℃, overall lifespan of 20,000 hours.

5. Flexible Design: Standardized basic dimensions, wiring harnesses, brackets, and connectors can be customized according to vehicle model.

Products application

L5831-ptc-heater06

New energy buses/freight vehicles, hybrid construction machinery, special-purpose vehicles: battery pack liquid cooling, drive motor cooling, electronic control MCU heat dissipation, and vehicle heating circulation systems.

Products advantage

622-water-pump04

1. Intelligent Energy Saving: CAN precise speed regulation outputs coolant on demand, reducing ineffective power consumption compared to mechanical belt-driven water pumps and improving vehicle range;

2. High Reliability and Wide Temperature Range: IP67 protection + multi-dimensional electrical protection, stable operation across the entire temperature range of -40℃ to 125℃;

3. Long Lifespan and Low Maintenance: Brushless magnetic drive structure, no carbon brush wear, 20,000 hours of long-term operation;

4. Strong Adaptability: Standardized connectors and installation structure, while also supporting customized modifications, adaptable to multiple vehicle platforms.
