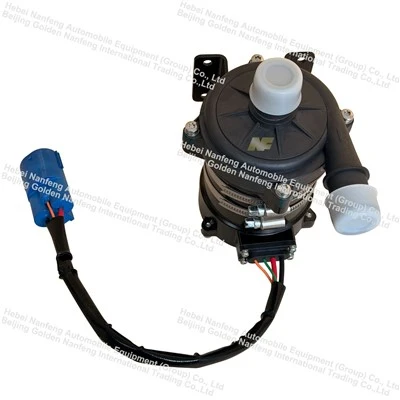

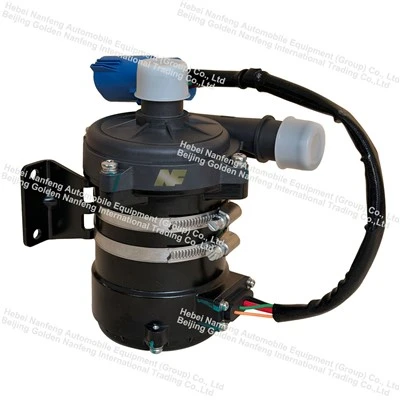

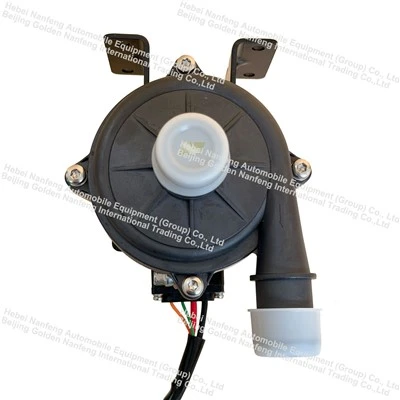

Electric Truck Electronic Water Pump
Manufactured by NF Group, the electronic water pump serves as a core fluid circulation component for thermal management systems. It is widely applicable to automotive engine primary cooling circuits, auxiliary cooling loops, battery pack cooling systems, energy storage devices and other equivalent cooling applications.
Description
If you're looking for the electric truck electronic water pump, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
Electric truck electronic water pump
Products Description
Manufactured by NF Group, the NF electronic water pump serves as a core fluid circulation component for thermal management systems. It is widely applicable to automotive engine primary cooling circuits, auxiliary cooling loops, battery pack cooling systems, energy storage devices and other equivalent cooling applications. The pump delivers steady power to drive coolant circulation throughout diverse heat dissipation pipelines, enabling all matched thermal management systems to operate at optimal efficiency and sustain stable long-term performance.
Equipped with CAN bus speed regulation, the electric truck electronic water pump realizes precise closed-loop control of operating speed. Beyond fundamental circulation capability, the unit integrates a full suite of built-in protection mechanisms to safeguard system reliability under complex working conditions.
 |
 |
 |
 |
 |
 |
Structural Composition
The pumps in this series feature a brushless motor-driven canned pump structure. The main components are as follows:
- A brushless DC motor, comprising a rotor assembly (including the impeller assembly) and a stator housing assembly (including the canning sleeve and rear bearing seat assembly);
- A controller (PCB assembly), used to communicate with the main control unit and regulate the brushless DC motor;
- A pump cover, designed for connection to the vehicle, engine, and cooling system;
- A brushless motor rear cover, incorporating a wiring harness assembly for connection to the vehicle.
Products parameters
Basic Parameters
|
1 |
Product Name |
Electronic water pump |
|
2 |
Product Model |
02.03.732.3405 |
|
3 |
Rated Voltage |
DC24V |
|
4 |
Operating Voltage Range |
DC18V～32V |
|
5 |
Rated Current |
≤25.5A |
|
6 |
Input Power |
600W |
|
7 |
Rated Flow Rate |
≥3500L/h@24m |
|
8 |
Maximum Head |
≥27m |
|
1 |
Operating temperature |
-40℃~125℃ |
|
2 |
Storage temperature |
-50℃~125℃ |
|
3 |
Liquid type |
Antifreeze |
|
4 |
Power supply type |
DC power supply |
Recommended Installation Angle
|
|
|
| a) Upon completion of installation, maintain the angle between the centerline of the inlet and the horizontal plane within the range of -5° to +5°, as shown in the figure. | b) Upon completion of installation, maintain an angle between the centerline of the outlet and the horizontal plane within the range of -5° to +90°, as shown in the figure. |
Products Electrical connection
|
|
PIN |
PIN |
Description |
Maximum operating current |
|
1 |
Positive terminal of power supply |
Power |
25.5A |
|
| 2 | Negative terminal of power supply | Power | 25.5A | |
| 3 | CAN-H | Signal output | 10mA | |
|
4 |
CAN-L |
Signal intput |
10mA |
Communication Interface Circuit Schematic
| Water Pump Side CAN Interface Circuit |  |
application
our certificates
|
|
|
company profile
Hebei Nanfeng Automobile Equipment (Group) Co., Ltd. (NF Group)
Founded in 1993, NF Group is a professional high-tech manufacturer focusing on automotive and new energy thermal management components, integrating independent R&D, intelligent production and global sales. Our foreign trade platform Beijing Golden Nanfeng International Trading Co., Ltd. is responsible for overseas business expansion.
We own multiple production bases, self-built EMC testing laboratory and professional R&D center. The company has passed IATF16949, ISO14001, CE, E-Mark and other authoritative certifications, and has long-term supporting cooperation with many well-known domestic vehicle manufacturers. Our products are exported to Europe, Russia, Southeast Asia and other more than 40 countries and regions.
As one of our core flagship products, NF electronic water pump is developed for fluid circulation in thermal management loops. It is widely applied to automotive engine primary cooling circuits, auxiliary cooling systems, new energy battery pack cooling systems, energy storage equipment and analogous thermal management scenarios.
Our thermal management product portfolio also covers high-voltage PTC coolant heaters, Oil-free Scroll Air Compressors, heat exchangers and other key components. NF Group keeps providing reliable, customized thermal management solutions for commercial vehicles, passenger EVs, engineering machinery and energy storage equipment worldwide.
We sincerely welcome global partners to negotiate OEM & ODM cooperation and create win-win development.
