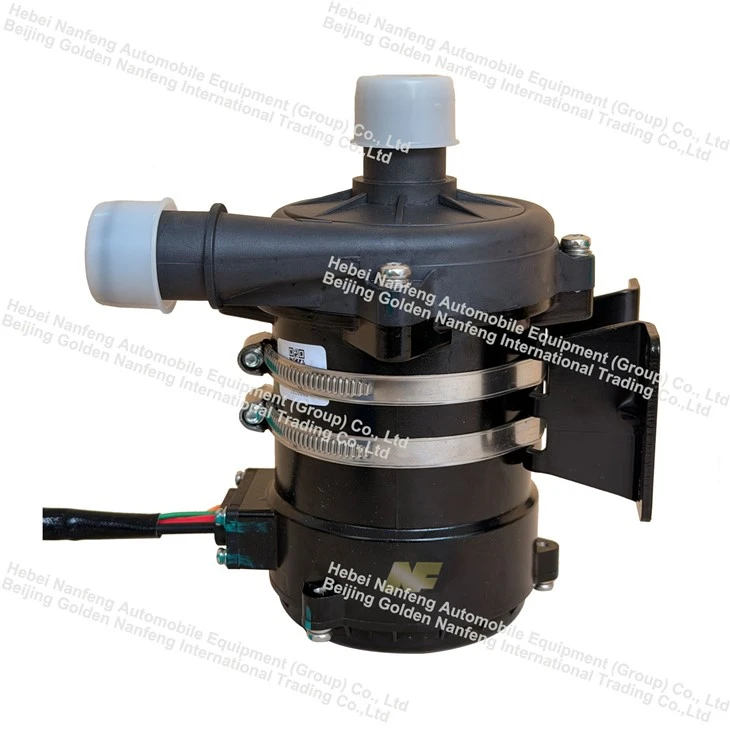

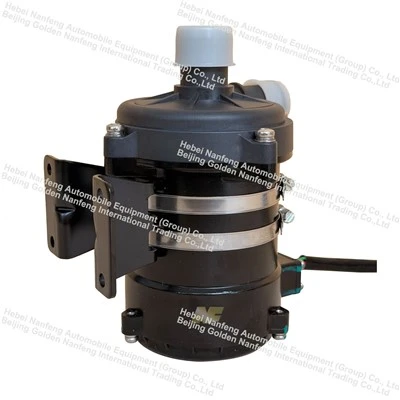

New Energy Vehicle Circulation Coolant Pump

Name: New Energy Vehicle Circulation Coolant Pump Suppliers and Manufacturers China - Factory Quotation - NANFENG
Brand: Nanfeng
SKU: 310089881

NF new energy electric water pump is mainly used for the cooling, and dissipation of heat of electric motors, controllers, batteries and other electrical appliances in new energy (hybrid and pure electric vehicles).

Send Inquiry

Description

If you're looking for the new energy vehicle circulation coolant pump, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.

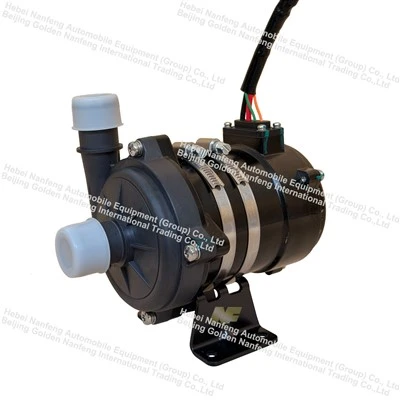

New Energy Vehicle Circulation Coolant Pump

Products Description

732-ev-water-pump01

Basic Parameters

Model Number	02.03.732.3405
Ambient Temperature	-40ºC~+125ºC
Storage temperature	-50ºC~+125ºC
Rated Voltage	24V
Voltage Range	DC18V~DC32V
Waterproofing Grade	IP67
Service life	≥20000h
Noise	≤60dB at a distance of 1 meter
Input power	600W
Flowing	≥3500L/h@24m

Performance parameters

Color	Black
Environmental Rating	Complies with RoHS environmental requirements
Frame Material	ADC12, PPS+GF30
Sealing Performance	Test pressure 350KPa, test time 5s, leakage ≤80Pa
Working Principle	Centrifugal pump
Application	Vehicle-mounted water circulation cooling system

curve 1

Product Explosion Diagram

product-902-416

This series of electronic water pumps is a brushless motor-driven canned pump. The main components are as follows:

A DC brushless motor including a rotor assembly (including an impeller assembly) and a stator housing (including a shielding sleeve and rear bearing housing assembly);

A controller (PCB assembly) for communicating with the main control unit and controlling the DC brushless motor;

A pump cover for connection to the vehicle, engine, and cooling system;

A brushless motor rear cover including a wiring assembly for connecting to the vehicle.

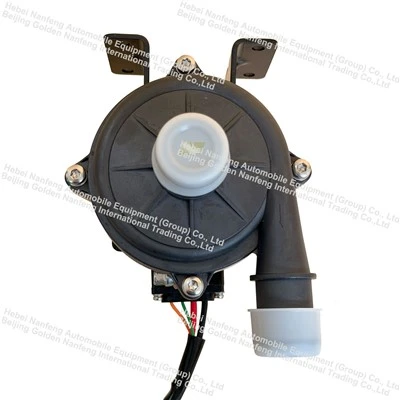

Products installation

ev water pump7

Recommended installation angles:

a) After installation, maintain an angle between the center line of the inlet and the horizontal plane between -5° and +5°.

b) After installation, maintain an angle between the center line of the outlet and the horizontal plane between 5° and +90°.

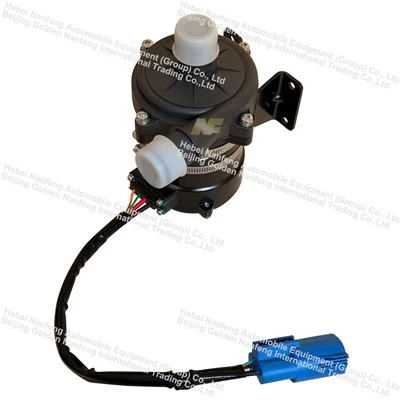

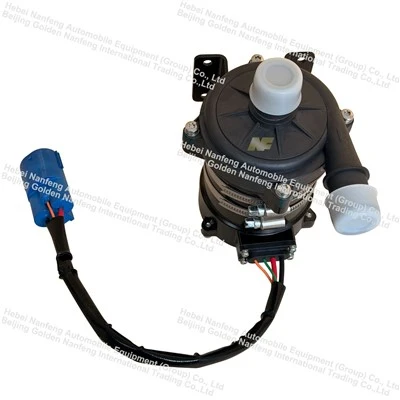

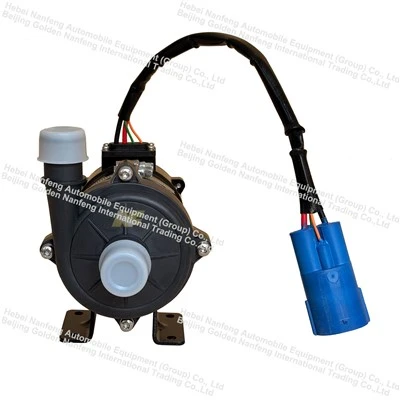

Products Electrical connection

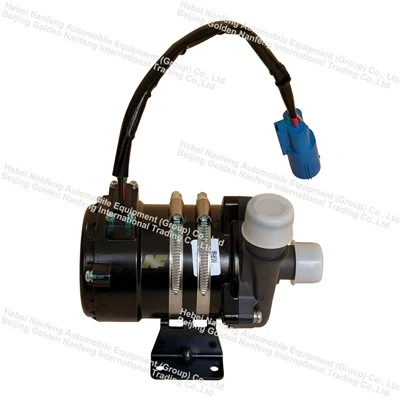

ev water pump10

The controller and the electric water pump can communicate via CAN. Under normal operating conditions, the controller outputs different message signals to control the water pump's operating status and speed. Simultaneously, the water pump has self-diagnostic and protection functions. When the water pump is under abnormal operating conditions, such as overvoltage, undervoltage, stall, dry running, overcurrent, or overtemperature, the pump will execute its own protection strategy and provide feedback via the CAN signal line.

Products Precautions

ev water pump3

Stalled Rotor Protection

If a foreign object in the pipeline causes the rotor to seize, the pump will automatically stop and send a fault signal. It will restart after 3 seconds. If the fault persists, the pump will restart 50 times before stopping.

Dry Run Protection

When the pump speed exceeds 3700 rpm, if the power consumption is less than 40W, the pump will enter a low-speed operation state. It will stop after 15 minutes and report a fault. It will resume operation after power is restored. If the pipeline returns to normal during low-speed operation, the pump will exit the low-speed operation state.

Overcurrent Protection

If the pump detects a current greater than 40A, it will stop and send a fault signal. It will restart after 3 seconds. If the fault persists, the pump will restart 50 times before stopping.
