8KW Thick Film Heater For Ev Truck

Name: 8KW Thick Film Heater For Ev Truck Suppliers and Manufacturers China - Factory Quotation - NANFENG
Brand: Nanfeng
SKU: 285652914

NF Group is the largest electric heater manufacturer in China. Now we have launched a new product: a 7-15 kW thick film electric heater, which has been supplied in batches. This product has the advantages of ultra-high thermal efficiency, strong pressure resistance, ultra-long life, ultra-safety, and simple structure.

Send Inquiry

Description

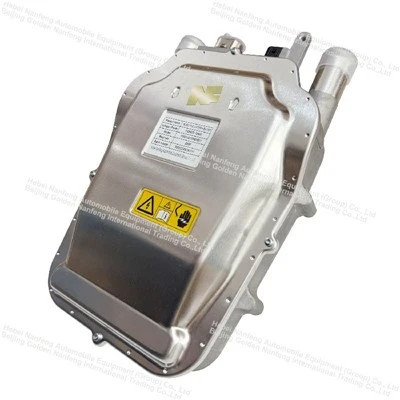

8KW Thick Film heater for ev truck

Products Description

Thick Film heater

This high-pressure film heater is suitable for electric/hybrid/fuel cell vehicles, primarily serving as the main heat source for cabin temperature regulation. It is suitable for both driving and parking modes. During the heating process, electrical energy is effectively converted into heat energy by the thick-film heating element, resulting in faster heating than internal combustion engines. It can also be used for battery temperature regulation (heating to operating temperature) and fuel cell start-up loads.

This high-pressure film heater utilizes thick-film heating technology to meet the high-voltage safety requirements of passenger vehicles. Furthermore, it meets the relevant environmental requirements for components within the engine compartment.

OE NO.	HVCH-Q8
Rated power	8KW(OEM 7KW~15KW)
Rated Voltage	DC600V(OEM 350V~890V)
Voltage Range	DC450V~DC750V
Control Low Voltage	9V~32V
Control Signal	CAN
Over dimension (L* W* H)	277.5mmx198mmx54mm
Inlet and Outlet Water Joint Dimension	Ø25mm

Products Design

electric coolant heater 8

High-pressure film heaters are used to replace the engine block as the primary heat source. They work by supplying power to a thick-film heating element, causing it to heat up, and then heating the medium in the circulating piping of the heating system through heat exchange.

Products features

Key performance characteristics are as follows:

Compact structure, high power density, and flexible adaptability to vehicle installation space.

Redundant sealing design improves system reliability.

600v Thick Film Heating Element For EV

Products safty

The HVCH electric heater has a self-protection function. During normal operation, it can monitor its own operating status in real time and feed it back to the vehicle controller via the CAN interface. If any abnormality is detected, it can promptly take protective measures, such as automatically limiting the heating temperature and operating current.

The vehicle controller is responsible for monitoring the insulation condition of the HVCH electric heater.

8KW Rare Earth Thick Film Heater
