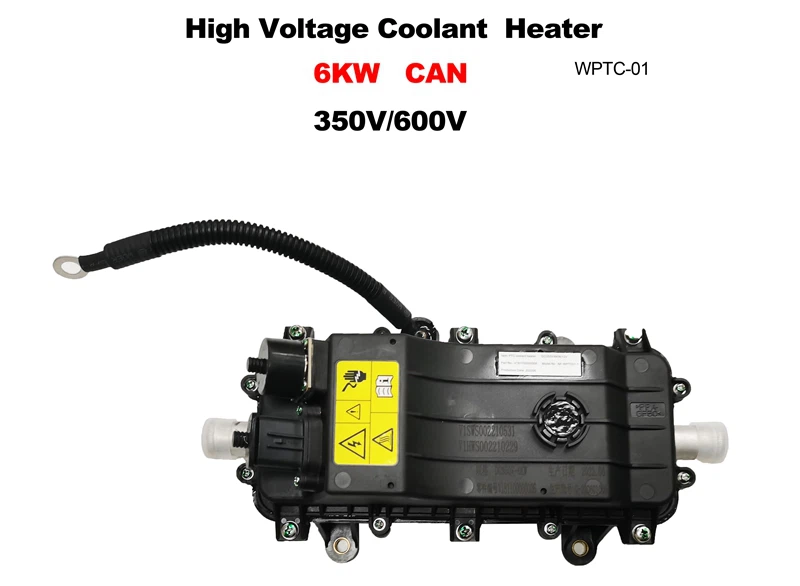

Introduction of 6kw electric PTC parking heater
PTC water heater can provide heat for the cockpit of new energy vehicles and meet the standard of safe defrosting and defogging. It also provides heat to other parts of the vehicle that require temperature regulation, such as the battery.
Feature:
Electricity is used to heat the antifreeze, and the heater is used to heat the interior of the car.
Installed in the water cooling circulation system
Warm air soft temperature controllable
Adopt PWM to adjust and drive IGBT to adjust power
With short-term heat storage function
Vehicle cycle, support battery thermal management
Environmental protection

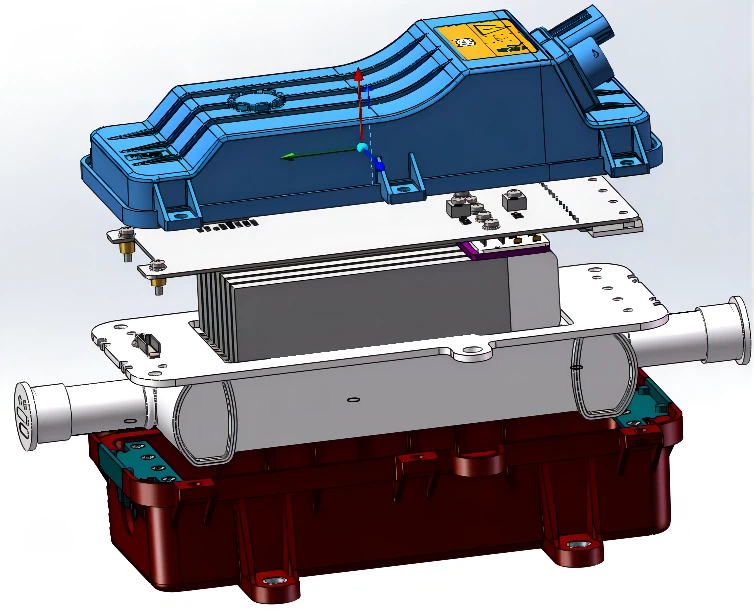

Product explosion diagram
According to the voltage requirement of 600V, the PTC sheet adopts 3.5mm thickness and Tc210℃, which ensures good withstand voltage and durability. The internal heating core components of the product are divided into 4 groups, which are controlled by 4 IGBTs.In order to ensure the protection level of the product IP67, the heating core component of the product is installed into the lower base, sealed with potting glue in the lower base, and potted to the upper surface of the D-shaped tube. After assembling other parts, use a gasket to press and seal between the upper and lower bases to ensure good waterproof performance of the product.
