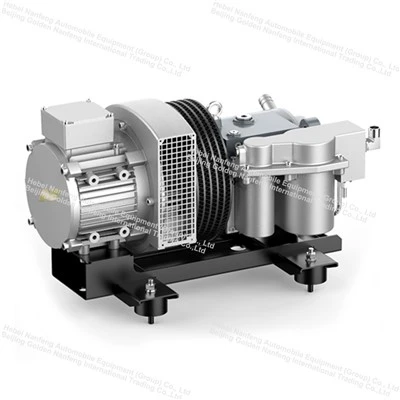

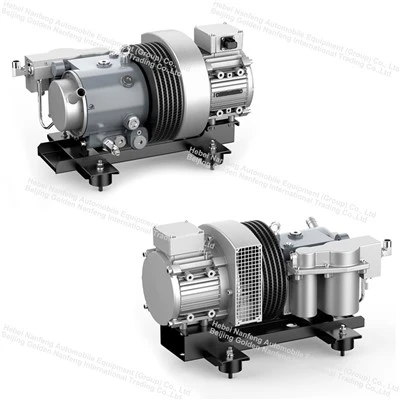

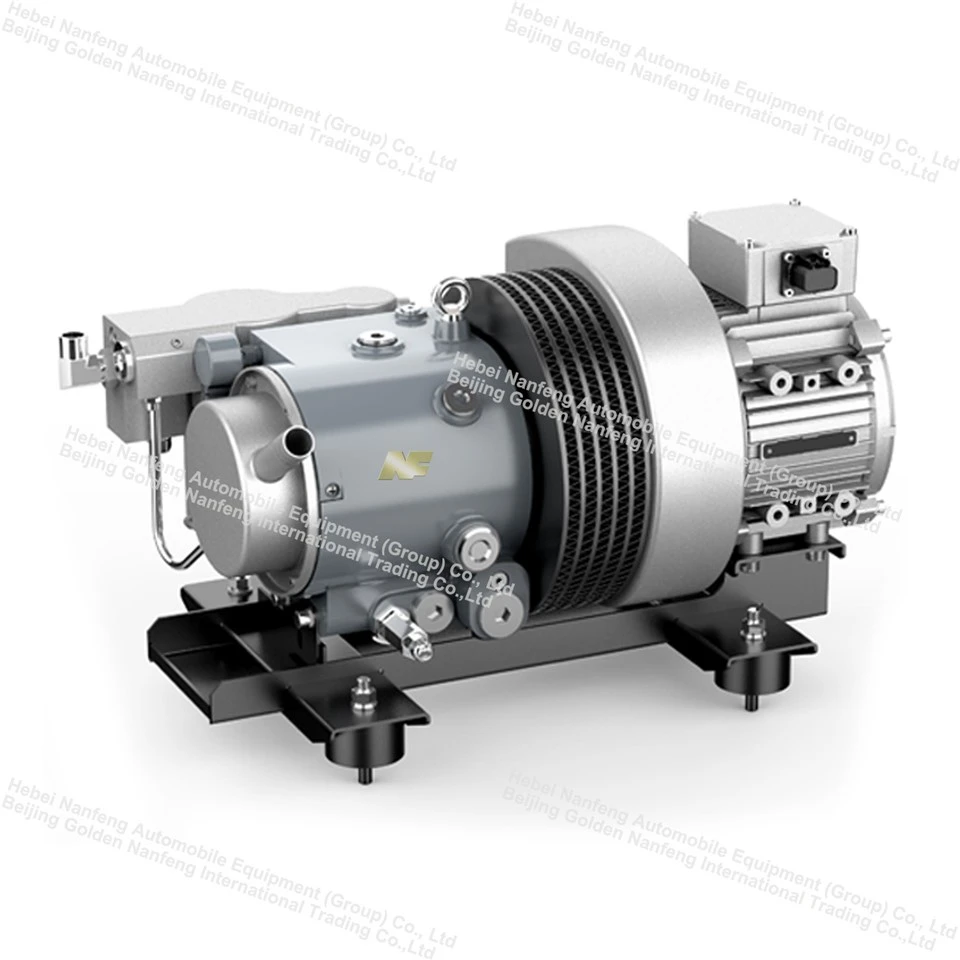

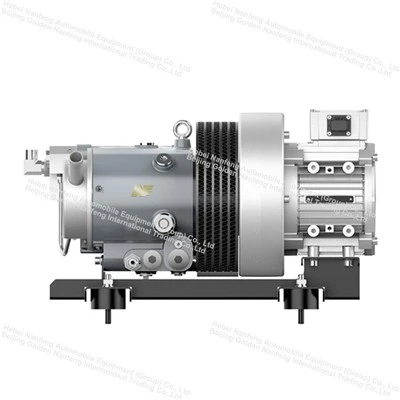

Air Compressor For Electric Bus
The oil-free vane air compressor, designed specifically for electric buses/new energy buses, provides compressed air for the vehicle's pneumatic systems (doors, brakes, air suspension).
Description
If you're looking for the air compressor for electric bus, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
Air Compressor For Electric Bus
Products Description
| OE NO. | NFAZH | |||
| Specifications | 1.5kw | 2.2kw | 3.0kw | 4.0kw |
| Flow rate(m³/min) | 0.15 | 0.2 | 0.27 | 0.36 |
| Working pressure (Bar) | 10 | 10 | 10 | 10 |
| Max Pressure (Bar) | 11 | 12 | 12 | 12 |
| Vibration(mm/s) | 7.0 | 7.1 | 7.1 | 7.1 |
| Noisy Level (dbA) | 72 | 72 | 72 | 72 |
| Allow Ambient Temperature (℃) |
Nominal Oil：-25~65 Low Temp Oil：-40~65 |
Nominal Oil：-25~65 Low Temp Oil：-40~65 |
Nominal Oil：-25~65 Low Temp Oil：-40~65 |
Nominal Oil：-25~65 Low Temp Oil：-40~65 |
| Input rated power KW/(m³/min) | ≤11.6 | ≤11.6 | ≤11.1 | ≤10.6 |
| Exhausted Air temperature(℃) | ≤110 | ≤110 | ≤110 | ≤110 |
Products Design

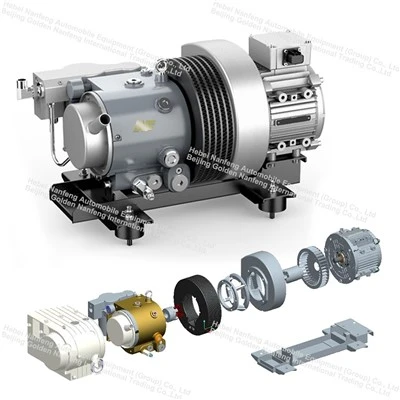

Partial design drawings
Air intake system
Compression host system
Three-stage oil-gas separation system
Cooling system
Exhaust system
Products application
Related products
-
Battery thermal management system
-
Steering pump
Products advantage
1. Suitable for both high and low temperatures, operating stably in both extreme cold and heat, with low exhaust temperature to prevent oil emulsification.
2. Low vibration and noise, allowing for quiet operation even when installed on bus chassis, minimizing passenger disturbance, and preventing leaks in the piping.
3. Higher power models offer greater energy efficiency, saving electricity and making them compatible with new energy buses.
4. Upgraded sealing and oil-gas separation structures result in less oil leakage and a lower failure rate.
5. Four power options are available, suitable for buses of all sizes, with simple and convenient maintenance.
Products FAQ
Q1: Can it be used at -40℃?
A: By changing to low-temperature lubricating oil, it can operate stably in ambient temperatures ranging from -40℃ to 65℃.
Q2: Is the operating noise loud?
A: The noise level of all models is 72dB(A), with low vibration, which will not affect passengers inside the vehicle.
Q3: Which power output should I choose for different vehicle models?
A: Choose 1.5/2.2kW for minibuses and 3.0/4.0kW for large buses.
Q4: Will it be prone to oil leaks or oil emulsification?
A: Integrated oil circuit + three-stage oil-gas separation, and insulation structure to inhibit emulsification, resulting in a low oil leak failure rate.
Q5: Are higher power models more energy-efficient?
A: Yes, the higher the power, the lower the energy consumption per unit of gas produced, resulting in greater energy savings in the long run.
