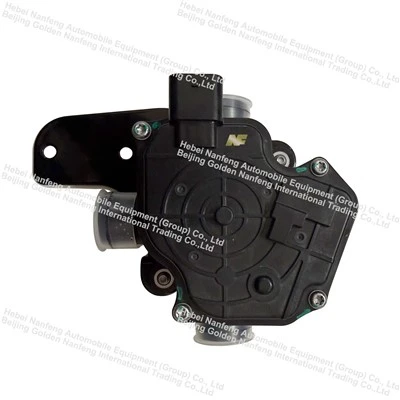

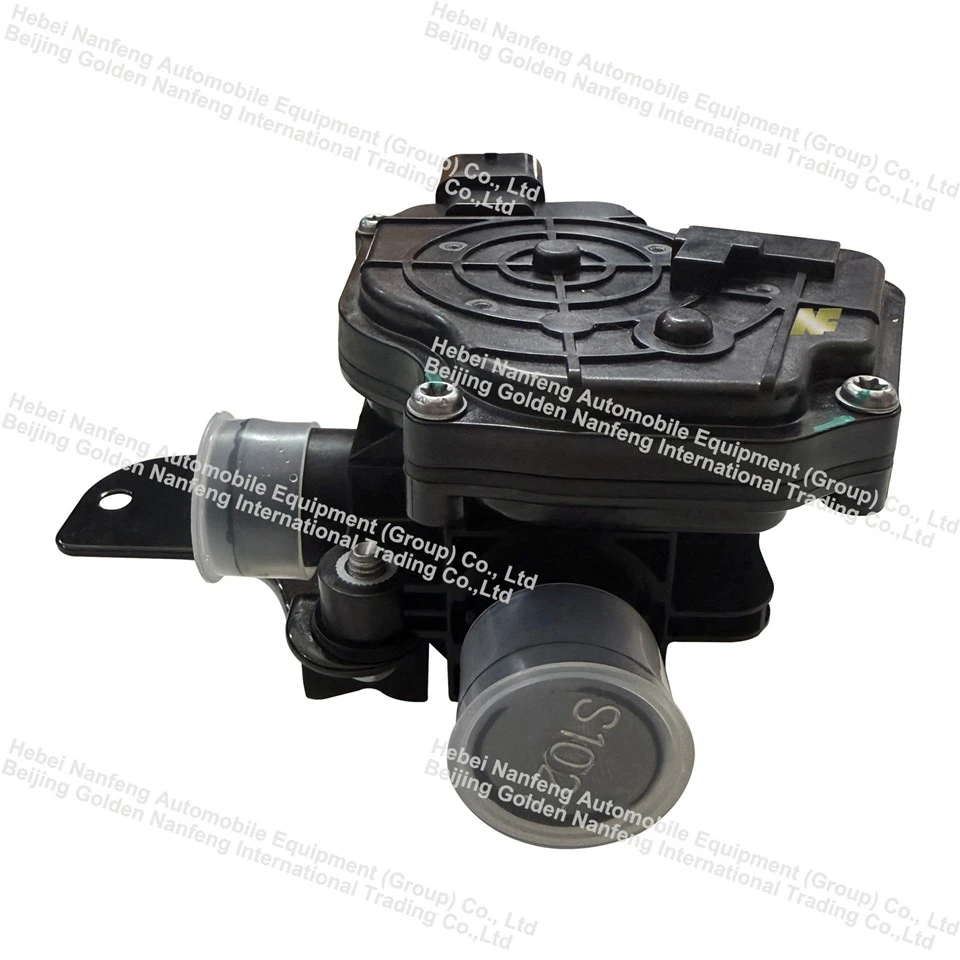

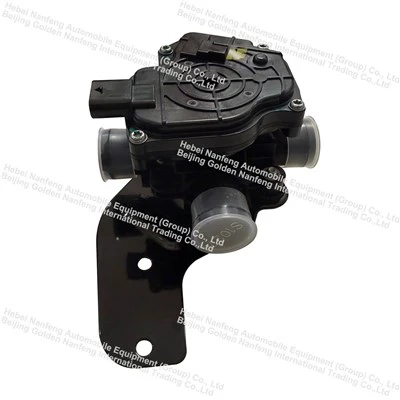

Electric 3 Way Valve

1. Multi-channel flow switching: Three-channel pipe interface allows for water path switching, diversion, and merging. Coolant flow direction is switched according to vehicle VCU/BMS commands to meet the needs of multiple operating conditions, including battery cooling, battery preheating, motor cooling, and cabin heating.

2. Intelligent electronic control drive: Built-in actuator motor and position feedback sensor receive vehicle control signals, precisely adjust valve opening, and provide real-time valve position feedback, ensuring high control accuracy and rapid response.

3. Integrated mounting bracket: Matching custom metal mounting brackets allow for direct assembly at vehicle points, reducing pipe connections and simplifying vehicle assembly processes.

4. Reliable sealing and durability: Automotive-grade plastic valve body structure provides excellent sealing performance, resists coolant corrosion, withstands alternating high and low temperature environments, meets long-term vibration conditions in vehicles, and is compatible with ethylene glycol coolant.

5. Standard automotive connector: Dedicated automotive connectors interface with vehicle wiring harnesses, are vibration-resistant, prevent loosening, and ensure stable electrical connections.

The battery thermal management system is a core subsystem of new energy vehicles, primarily responsible for temperature control of the power battery to ensure it operates within a suitable temperature range. The three-channel electronic water valve is an actuator within the system, responsible for switching the flow of cooling water, allocating cooling/heating circuits, and working in conjunction with the water pump to complete the entire temperature control process.
