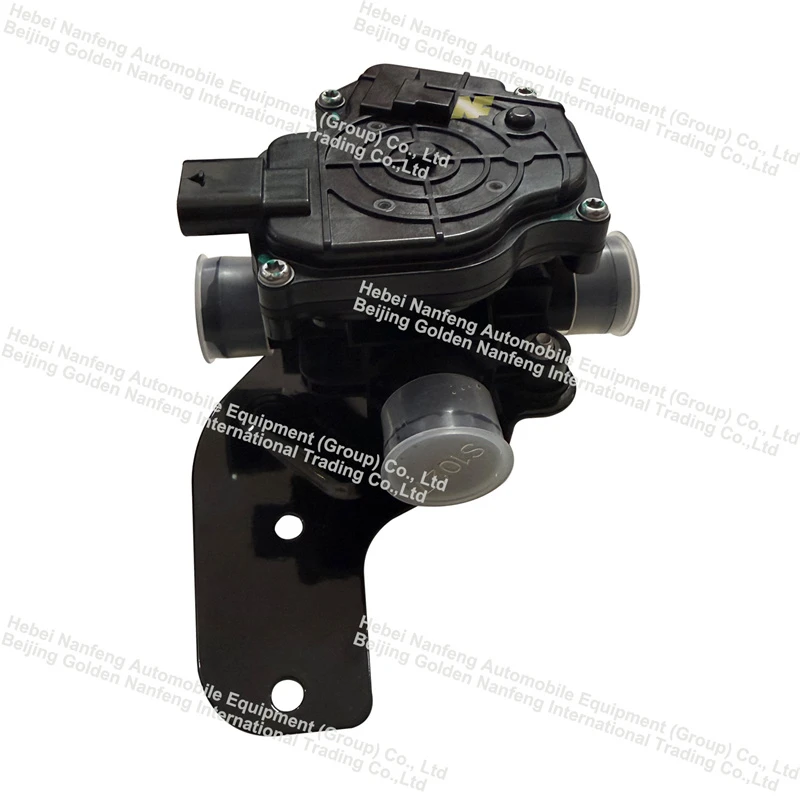

Auto Cooling 3 Way Heater Water Valve
The three-way valve for air conditioning in new energy vehicles is a key component in the thermal management system, mainly used to precisely control the direction and flow rate of refrigerant in the air conditioning circuit.
Description
If you're looking for the auto cooling 3 way heater water valve, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
Auto Cooling 3 Way Heater Water Valve
Products Description
The three-way valve is a "smart switch" for thermal management in new energy vehicles, responsible for distributing coolant/refrigerant to ensure that the battery, motor, and air conditioner operate at the appropriate temperature.
The coolant in new energy vehicles needs to be temperature-controlled in three places:
-- Battery
-- Motor and electronic control system
-- Air conditioning heat pump
The three-way valve in a new energy vehicle is a core control component of the thermal management system. It typically has one inlet and two outlets, with the flow path switched electronically.
Core functions:
(1) Coolant/refrigerant flow switching: Controls the circulation path of the battery, motor, air conditioning, and other circuits.
(2) Flow distribution: Adjusts the flow rate of each circuit as needed to achieve precise temperature control.
(3) Mode switching: Supports cooling, heating, heat dissipation, and waste heat recovery modes.
Products Parameter
| No | Parameter name | Values |
| 1 | Water valve internal leakage | ≤20mL/min (water test), 30kPa pressure difference |
| 2 | Water valve external leakage | ≤5mL/min (gas test), 340kPa (gauge pressure) |
| 3 | Mode switching response time | <10s |
| 4 | Control method | LIN |
| 5 | Standard operating voltage | 24V |
| 6 | Operating voltage range | 20V~30V |
| 7 | Lifespan | 300,000 switch cycles |
Electronic water valves use a DC motor and gearbox to control valve rotation, achieving reversing or flow regulation functions.
The valve position is controlled by a DC motor, gearbox, and position sensor. The position sensor outputs a corresponding voltage based on the valve angle.
Theoretical flow resistance curve of water valve (100% fully open)
| Medium | 50% ethylene glycol |
| Temperature | 25℃ |
| Outer diameter of the pipe | Φ25 |
| Flow | 5-50L/min |
Products Details
Installation and Usage Guidelines
The installation location diagram is shown below (allowed installation angles):
Connection requirements with the vehicle:
★ It is recommended to install rubber shock-absorbing pads at the bottom of the two M6 connection mounting holes, with a hardness of HA70~80.
Working Principle
The three-way valve for new energy vehicles mainly consists of a valve body, a motor drive mechanism, and an internal valve core. The motor drives the valve core to rotate or move, changing the flow path and flow ratio of the coolant between the three ports. It can realize single-pass conduction, dual-pass simultaneous conduction, and flow distribution adjustment. Thus, according to the temperature control requirements of the battery, motor, air conditioning and other systems, it can accurately control the flow of coolant to different cooling or heating circuits, and complete the intelligent switching and temperature control of the whole vehicle's thermal management.
A three-way valve distributes flow
If the battery is too hot → the valve switches to the battery cooling circuit.
If the battery is too cold → the valve switches to the heater/heater circuit.
If the motor is overheating → the valve switches to the motor cooling circuit.
If air conditioning is needed for heating → the valve directs the heat to the air conditioning system.
Products Application
