Automotive Ac Electric Compressor

Name: Automotive Ac Electric Compressor Suppliers and Manufacturers China - Factory Quotation - NANFENG
Brand: Nanfeng
SKU: 295832672

Our Electric Air Conditioning Compressor (EACC) incorporates a permanent magnet synchronous motor, directly powered by the vehicle's high-voltage battery. As the core power component for both in-vehicle cooling and auxiliary heating (in a heat pump system), it ensures comfortable interior temperatures while maximizing energy efficiency and extending the vehicle's driving range.

Send Inquiry

Description

If you're looking for the automotive ac electric compressor, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.

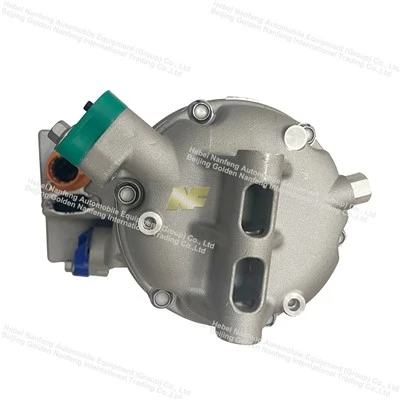

Automotive AC Electric Compressor

Products specifications

electric air compressor9

Compressor Specifications

Model	NFEZC45
Type	Electric scroll
Refrigerant	R290
Work temperature	-20℃~110℃
Storage temperature	-40℃~110℃
Voltage resistance	leakage current<10mA@2000V(AC)/50HZ
Electrical isolation	≥20MQ@1000V(DC)
Displacement	45CC/r
Speed range	800-8500rpm(Customizable)
Cooling method	sucion gas cooling
Refrigerant leakage rate	≤5g/year
Lubricating oil	PVE
Shell	Cast Aluminum Alloy Shot Peening
Total weight (including oil)	≤7.7kg(including oil)
Install position	near motor or gear case
Suction inner size	Φ28.4mm(Customizable)
Discharge inner size	Φ15.35mm(Customizable)
IP rating	IP67
Material restrictions	ROHS compliance, lead-free
Mechanical pressure release	4+0.4Mpa(A)
Suction operating pressure	0.1~0.5Mpa(A)
Discharge operating pressure	0.7~2.8Mpa(A)
Maximum operating pressure	2.8Mpa(A)
Corrosion resistance	500HRs later: functional and less than 5%surface area visual damage
Cleanliness	Impurity weight 10mg, size 0.5mm max, seal inlets and outlets, use dust caps for shipping

Motor Specifications

Motor type	PMSM
Number of poles	8
Stator winding Method	Y-type
Rated voltage	600V (DC)
Operating voltage range	400~850V(DC)
Rated power	6.5kw
Rated Speed range	800~8600rpm
Maximum power	7.5kW

Controller Specifications

Motor driver mode	Sine waveform
Magnetic pole detection method	Position sensorless
Rated voltage (HV)	600V (DC)
Operating voltage range (HV)	400-850V(DC)
Overvoltage value	(Customizable)
Under-voltage value	(Customizable)
Max input current	12.5A(calculation based on 600V)
Max input power	7.5kW
Rated power	6.5kW
Rated voltage (LV)	12/24V DC
Operating voltage range (LV)	9~32VDC

System requirements

Pressure protection		2.8Mpa(recommended)
Oil content		3%~5%(recommended)
Residual oil		40-80g
Requirements for the condenser	Start	5sCondensate fan runs for 5 seconds before the compressor starts
	Shut down	The 30s Condenser fan continues to run for 30 seconds after the compressor stops
Recommended mounting position		At the lowest point in the system (recommended)

Products Installation

Electric Vehicle Air Conditioning Compressor

The compressor body must not be installed at an angle (the axis must not be more than 10° from the horizontal, and the axis of the mounting lugs must not be more than 15° from the horizontal).

No heat source should be present within 30mm of the compressor.
