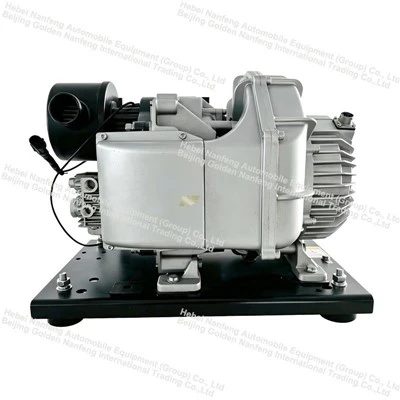

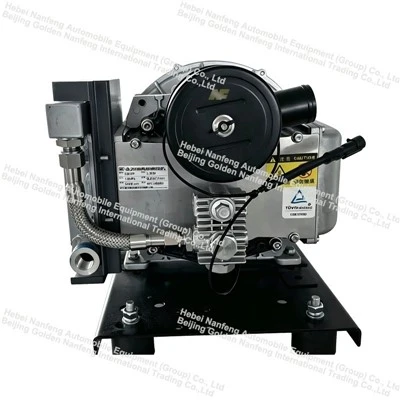

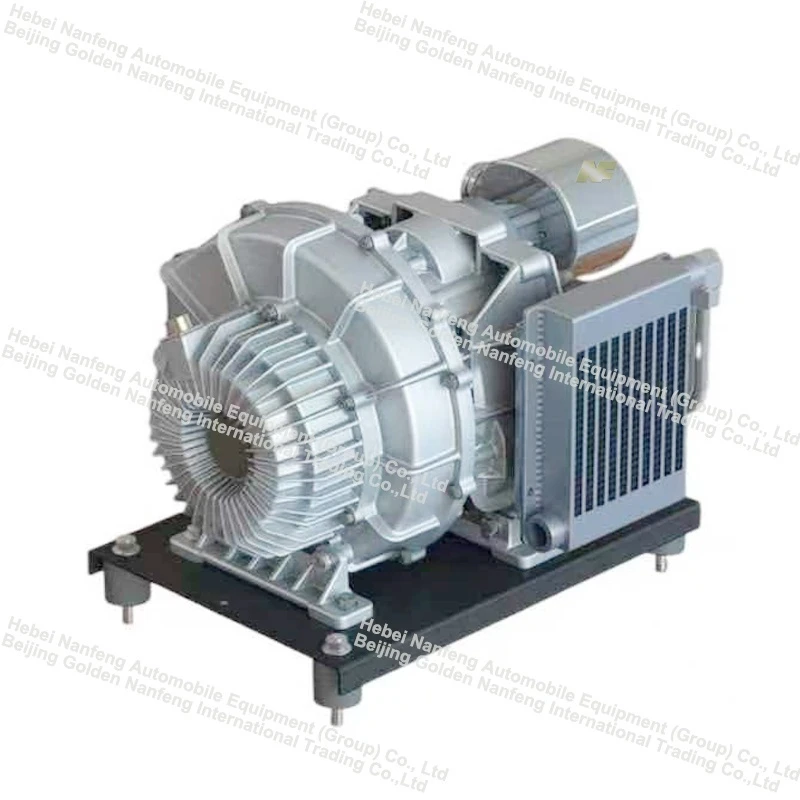

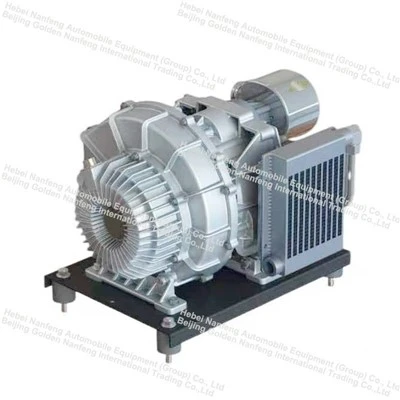

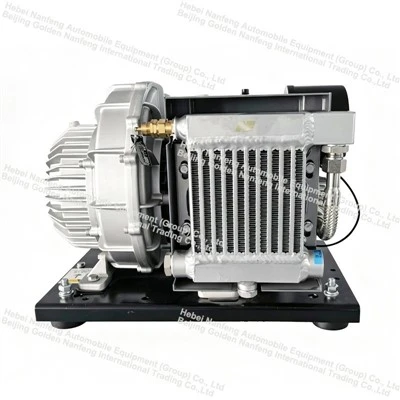

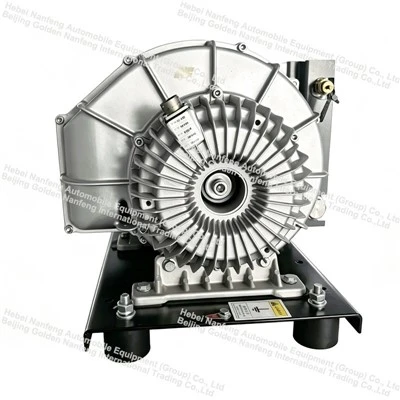

Scroll Air Compressor For Electric Vehicles
This oil-free scroll air compressor is specially developed for the braking air supply system of new energy buses, commercial vehicles, and special vehicles. It adopts the scroll compression principle to output clean oil-free compressed air, replacing the traditional oil-filled piston air compressor. It meets the air demand of new energy vehicles for braking, doors, suspension, etc. It has advantages such as high reliability, low noise, maintenance-free, and lightweight, and is suitable for pure electric and hybrid commercial vehicles.
Description
If you're looking for the scroll air compressor for electric vehicles, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
Scroll Air Compressor for Electric Vehicles
Products Description
| Model | NFG03ZP |
| Motor Type | IPMSM |
| Rated Motor Power | 3.0 kW |
| Rated Voltage | AC380 V |
| Rated Current | 6.5 A |
| Frequency | 225 Hz |
| Rated Speed | 2700 rpm |
| Max Discharge Pressure | 1.05 MPa |
| Nominal Displacement | 240 L/min (1.0 MPa) |
| Discharge Air Temperature | ≤80 ℃ |
| Motor Pole Number | 10 |
| Back‑EMF Coefficient | 358.7 V/(rad/s) |
| Stator Line Resistance | 0.4 Ω |
| Ld | 4.97 mH |
| Lq | 5.96 mH |
| Noise Sound Pressure Level | ≤72 dB(A) |
| Motor Phase Number | 3 |
| Motor Overload Ratio | 1.5 (≤10S) |
| Motor Insulation Resistance | ≥20 MΩ |
| Motor Insulation Class | F |
| Motor Protection Class | IP67 |
| Cooling Method | Air‑cooled |
| Ambient Operating Temperature | ‑40 ~ 55 ℃ |
| Air Outlet Thread | M22*1.5 |
| Overall Dimension (L×W×H) | 430×363×328 mm |
| Base Mounting Dimension (L×W) | 370×210 mm (M10) |
| Weight | 29 Kg |
Products Design
Products application
Products advantage
1. Truly Oil-Free Compression, Clean Air Source: The scroll compressor chamber uses no lubricating oil during the compression process, resulting in oil-free output air. This avoids issues like sludge in pipelines and dryer failure, extending the lifespan of brake valves and dryer canisters, and meeting the stringent air source requirements of vehicle braking systems.
2. Smooth Operation, Low Noise and Vibration: The scroll motion is continuous and smooth, without piston reciprocating impact. The entire unit is equipped with rubber vibration damping supports, significantly reducing operating vibration and noise, improving the overall driving and riding environment, and making it suitable for urban buses and passenger vehicles.
3. Compact Structure, Integrated Module: Highly integrated design, with the motor, main unit, cooling system, and base all integrated into one unit. Its compact size and standardized installation interfaces facilitate installation by vehicle manufacturers, reducing the number of parts and simplifying assembly processes.
4. Durable and Reliable, Low Maintenance: Fewer moving parts and fewer wear points, eliminating consumable parts such as piston rings and valve plates; no need for regular compressor oil changes, daily maintenance only requires the intake air filter, significantly reducing vehicle maintenance costs and downtime.
Related products
A piston air compressor relies on the reciprocating motion of a piston within a cylinder to change the cylinder volume and complete the intake-compression-exhaust process. It is a very mature and traditional air source device, widely used in vehicles and industries.
Products FAQ
Q1: What is the core difference between an oil-free scroll air compressor and a traditional piston air compressor?
A: Scroll compressors rely on the meshing of moving and stationary scrolls for continuous rotational compression. The compression chamber is oil-free, outputting clean, oil-free compressed air; they have lower vibration and noise levels and fewer vulnerable parts. Piston compressors rely on the reciprocating compression of a piston; most models contain oil in the compressed air, leading to rapid wear of valve plates and piston rings, and frequent maintenance. Oil-free scroll compressors are preferred for the braking systems of new energy vehicles to avoid oil clogging of dryers and brake valves.
Q2: Is it truly completely oil-free?
A: No lubricating oil participates in compression within the chamber, ensuring the output air source meets the oil-free requirements for vehicle braking. Only a small amount of grease is present in the motor bearings, which will not enter the air circuit and will not contaminate downstream pneumatic pipelines.
Q3: What are the main routine maintenance requirements?
A: Low maintenance requirements: Regularly check/replace the intake filter (the most important consumable); Regularly blow away dust and debris from the radiator surface to ensure heat dissipation; Check the base shock-absorbing pads and pipe joints for leaks or looseness; No need to add or change compressor oil.
