Air-cooled Oil-free Scroll Electric Air Compressor

If you're looking for the air-cooled oil-free scroll electric air compressor, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.



Air-cooled Oil-free Scroll Electric Air Compressor

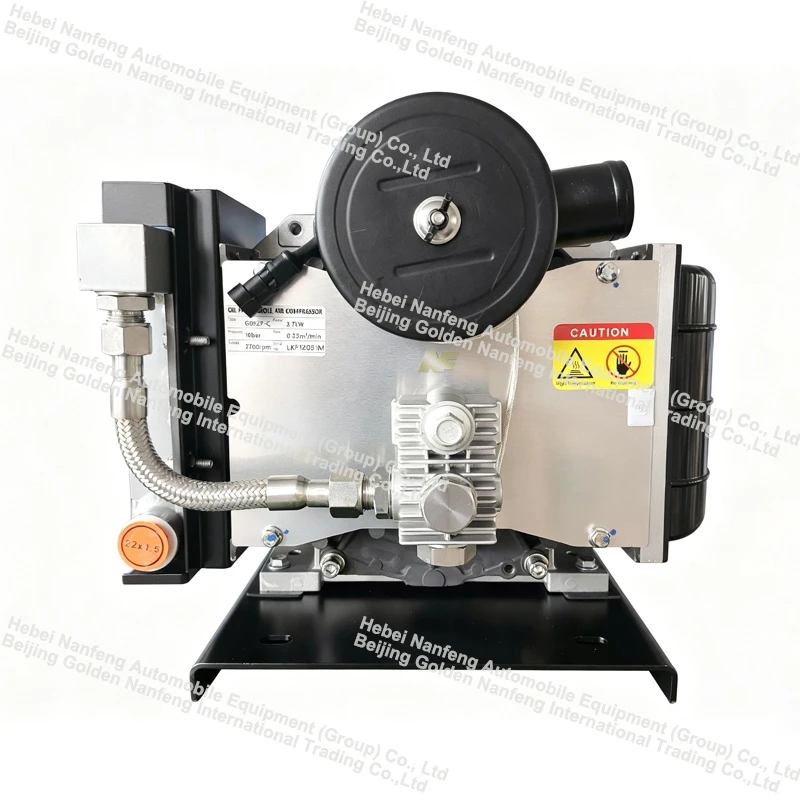

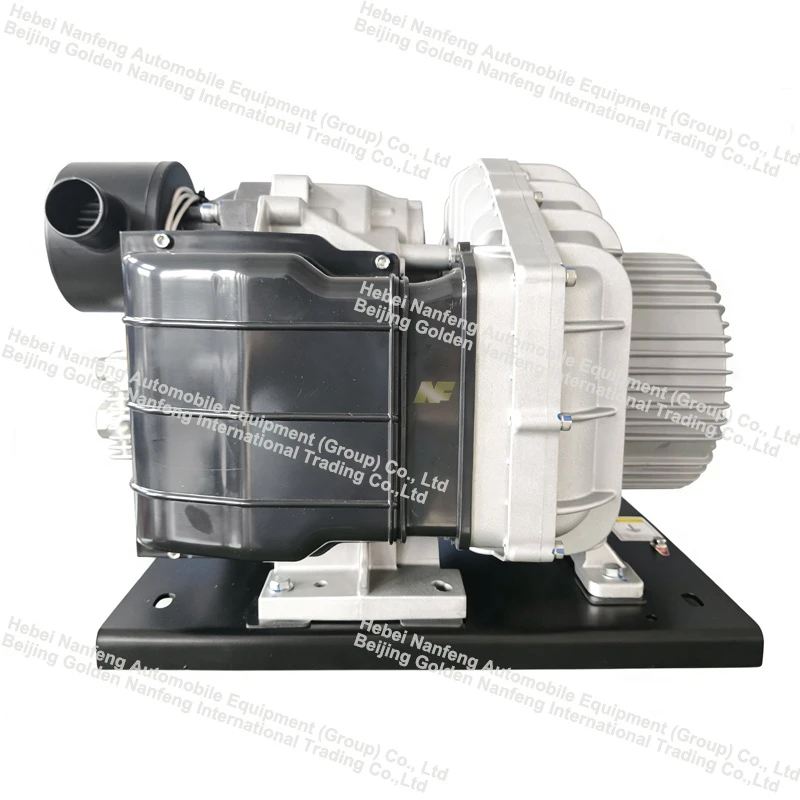

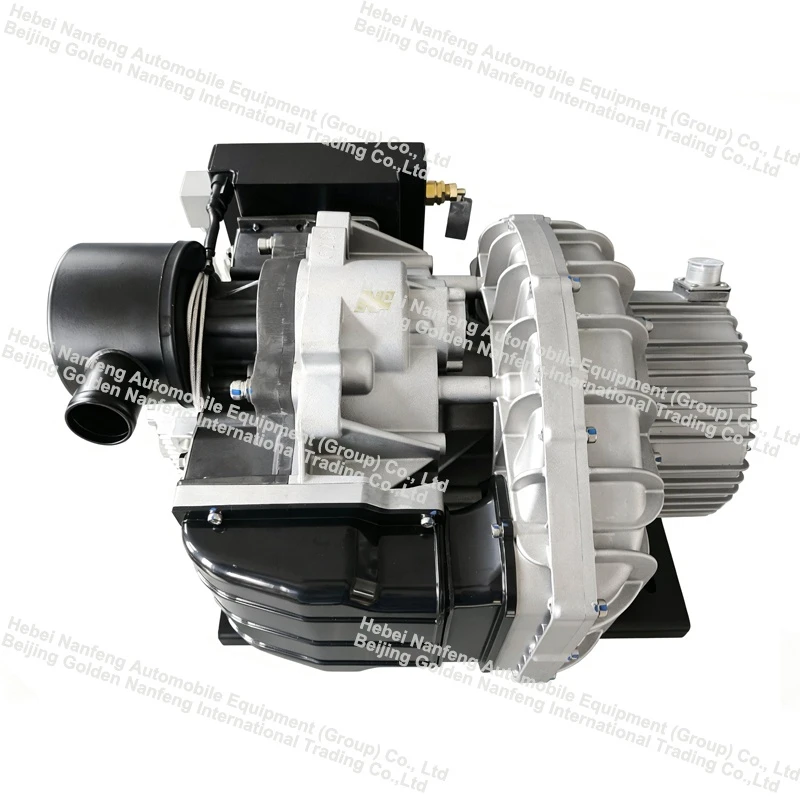

The oil-free air-cooled electric scroll air compressor is a core air-supply component for new energy commercial vehicles; it primarily supplies clean compressed air for braking systems, air suspension, and pneumatic door mechanisms, and is widely compatible with battery-electric and fuel-cell buses and heavy-duty trucks.

The core of the unit consists of a stationary scroll, an orbiting scroll, and an integrated drive motor. The orbiting scroll performs an eccentric orbital motion, meshing with the stationary scroll to form continuously varying, crescent-shaped sealed chambers; air is drawn in from the periphery, compressed in stages as the chamber volume decreases, and discharged through the central outlet. The entire compression process is lubricant-free, ensuring a truly oil-free air supply. The unit employs an air-cooling system that utilizes cooling fins and a fan to dissipate the heat generated during compression, eliminating the need for external water lines; this simplifies the vehicle's piping layout and makes the unit suitable for the complex installation environments found in vehicles.

Model	NFG03ZP
Motor type	IPMSM
Rated motor power (kW)	3
Rated voltage (V)	AC380
Rated current (A)	6.5
Frequency (Hz)	225
Rated speed (rpm)	2700
Maximum discharge pressure (MPa)	1.05
Nominal discharge capacity (L/min)	240(1.0MPa)
Discharge temperature (°C)	≤80
Motor poles	10
Back-EMF constant (V/(rad/s))	358.7
Stator winding resistance (Ω)	0.4
Ld (mH)	4.97
Lq (mH)	5.96
Sound pressure level (dB(A))	≤72
Motor phases	3
Motor overload factor	1.5 (≤10S)
Motor insulation resistance	≥20M Ω
Motor insulation class	F
Motor protection class	Ip67
Cooling method	Air Cooling
Ambient operating temperature	-40~55 ℃
Discharge outlet thread	M22*1.5
Overall dimensions (L × W × H) (mm)	430*363*328
Mounting footprint (L × W) (mm)	370*210 (M10)
Weight (kg)	29

Compared to traditional piston air compressors, this unit features fewer moving parts, delivers continuous and smooth airflow with minimal pressure fluctuation, and operates with low noise and vibration, thereby enhancing the overall driving and riding experience. It utilizes a lightweight aluminum alloy housing and a compact design, facilitating easy integration into the chassis. The motor supports variable-frequency speed control, allowing for on-demand start-stop operation to reduce energy loss and help extend the vehicle's driving range.

Its oil-free design eliminates the risk of oil leakage, preventing contamination of the brake lines and avoiding the hazard of line freezing caused by oil condensation. Requiring no routine oil or filter changes-only periodic air filter maintenance-it significantly lowers long-term upkeep costs. Capable of operating in temperatures ranging from -40°C to 60°C, it is well-suited for diverse driving conditions, including extreme cold and high heat. Thanks to its supply of ultra-clean air, high reliability, and low maintenance requirements, it has become the standard choice for pneumatic systems in heavy-duty vehicles converted from diesel to electric power.

It mainly provides clean compressed air for the pneumatic braking systems of new energy buses, logistics vehicles, and heavy trucks, and also serves as an auxiliary air source for air suspension seats, door opening and closing, horns, etc.
