Electric Vehicle Battery Management BTMS

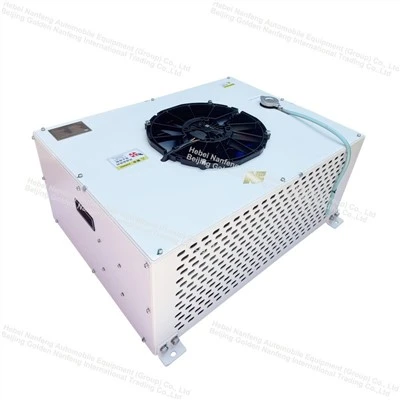

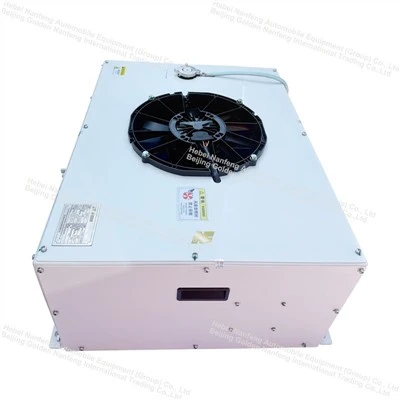

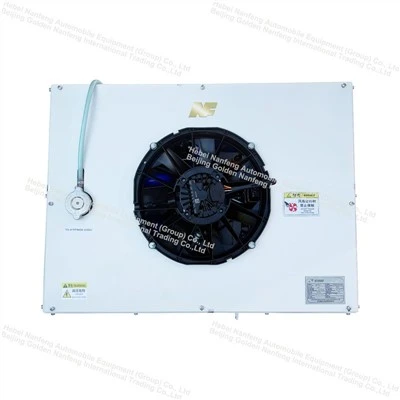

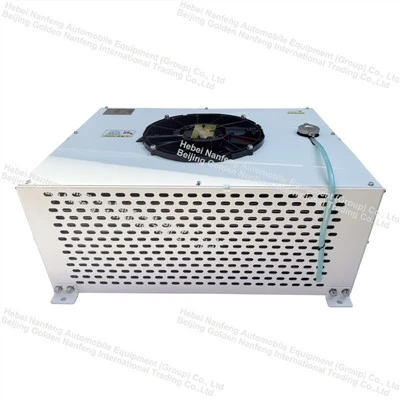

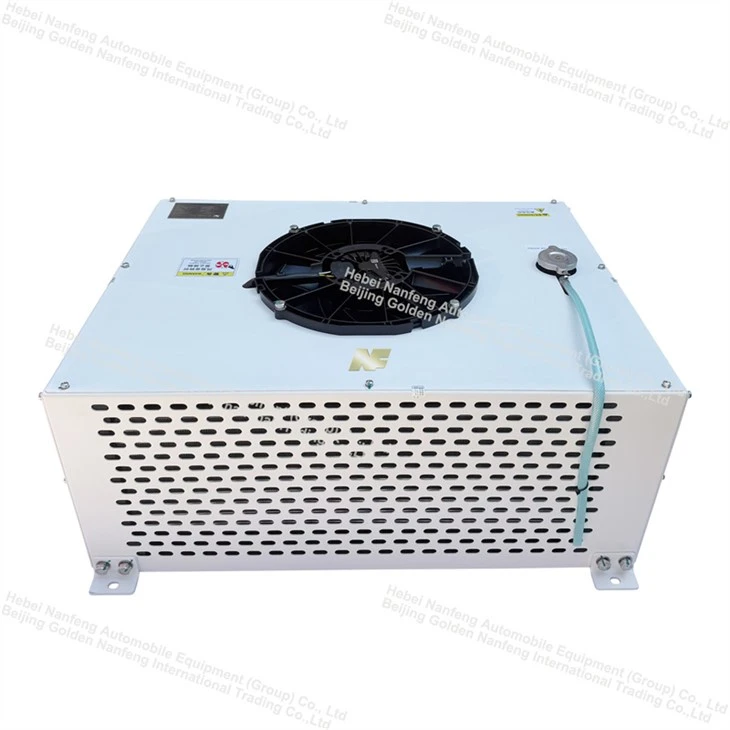

The NFEHP series thermal management unit is a system used to heat or cool the battery pack of new energy vehicles.



BTMS stands for Battery Thermal Management System. It is a comprehensive temperature-control solution for the traction batteries of new energy vehicles, typically operating in conjunction with components such as electronic water pumps, PTC electric heaters, electronic three-way valves, integrated heating-and-cooling defrosters, liquid-cooling plates, and radiators. Its primary function is to maintain the battery temperature within the optimal operating range of 25°C to 40°C, thereby addressing three critical issues: overheating at high temperatures, performance degradation at low temperatures, and excessive temperature differentials.









The system comprises four main components: a liquid-cooling circulation loop, a heating unit, an electronic control and actuation unit, and a sensor and monitoring unit. Temperature sensors monitor the temperature of each battery cell string in real time; upon data transmission to the vehicle's Battery Management System (BMS), the system automatically issues commands. At high temperatures, it activates the electric water pump and switches the electronic three-way valve to route coolant through the radiator, dissipating heat from the battery via the cooling plate. At low temperatures, it shuts off the radiator circuit, activates the high-voltage PTC heater to warm the coolant, and circulates the heated fluid to raise the battery pack's temperature. If the temperature differential exceeds limits, the system employs balanced coolant circulation to minimize the temperature variance between cells. Additionally, the system can interface with the vehicle's HVAC system, utilizing waste heat from the heat pump to assist in battery thermal management and reduce energy consumption associated with electric heating.





1	Model	NFEHP6.0-1
2	Refrigeration capacity	7KW
3	Heating capacity	8KW
4	Rated voltage	600VDC
5	Low voltage power supply	16-32VDC
6	Overvoltage protection/recovery voltage	750/730VDC
7	Undervoltage protection/recovery	400/420VDC
8	Refrigerant carrier	50%:50% Ethylene glycol/Water solution
9	Refrigerant	R134a
10	Compressor displacement	34cc
11	Working temperature	-40℃~+50℃
12	Unit protection level	IP67
13	Outer diameter of water inlet pipe	Φ20mm
14	Outer diameter of water outlet pipe	Φ20mm
15	Total mass	＜50KG
16	Communication method	CAN2.0B



• Electric Vehicles: Passenger EVs, commercial vehicles (buses, logistics trucks), new energy special vehicles (engineering vehicles, sanitation vehicles).
• Energy Storage Systems: Stationary energy storage systems (grid-side, user-side), mobile energy storage equipment.
• Industrial Equipment: High-power frequency converters, laser cutting machines, medical equipment (MRI, CT scanners).











• Certifications: Complies with ISO 45001, IATF 16949, CE, and other international standards.
• Warranty: Provides a 2-year warranty for the whole unit; free replacement of defective parts within the warranty period.
• Customization Service: Supports personalized customization of cooling/heating capacity, dimensions, communication protocols, etc., according to customer requirements.
• Global After-Sales Network: Establishes service centers in major regions around the world; provides 7×24-hour technical support, on-site maintenance, and training services.



We are committed to providing customers with reliable thermal management solutions. Contact us now to get a customized quotation and technical solution!
