PTC Coolant Heater For Hydrogen Fuel Cell TMS

If you're looking for the ptc coolant heater for hydrogen fuel cell tms, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.

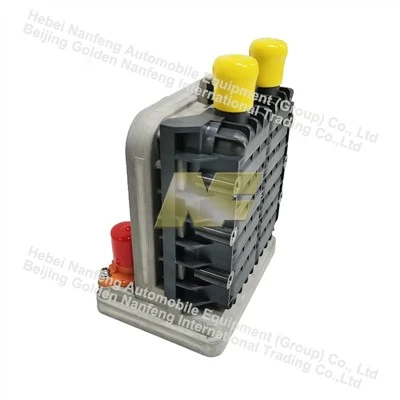

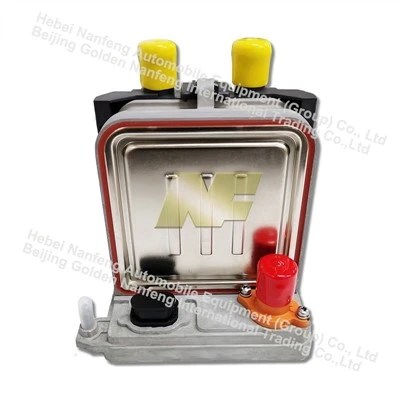

PTC Coolant Heater for Hydrogen Fuel Cell TMS





This high-performance PTC Coolant Heater is specially developed for hybrid and fuel cell vehicles, acting as the core heat source for cabin temperature control. It operates stably in both driving and parking conditions.



During operation, PTC heating elements efficiently convert electric energy into thermal energy, delivering far faster heating response than traditional engine heating systems. Besides, it supports battery thermal management by preheating batteries to their optimal working temperature, and undertakes heating loads for fuel cell start-up.



Adopting advanced PTC heating technology, this heater fully complies with passenger vehicle high-voltage safety regulations and meets strict environmental durability requirements for engine compartment components.



It is designed to replace the traditional engine waste heat and serve as an independent heating source. Powered by high-voltage electricity, the PTC heating assembly generates continuous heat and warms the circulating medium of the thermal management system through heat exchange.



-  Compact overall structure with high power density, perfectly adapting to limited vehicle installation space.
- High-temperature resistant plastic housing realizes effective thermal insulation between the bracket and vehicle body, reducing heat loss and improving overall heating efficiency.
- Optimized redundant sealing design greatly enhances product tightness and long-term operational reliability.





Temperature-power curve	Water resistance characteristic curve







Type	Condition	Minimum value	Typical value	Maximum value	Unit
Working ambient temperature		-40		85	℃
Storage temperature		-40		120	℃
Relative humidity		5		95	%
Altitude				5500	m
Medium operating temperature		-40		90	℃
Coolant capacity in housing			230		mL
Coolant specification	Glycol/Water		50/50
Overall dimension			187.1*159.3*105		mm
Weight	No coolant		2050		g
Burst pressure of water tank	Room temperature			5	bar
Input power	DC350V,10L/min,60℃	5000	5500	6000	W
Low voltage range	DC	9	12/24	32	V
Low voltage supply current	DC	40	70	150	mA
Low voltage quiescent current	Sleep state		15	100	uA
High voltage range	DC	250	350	450	V
High voltage quiescent current				2	mA
High voltage discharge time	High voltage power outage			5	s
High voltage starting impulse current	Medium temperature＜30℃			35	A
High voltage interlock function	Yes
Insulation resistance	DC1000V	100			MΩ
Insulation strength	AC1900V/60s			10	mA
Degree of protection			IP67
Contact discharge ESD				6	KV
Air discharge ESD				15	KV
Protection function	Overcurrent, short circuit, overheating, overvoltage, undervoltage and other protection functions
Temperature detection	There are temperature sensors at the water inlet and outlet positions and on the PCB
Overheat protection threshold	Coolant > 70℃, hysteresis 10℃
Communication interface	CAN
Terminal resistance	none







The electronic water pump circulates coolant from the tank through the system. In cold conditions, the PTC coolant heater warms the coolant to preheat the stack and CAC. During operation, coolant absorbs heat from the stack and CAC. The thermostat directs hot coolant to the radiator for cooling when needed. The deionizer continuously purifies the coolant to maintain high resistivity. Coolant returns to the tank to repeat the cycle.







Beijing Golden Nanfeng International Trading Co., Ltd., a subsidiary of Nanfeng Group, is a 21+ year professional auto heating & cooling system supplier in China, dedicated to delivering one-stop,high-quality climate control solutions for both ICE and electric vehicles (EVs).

We stand out with unmatched versatility and a comprehensive product portfolio covering diesel/gasoline parking heaters,high-voltage coolant heaters,electronic water pumps,battery thermal management systems, EHPS, defrosters, radiators, electric oil-free air compressors, electric air conditioning compressors, parking air conditioners, and tent heaters---ensuring.optimal comfort across all driving scenarios.

Backed by 100+ sets of advanced testing equipment and a dedicated EMC laboratory, our in-house strict quality control and professional engineering team guarantee product reliability at every production stage. Our products fully comply with European safety and environmental standards, and we have achieved large-scale production capacity to meet global demand.

Certified with IATF 16949, CE, and E-mark, we export to 40+ countries across Asia, Europe, America, and Oceania, building long-term trust with global automotive manufacturers and retailers.



Customer-centricity is at our core---we prioritize meeting your standards and demands, and warmly welcome win-win partnerships with global automotive OEMs and distributors.
