EV Coolant Heater

If you're looking for the ev coolant heater, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.



EV Coolant Heater

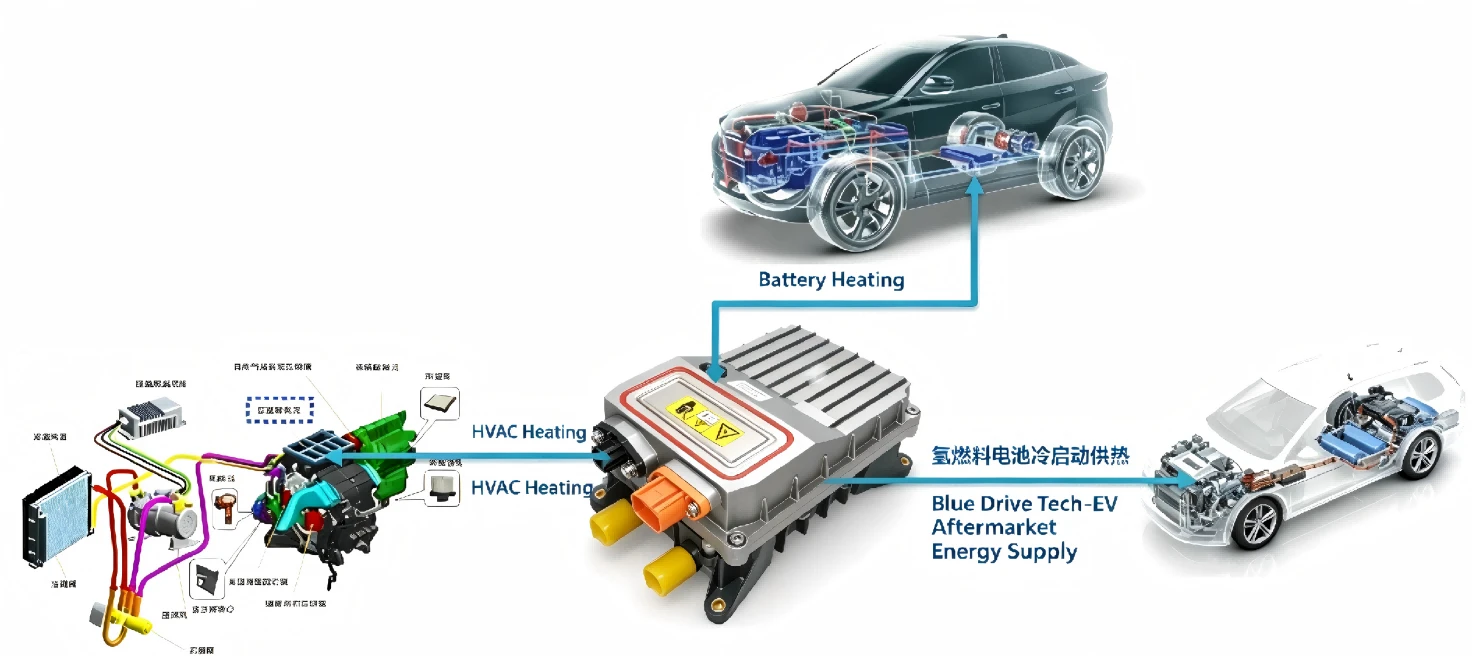

EV Coolant Heaters are used to provide heat for the air conditioning systems or battery packs of battery electric vehicles (BEVs) and hybrid electric vehicles (HEVs). They can also supply heat to other vehicle components requiring temperature regulation.



Effective thermal management is critical for maximizing the performance and driving range of modern electric and hybrid vehicles. As a smart, fail-safe liquid electric heating solution, the PTC water heater serves as a core component of vehicle thermal management systems. It heats the engine coolant to deliver stable and reliable thermal output for cabin heating and high-voltage battery thermal regulation. Featuring superior safety performance, excellent heat storage capability and seamless compatibility with vehicle HVAC systems, the water-cooled PTC heater has become the mainstream and preferred solution across the automotive industry.





NF's PTC EV coolant heater fully embodies the performance characteristics of PTC technology.

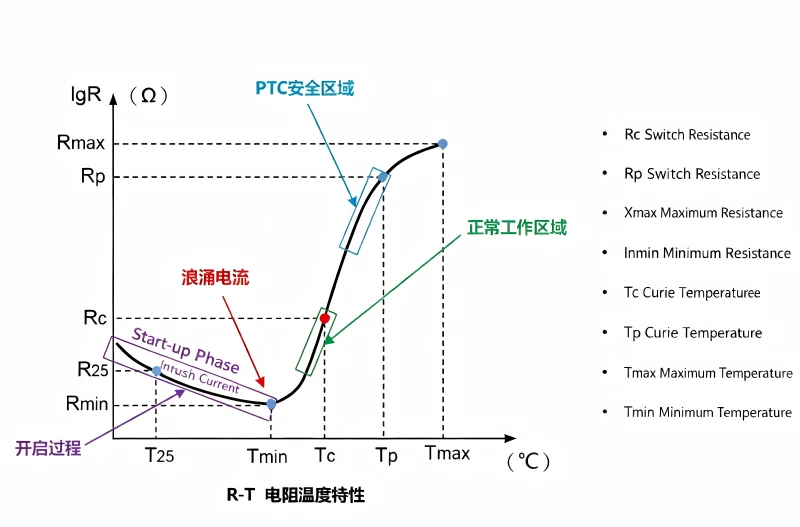

It utilizes a ceramic PTC heating element for safety and reliability and features a specialized water channel design that ensures high heat exchange efficiency.



Equipped with a fully proprietary controller, it integrates multiple functions-including water temperature protection, PCB overheat protection, overcurrent, overvoltage, and undervoltage protection, short-circuit protection, a sleep mode, and stepped power regulation-offering a user-friendly, safe, and reliable solution.

Parameter	Specification
Operating Temperature Range	-40°C ~ 85°C
Storage Temperature Range	-40°C ~ 120°C
Fluid Temperature	-40°C ~ 90°C
Fluid Type	Water: Ethylene Glycol / 50:50
Humidity Condition (RH)	5% ~ 95%
Dimensions	223.6 * 150 * 109.1 mm
Weight	≤ 3 kg
Power / kW	7 ± 10% kW @ 60°C, 10 L/min;
Burst Pressure	5 bar
Insulation Resistance (MΩ)	≥ 100 MΩ @ DC1000V
Withstand Voltage (mA)	≤ 10 mA @ AC2500V / 60s

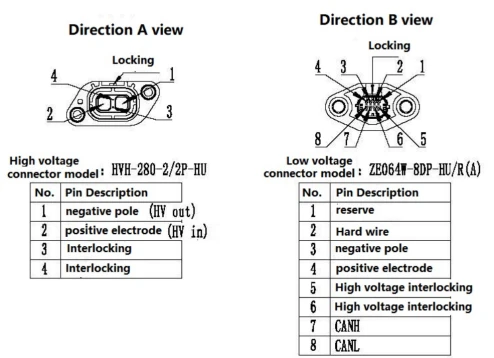

Communication Protocol	CAN
Connector IP Rating (High/Low Voltage)	IP67
Interlock Requirement	With High Voltage Interlock (Physical)
High Voltage Operating Voltage / V (DC)	450 - 750 V DC
Low Voltage Operating Voltage / V (DC)	9 - 32 V DC
Low Voltage Quiescent Current	≤ 0.1 mA
Sleep Function	Yes
Temperature Detection	Built-in temperature sensors at water inlet and outlet;
Power-off Threshold (Adjustable per customer requirements)	T_Coolant > 70°C (Hysteresis 10°C); T_PCB > 125°C (Hysteresis 15°C)

















Founded in 1993, Hebei Nanfeng Automobile Equipment (Group) Co., Ltd. currently owns six manufacturing bases. As a leading supplier of new energy vehicle components in China, we are also an officially qualified vendor for national military vehicle projects. Our comprehensive product portfolio includes high-voltage coolant heaters, EV coolant pumps, battery thermal management systems (BTMS), electric air compressors, electric power steering (EPS), electro-hydraulic power steering (EHPS), electric automotive air-conditioning compressors, three-way valves, parking heaters, parking air conditioning units and a full range of supporting automotive components. The company has obtained ISO/TS 16949 automotive quality system certification and sustains continuous investment in research and development to adapt to evolving market and technical requirements. In addition to standardized products, we provide customized PTC heater solutions tailored to diverse customer needs, alongside supporting water pumps and electronic valves to deliver complete integrated system packages. We sincerely welcome global customer inquiries and are ready to offer professional, all-round technical and product support.



Q1. What is your packing term?
A: We generally adopt neutral packaging with white inner boxes and brown outer cartons. For customers with legally registered patents and upon receipt of official authorization letters, we can support customized branded packaging.
Q2. What is your payment term?
A: 100% T/T payment in advance.
Q3. What delivery terms do you support?
A: We support multiple international shipping terms, including EXW, FOB, CFR, CIF ,DAP and DDP.
Q4. Can you manufacture products according to customer samples or drawings?
A: Yes. We are capable of custom manufacturing based on customers' samples and technical drawings, and we can develop corresponding molds and tooling fixtures for mass production.
Q5. What is your sample policy?
A: Samples are available if in stock. Customers shall bear the sample cost and international courier freight.
Q6. Do you conduct product testing before delivery?
A: Absolutely. All products undergo 100% full inspection and testing before shipment to ensure qualified quality.
Q7. How do you maintain long-term and stable cooperative relationships with customers?
A: First, we adhere to strict quality control and offer competitive pricing to guarantee maximum benefits for our partners, which has earned consistent positive feedback from global customers. Second, we treat every customer sincerely and equally, focusing on trustworthy long-term cooperation regardless of regional differences.
